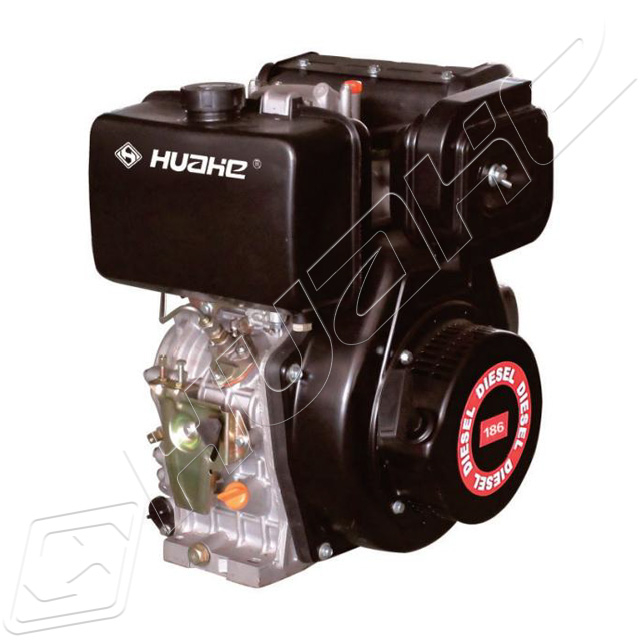

HH186F Heavy-Duty Vertical Diesel Engine

Product Features

·High-Torque 418cc Powerplant: The large 86mm bore and 72mm stroke create a 418cc displacement, generating a powerful 6.3kW (8.5HP) maximum output. This extra displacement translates to higher torque reserves, allowing the engine to handle sudden load spikes without bogging down .

· Industrial-Grade Fuel Efficiency: Despite its power, the 186F is engineered for economy. The direct injection system and optimized combustion chamber keep fuel consumption below 270g/kW·h, significantly lowering operating costs during long work cycles .

· Extended Runtime & Large Capacity: Equipped with a 5.5-liter fuel tank, this engine is designed for long shifts. You can work continuously for approximately 3 hours under load without the need for frequent refueling stops, boosting productivity on large job sites .

· Robust & Durable Construction: Weighing in at 50kg, the 186F is built with thicker castings and heavy-duty internal components. This robust construction ensures longevity, stability, and reliable performance even under the stress of continuous, high-load operation.

· Flexible Starting in Any Condition: The 186F accommodates user preference with dual starting options. The Kickback Manual Start provides a simple, mechanical backup, while the Electric Start system (optional) offers effortless, key-operated convenience, particularly valuable in cold weather or for operators with physical limitations.

Competitive Advantages

While the HH178F is an excellent light-duty engine, the 186F is designed for a different class of work. Here is how it compares to standard 178F/80F class engines and its key differentiators.

Pain Point Solutions

·Problem: Standard small engines (5-6HP) struggle to power large industrial equipment or handle heavy loads.

 · Solution: The 186F provides a significant power upgrade with its 418cc displacement and 8.5HP max output. It offers the high torque reserve required to start large generators under load or run high-pressure pumps efficiently without stalling .

· Problem: High fuel consumption on long workdays eats into profits for commercial users.

 · Solution: With a rated fuel consumption of <270g/kW·h, this engine is among the most efficient in its power class. It maximizes work output per liter of fuel, directly improving the bottom line for businesses that rely on daily engine operation.

· Problem: Frequent refueling interrupts workflow, especially in remote locations.

 · Solution: The generous 5.5-liter fuel tank minimizes downtime. Operators can focus on the task for approximately 3 hours, a significant improvement over standard 3.5-liter tanks found on smaller engines .

· Problem: Lightweight engines vibrate excessively or lack stability when mounted on heavy equipment.

 · Solution: The 186F's substantial 50kg weight provides inherent stability. This mass helps dampen operational vibrations, leading to less operator fatigue, reduced stress on the mounted equipment, and a longer overall lifespan .
