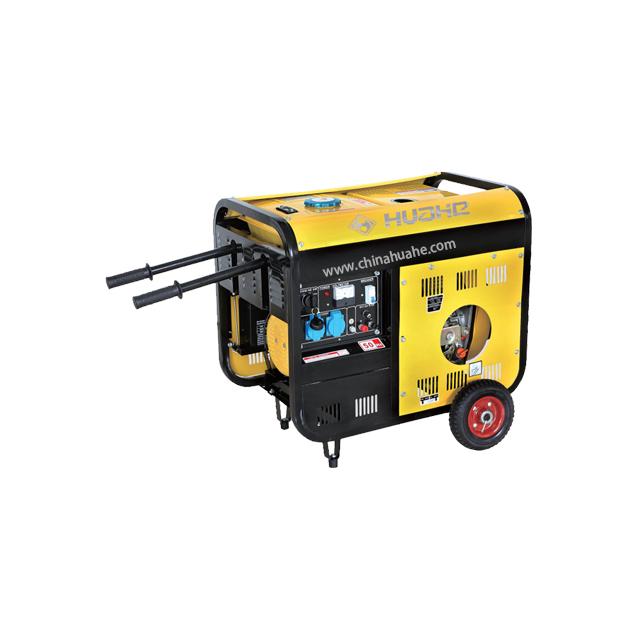

Model | Economical type |
5GF |
Generator | Type | Revolving field type 2 pole generator |
Frequency (Hz) | 50 | 60 |
Cont. Output (KW) | 4.2 | 5 |
Voltage (A.C)(V) | 230 | 240 (120) |
Current (A.C)(A) | 18.3 | 20.8 (41.7) |
Engine speed (r/min) | 3000 | 3600 |
Phase | Single phase |
Power factor (COSΦ) | 1 |
Excitation system | Controlled constant self-excitation |
D.C output V/A | 12V/8.3A |
Operation capacity | 12 hour constant operation |
Coupling pattern | Straight shaft coupling |
Model | 186FG |
Engine | Type | Direct injection vertical, 4-cycle, air-cooled diesel engine |
Displacement cc (cu.in) | 406(24.78) |
Max. output (KW/rpm) | 6.6 | 7.35 |
Cont. output (KW/rpm) | 5.9 | 6.6 |
Starting system | Recoil start/ Electric start |
Governor system | Centrifugal weight system |
Fuel | Diesel light fuel (BS-AL or equivalent) |
Fuel tank capacity (L) | 5.5L |
Lube oil capacity (L) | 1.65 |
Bore×Stroke | 86×70 |
Protection system | Low oil, warning system/Stop device (not for L-series) |
Unit | Noise level at 7m dB (A) | 85 |
Dimension (L×W×H) (mm) | 745×480×615 |
Dry weight (kg) | 95 |
