Name: 2-Ton Diesel Forklift – Efficient Logistics & Outdoor Handling Solution
Brand: HuaHe
Rating: 5.0 (71 reviews)

Product Overview

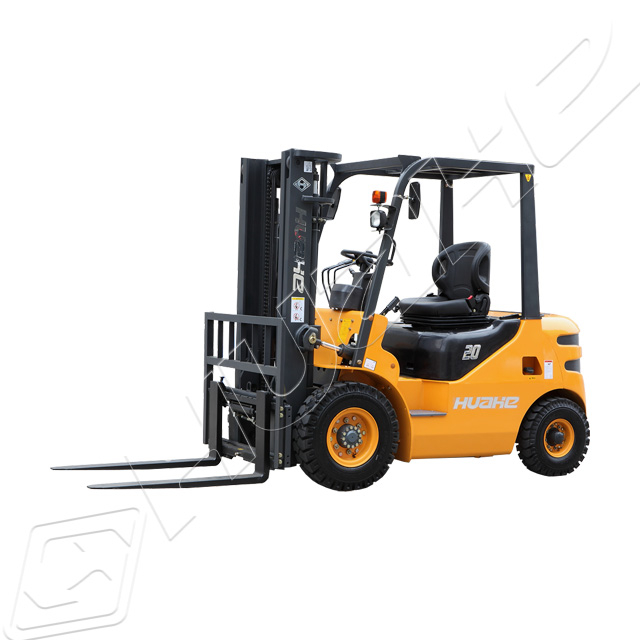

The HH20(Z) 2-ton diesel forklift by Huahe is engineered for medium-to-heavy-duty logistics and outdoor operations. Ideal for ports, warehouses, and logistics centers, it delivers powerful performance, reliability, and adaptability in challenging environments.

FAQ
Q1: Is this forklift suitable for dock or port use?
A: Yes. Its high ground clearance, gradeability, and corrosion-resistant design make it ideal for outdoor environments like docks and ports.
Q2: What is the maintenance interval for this forklift?
A: Routine maintenance is recommended every 500 hours. The modular engine and hydraulic system simplify servicing.
Q3: Can forks or attachments be customized?
A: Yes, we offer customized forks and attachments for specific operational requirements.

Product Specification

Generals	Model	UNIT	HH20(Z)	HH20(Z)
	Power Type		Diesel	Diesel
	Rated Capacity	kg	2000	2000
	Load Center	mm	500	500
Dimensions	Lift Height	mm	3000	3000
	Fork Size(LWT)	mm	107012040	107012040
	Fork Outside Spread(Min./Max.)	mm	245/1030	245/1030
	Mast Tilt Range(F/R)	deg	6/12	6/12
	Front Overhang	mm	480	480
	Length to face of fork(without fork)	mm	2500	2500
	Length to face of fork(with fork)	mm	3570	3570
	Length to face of fork(wheel width)	mm	1160	1160
	Mast lowered height	mm	2050	2050
	Mast ectended height	mm	4000	4000
	Overhead guard height	mm	2150	2150
	Turning radius	mm	2320	2320
Performance	Travel speed(unload/full load)	km/h	20/18.5	20/18.5
	Lift speed(unload/full load)	mm/s	510/450	510/450
	Max.gradeability	%	20	20
	Self weight	kg	3700	3700
Wheel&Tires	Tires(Front)		7.00-12-12PR	7.00-12-12PR
	Tires(Rear)		6.00-9-10PR	6.00-9-10PR
	Tread(Front)	mm	970	970
	Tread(Rear)	mm	980	980
	Wheelbase	mm	1650	1650
	Min.ground clearance(unload/load) Mast	mm	160/140	160/140
	Min.ground clearance(unload/load) Frame	mm	150/130	150/130
Drive units	Battery	v/ah	12/90	12/90
	Engine Model		C240	4D27G31
	Engine Rated output	km/r.p.m	35.4/2500	36.8/2500
	Engine Rated torque	n.m/r.p.m	139/1800	156/1700-1900
	Engine Displacement	cc	2369	2670
	Engine No.of cylinder		4	4
	Engine Bore*stroke	mm	90*100	90*105
	Transmission Model		Hydraulic	Hydraulic
	Transmission Shift(FWD/RVS)		1/1	2/2
	Operating pressure	mpa	17.5	17.5

Features & Highlights

1. Powerful Performance
· Equipped with a high-efficiency diesel engine (C240/490BPG-262), delivering 35.4-40 kW rated power and high torque at low speeds (139-148 N·m @ 1800 rpm) for frequent starts and slope operations.
2. High Efficiency in Lifting & Travel
· Lifting speed of 510 mm/s (unloaded) and travel speed of 18.5 km/h (loaded) for enhanced productivity.
3. Superior Maneuverability
· Minimal turning radius of 2320 mm and right-angle aisle width of 1910 mm for operation in tight spaces and containers.
4. Enhanced Stability & Adaptability
· Ground clearance of 150 mm (unloaded) and wheelbase of 1650 mm for stability on rough terrain.
5. Safety & Reliability
· Mast tilt angle of 6°/12° and hydraulic steering for safe and effortless control.

Comparative Advantages

Feature	HH20Z Diesel Forklift	Ordinary 2-ton Diesel Forklift
Engine	Genuine Japanese C240/490BPG-262	Domestic/Unknown Brand
Gradeability	20%	15-18%
Turning Radius	2320 mm	2500-2600 mm
Lifting Speed	510 mm/s	400-450 mm/s

Market Advantages

· Efficient Power System: Diesel engine and hydraulic transmission ensure high-intensity operation.
· Excellent Stability: Full-load gradeability and travel speed ensure stable performance in complex conditions.
· Brand-Engine Assurance: Renowned engine brand enhances reliability and user trust.
· Wide Applicability: Suitable for logistics, warehousing, ports, and multiple other scenarios with huge market potential

Pain Point Solutions

· Issue: Rough outdoor terrain with poor passing ability of ordinary forklifts.
Solution: High ground clearance and reinforced tires easily handle complex terrain.
· Issue: Narrow warehouse aisles and difficult turning.
Solution: Small turning radius and right-angle aisle design improve space utilization.
· Issue: High fuel consumption and noise from diesel engines.
Solution: Optimized engine combustion efficiency balances power and environmental performance.
