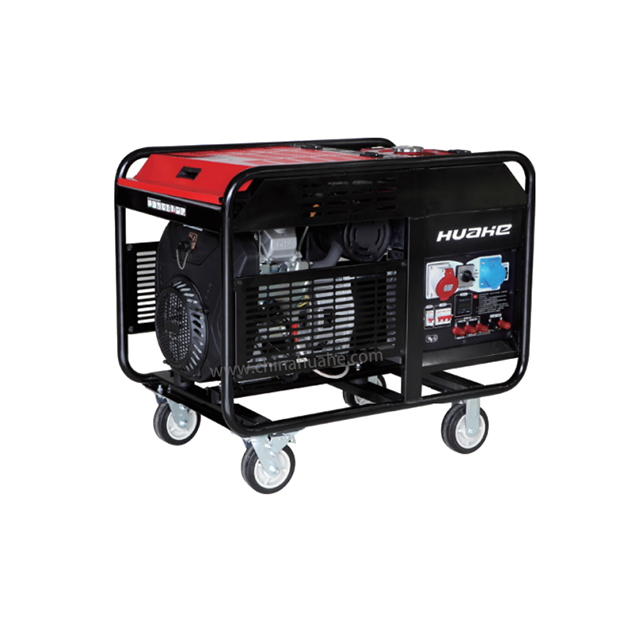

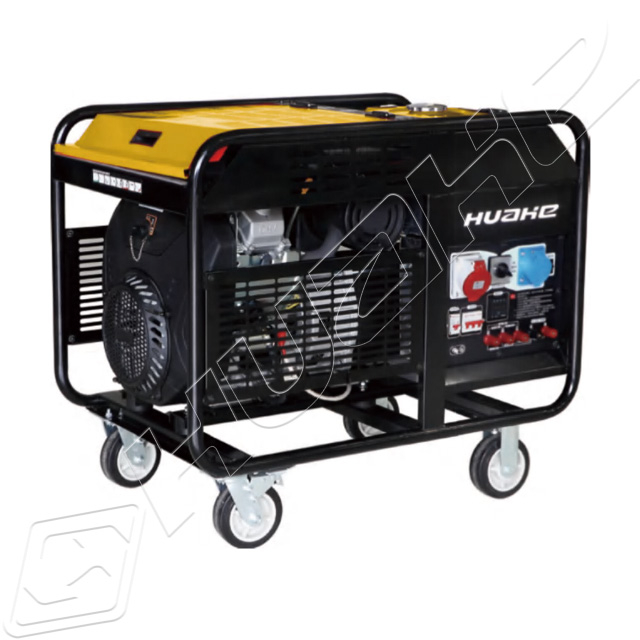

15000 Watt Powerful Electric Start Portable Gasoline Generator

Specification

Our products have a one-year warranty period (prerequisite: in case of unintentional damage)

Feature

Output Voltage: 220 V or 380 V — How to Specify

The HH22000ET is a single-phase generator. The rated voltage of 220 V / 380 V represents two customizable output configurations — not simultaneous dual-voltage output.

220 V is standard across most residential and light commercial markets in Europe, Asia, Africa, and Oceania — the correct specification for single-phase tool circuits, lighting loads, and standard socket outlets.

380 V single-phase is used in specific industrial single-phase load applications and certain market infrastructure configurations.

Before submitting an inquiry: confirm the voltage at your site's distribution panel or the nameplate voltage of your highest-rated load equipment.

Why V-Twin at 15 kW: The Engineering Logic

Single-cylinder engines dominate the sub-10 kW portable generator market on manufacturing cost grounds. At 15 kW rated output, the engineering equation shifts.

The HH2V90F distributes 999 cc of displacement across two cylinders in a V-configuration. Each cylinder handles approximately half the combustion load of a single-cylinder engine producing equivalent output. The result: lower peak cylinder pressure per firing event, lower thermal stress per cylinder, and a more balanced mechanical load on the crankshaft bearings throughout the duty cycle.

The overhead valve (OHV) architecture positions the valvetrain directly above the combustion chamber. This geometry shortens the flame travel path from spark plug to cylinder wall, supporting more complete combustion at each firing event — a measurable structural advantage over side-valve designs under sustained high load.

Forced air cooling in an open-frame configuration draws airflow directly across the cylinder fins via the engine-mounted fan, with no enclosure to trap heat. For sustained operation at 90% load — the condition under which the documented 4.5-hour runtime is measured — do not obstruct the fan intake side during operation.

ISO 8528 G1 & THD ≤ 3%: What It Means for Your Load

The HH22000ET's AC output is rated to ISO 8528 G1 with a waveform distortion rate of ≤ 3% THD.

ISO 8528 G1 covers general-purpose loads where moderate voltage and frequency regulation is acceptable: construction tools, standard motor loads, lighting circuits, water pumps, and general commercial equipment.

THD ≤ 3% at the generator terminals is compatible with the supply requirements of most variable-frequency drives (VFDs, typically specify < 5% THD at input), standard UPS systems (typically < 10% THD), and PLC control panels (typically < 5% THD).

Note: if your application requires ISO 8528 G2 or G3 regulation — precision medical equipment, broadcast-grade power, or metrology-class loads — verify your load specification against this unit's G1 classification before purchase.

Runtime and Fuel Planning

The specification sheet documents a runtime of 4.5 hours at 90% load, equivalent to 13.5 kW of continuous draw. This is a manufacturer-recorded figure under controlled test conditions.

Fuel tank capacity is not listed in the published specification. Buyers planning extended site operation should request the tank volume from Huahe to calculate refuelling intervals before finalising deployment schedules. At loads below 90%, runtime will extend beyond the documented figure; no manufacturer data is available to quantify this for the HH22000ET.

For 8-hour or 12-hour continuous shift applications at near-rated load, plan for at least one mid-shift refuelling.

Roller Frame and Site Mobility

The HH22000ET is built on a welded open steel frame with four-wheel casters mounted at the base corners. At 223 kg net weight across a 1050 × 715 mm footprint, the roller chassis enables flat-surface repositioning by a two-person crew without mechanical lifting equipment.

Deployment notes:

• Flat prepared surfaces: roller chassis is sufficient; no additional equipment required

• Uneven terrain, ramps, or steps: mechanical lifting required; unit weight exceeds manual carry safety limits

• Confined spaces: the open-frame forced air-cooled design requires unobstructed airflow clearance on all sides — confirm minimum clearance distances for your installation before positioning
