3.5 Ton Gasoline/LPG 4-wheel Forklift
Home » All Products » Forklift » LPG Forklift » 3.5 Ton Gasoline/LPG 4-wheel Forklift

loading

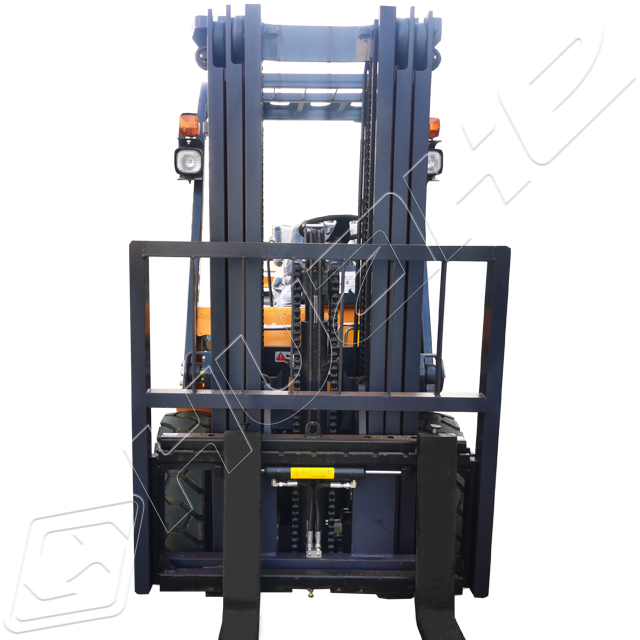

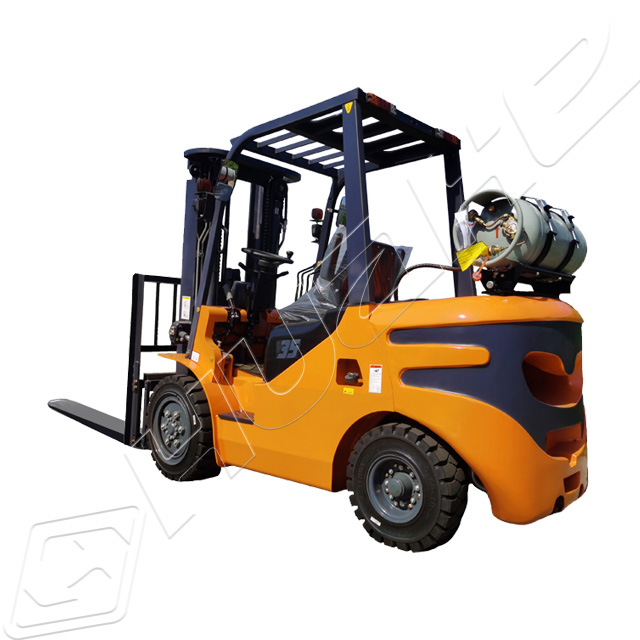

3.5 Ton Gasoline/LPG 4-wheel Forklift

A 3.5 Ton Gasoline/LPG 4-wheel Forklift,which have a wide range of applications and can be used in a variety of indoor and outdoor workplaces.
  • Lift Height(full load):3000 mm
  • Lift Speed(unload/full load):510mm/s/450mm/s
  • Travel Speed(unload/full load):20 Km/h/18.5Km/h
  • Max.gradeability:20%
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • HH35(Z)

  • HuaHe

Product Overview

Designed for extreme heavy-duty applications, this 3.5-ton gasoline/LPG dual-fuel forklift delivers industry-leading load capacity and exceptional operational stability. Featuring a specially calibrated K25 engine system, it maintains consistent 37.4kW power output even under maximum load conditions. The innovative dual-fuel architecture provides more economical operation, perfectly adapting to various demanding environments. With a 2725mm overall length (without forks) and carefully calculated wheelbase parameters, it achieves outstanding maneuverability while ensuring superior load-bearing performance, making it the preferred choice for ports, steel and building material handling, and heavy manufacturing sectors.


FAQ

Q1: Can this forklift operate on slippery surfaces?
A1:
Yes. Professional tire tread design and adequate ground pressure maintain excellent traction on slippery roads.
Q2: Is steering difficult when fully loaded?
A2:
Not at all. The hydraulically optimized steering system maintains light handling even at full capacity.
Q3: Which fuel mode is more economical?
A3:
Generally LPG mode offers lower operating costs, depending on local fuel prices and operational intensity.
Q4: Does this equipment require special operator certification?
A4:
We recommend specific training for high-capacity forklift operation to ensure workplace safety.
Q5: How is the load capacity at maximum lifting height?
A5:
The 3500kg rated capacity is maintained throughout the standard lifting range, ensuring operational efficiency.



Product Specification


Model  UNIT HH30 (Z)
Power Type  - Gasoline/LPG
Rated Capacity  kg 3500
Load Centre  mm 500
Lift Height  mm 3000
Free Lift Height  mm 115
Fork Size (L*W*T) mm 1220x122x45
Fork Spread                    Min./Max.  mm 240/1100
Mast Tilt Range (F/R) Deg 6/12
Total Weight  kg 4500
Front Overhang  mm 500
Overall dimensions Length to Face of Fork (without fork)               mm 2725
Length to Face of Fork (with fork)  mm 3945
Wheel Width  mm 1225
Mast Lowered Height  mm 2080
Mast Extended Height  mm 4200
Overhead Guard Height  mm 2150
Turning Radius  mm 2510
Min. Right Angle Aisle Width  mm 2200
Travel Speed (unload/full load)  km/h 20/18.5
Lift Speed (unload/ full load)  km/h 510/450
Max. Gradeability  % 20
Tires  Front  - 28×9-15-12PR
Rear  - 6.50-10-10PR
Tread  Front  mm 1000
Rear  mm 980
Wheelbase  mm 1700
Min. Ground Clearance               Frame (unload/ full load)              mm 145/135
Mast (unload/ full load)              mm 160/150
Battery  v/ah 12/80
Engine                                                Model  - K25
Rated Output  kw/r.p.m 37.4/2300
Rated Torque  n.m/r.p.m 171.2/1600
Displacement  cc 2488
No. of Cylinder  - 4
Bore×Stroke  mm 89*100
Transmission                                     Type  - Hydraulic
Shift (FWD/RVS)  - 1/1
Operating Pressure  mpa 17.5


Product Features

· Exceptional Load Capacity: 3500kg rated capacity with industrial-grade reinforced chassis for extreme operations

· Intelligent Fuel Management: Smart switching between gasoline and LPG optimizes total cost of ownership
· Enhanced Power System: Specially tuned K25 engine ensures stable power delivery under heavy loads
· Superior Maneuverability: 2510mm turning radius and 2200mm right-angle aisle width provide remarkable agility for large-capacity equipment
· Comprehensive Safety: Reinforced mast structure and standard overhead guard create complete protection system
· Professional Configuration: 28×9-15-12PR front tires and 6.50-10-10PR rear tires specifically engineered for heavy-duty use


Competitive Advantages

Aspect HH30(Z) Diesel Electric
Load Capacity 3500kg Typically 3200-3500kg Max ≤3000kg
Power Solution Gasoline & LPGsmart switching only Diesel only Electric
Energy Efficiency High fuel adaptability and efficiency ratio High fuel consumption Rapid battery degradation
Application Range Excellent adaptability to extreme conditions Standard conditions only Strict environmental requirements
Value Return Significant whole-life cost advantage Continuously high operating cost Substantial initial investment


Pain Point Solutions

· Challenging heavy-load handling? → 3500kg rated capacity meets most super-heavy material handling needs


· Poor maneuverability of large equipment? → Precision steering system ensures agile handling even when fully loaded


· Insufficient stability for intensive operations? → Reinforced chassis and suspension guarantee consistent stable performance


· Poor adaptability to special conditions? → Professional tire configuration and ground clearance adapt to complex environments
