Product Overview

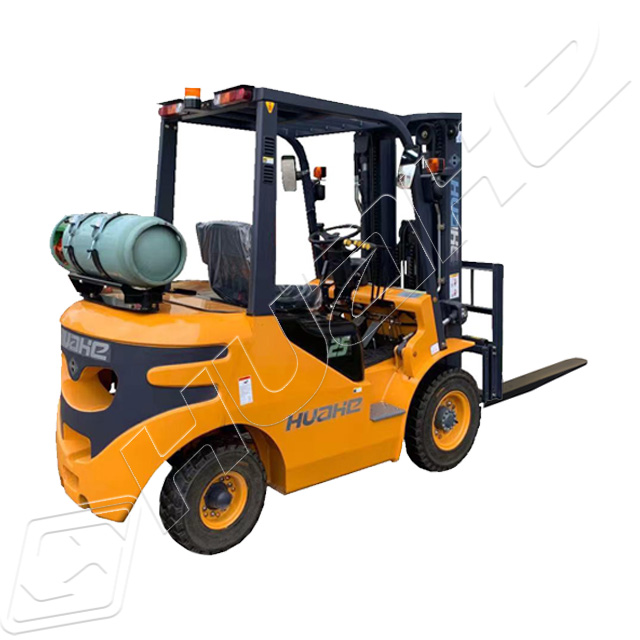

The 2.5-ton Gasoline/LPG dual-fuel forklift is a high-performance internal combustion truck engineered for medium-to-heavy duty applications. Powered by the efficient K25 engine with 37.4kW rated output, it delivers robust power and superior gradeability. Featuring a flexible dual-fuel system that operates on both gasoline and LPG, it ensures cost-effectiveness and environmental adaptability for diverse indoor and outdoor operations. With a lifting height of 3000mm and a compact turning radius, it excels in confined spaces, making it an ideal choice for logistics, warehousing, construction, and manufacturing sectors.

FAQ

Q1: Is this forklift suitable for indoor use?
A1: Absolutely. LPG offers clean combustion and low noise, ideal for both indoor and outdoor environments.
Q2: Are the forks adjustable?
A2: Yes, fork spread adjusts from 240mm to 1040mm to accommodate various pallet sizes.
Q3: Does it include an overhead guard?
A3: Yes, an overhead guard is standard with a height of 2150mm for operator protection.
Q4: What is the maximum load capacity?
A4: The rated capacity is 2500kg with a load center of 500mm.
Q5: Can I switch fuels during operation?
A5: Yes, the system allows quick switching between gasoline and LPG without interrupting workflow.

Product Specification

	1	Model			UNIT	HH25 (Z)
Generals	2	Power Type			-	Gasoline/LPG
	3	Rated Capacity			kg	2500
	4	Load Centre			mm	500
	5	Lift Height			mm	3000
	6	Free Lift Height			mm	110
	7	Fork Size (LWT)			mm	1070x120x40
	8	Fork Spread		Min./Max.	mm	240/1040
	9	Mast Tilt Range (F/R)			Deg	6/12
	10	Total Weight			kg	4000
Characteristic&Dimensions	11	Front Overhang			mm	480
	12	Overall dimensions	Length to Face of Fork (without fork)		mm	2570
	13		Length to Face of Fork (with fork)		mm	3640
	14		Wheel Width		mm	1160
	15		Mast Lowered Height		mm	2050
	16		Mast Extended Height		mm	4000
	17		Overhead Guard Height		mm	2150
	18	Turning Radius			mm	2380
	19	Min. Right Angle Aisle Width			mm	2000
Performance	20	Travel Speed (unload/full load)			km/h	20/18.5
	21	Lift Speed (unload/ full load)			km/h	510/450
	22	Max. Gradeability			%	20
Wheel & Tires Power	23	Tires		Front	-	7.00-12-12PR
	24	Tires		Rear	-	6.00-9-10PR
	25	Tread		Front	mm	970
	26	Tread		Rear	mm	950
	27	Wheelbase			mm	1650
	28	Min. Ground Clearance		Frame (unload/ full load)	mm	150/140
	29	Min. Ground Clearance		Mast (unload/ full load)	mm	160/150
	30	Battery			v/ah	12/80
	31	Engine		Model	-	K25
	32			Rated Output	kw/r.p.m	37.4/2300
	33			Rated Torque	n.m/r.p.m	171.2/1600
	34			Displacement	cc	2488
	35			No. of Cylinder	-	4
	36			Bore×Stroke	mm	89*100
	37	Transmission		Type	-	Hydraulic
	38	Transmission		Shift (FWD/RVS)	-	1/1
	39	Operating Pressure			mpa	17.5

Product Features

· Dual-Fuel Operation: Switch seamlessly between gasoline and LPG to cut fuel costs and enhance operational flexibility
· High-Performance Engine: K25 engine delivers 37.4kW power, 171.2N·m torque, and 20% max gradeability
· Optimized Efficiency: Travel speed reaches 20km/h unloaded; lifting speed 510mm/s unloaded
· Superior Maneuverability: Min. turning radius of 2380mm and right-angle aisle width of 2000mm for tight spaces
· Safety Design: Mast tilts 6°/12°, equipped with a standard overhead guard
· Ergonomic Layout: 110mm free lift height facilitates low-clearance and container handling

Competitive Advantages

Aspect	HH25(Z)	Diesel Forklifts	Electric Forklifts
Load Capacity	2500kg	Usually 2000-2300kg	Generally lower
Fuel Option	Gasoline & LPG	Diesel only	Electric only
Power Output	37.4kW, 171.2N·m torque	Often lower	Battery-dependent
Application	Indoor & outdoor	Mostly outdoor	Mostly indoor
Cost Efficiency	Lower fuel cost, easy maintenance	Higher diesel cost	High battery replacement

Pain Point Solutions

· Heavy load requirements? → 2500kg rated capacity handles medium-to-heavy loads with ease
· Tight working aisles? → Compact turning radius and 2000mm right-angle aisle width enable smooth operation in narrow spaces
· Insufficient lifting height? → Mast extends to 4000mm for medium-to-high stacking tasks
· Underpowered equipment? → K25 engine ensures strong performance for climbing and loading

2.5 Ton Gasoline/LPG 4-wheel Forklift
