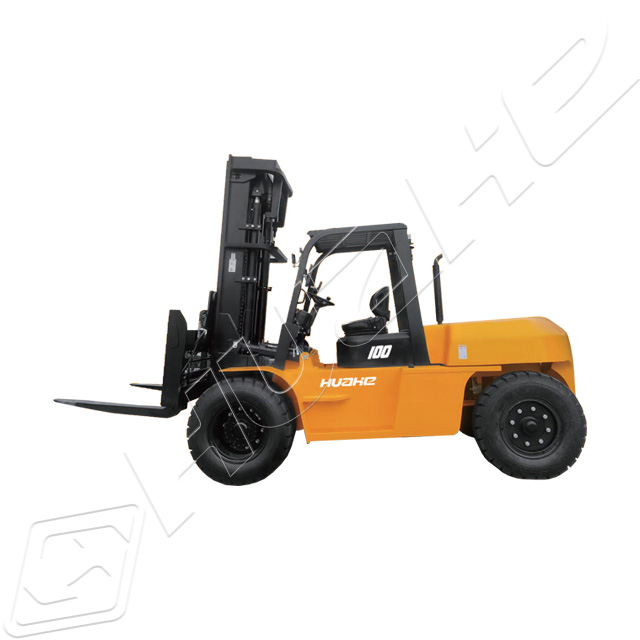

The HH100Z represents a premium 10-ton diesel forklift solution engineered for extreme heavy-duty applications. Powered by the efficient CA4DF3-12GcG3U engine, this model achieves industry-leading standards in load capacity, stability, and operational efficiency, making it ideally suited for port container handling, steel metallurgy, and large equipment manufacturing sectors.
FAQ
Q1: What is the maximum lifting height of the HH100Z? A1: Mast extended height reaches 4335mm with lowered height of 2830mm, meeting most high-level stacking requirements. Q2: How many cylinders does the engine have? A2: Equipped with 4-cylinder CA4DF3 engine, 4752cc displacement, generating 85kW at 2200rpm. Q3: How does maneuvering performance compare under full load? A3: 3970mm turning radius with 3540mm right-angle aisle width demonstrates excellent agility for a 10-ton forklift. Q4: Is container operation supported? A4: Yes, 2830mm mast lowered height suits standard container operations. Please consult our technical team for specific applications.
Product Overview
The HH100Z represents a premium 10-ton diesel forklift solution engineered for extreme heavy-duty applications. Powered by the efficient CA4DF3-12GcG3U engine, this model achieves industry-leading standards in load capacity, stability, and operational efficiency, making it ideally suited for port container handling, steel metallurgy, and large equipment manufacturing sectors.
FAQ
Q1: What is the maximum lifting height of the HH100Z? A1: Mast extended height reaches 4335mm with lowered height of 2830mm, meeting most high-level stacking requirements. Q2: How many cylinders does the engine have? A2: Equipped with 4-cylinder CA4DF3 engine, 4752cc displacement, generating 85kW at 2200rpm. Q3: How does maneuvering performance compare under full load? A3: 3970mm turning radius with 3540mm right-angle aisle width demonstrates excellent agility for a 10-ton forklift. Q4: Is container operation supported? A4: Yes, 2830mm mast lowered height suits standard container operations. Please consult our technical team for specific applications.
Product Specification
1
Model
UNIT
HH100Z
Generals
2
Power Type
-
Diesel
3
Rated Capacity
kg
10000
4
Load Center
mm
600
5
Lift Height
mm
3000
6
Free Lift Height
mm
230
7
Fork Size (L*W*T)
mm
1820×175×85
8
Fork Outside Spread (Min./Max.)
mm
350/2460
9
Mast Tilt Range (F/R)
deg
6/6
10
Total Weight
kg
12700
Characteristic&Dimensions
11
Front overhang
mm
740
12
Overall dimensions
Length to Face of Fork (without fork)
mm
4280
13
Length to Face of Fork (with fork)
mm
5800
14
Wheel Width
mm
2170
15
Mast Lowered Height
mm
2830
16
Mast Extended Height
mm
4335
17
Overhead Guard Height
mm
2510
18
Turning Radius
mm
3970
19
Min. Right Angle Aisle Width
mm
3540
Performance
20
Travel Speed (unload/full load)
km/h
30/24
21
Lift Speed (unload/ full load)
mm/s
340/270
22
Max. Gradeability
%
20
Wheel & Tires Drive units
23
Tires
Front
-
9.00-20-14PR
24
Rear
-
9.00-20-14PR
25
Tread
Front
mm
1516
26
Rear
mm
1660
27
Wheelbase
mm
2800
28
Min. Ground Clearance
Frame (unload/ full load)
mm
305
29
Mast (unload/ full load)
mm
230
30
Battery
v/ah
2×12/80
31
Engine
Model
-
CA4DF3-12GCG3U
32
Rated Output
kw/r.p.m
85/2200
33
Rated Torque
n.m/r.p.m
460/1300-1700
34
Displacement
cc
4752
35
No. of Cylinder
-
4
36
Bore×Stroke
mm
110×125
37
Transmission
Type
-
Hydraulic
38
Shift (FWD/RVS)
-
2/2
39
Operating Pressure
mpa
18
Product Specification
1
Model
UNIT
HH100Z
Generals
2
Power Type
-
Diesel
3
Rated Capacity
kg
10000
4
Load Center
mm
600
5
Lift Height
mm
3000
6
Free Lift Height
mm
230
7
Fork Size (L*W*T)
mm
1820×175×85
8
Fork Outside Spread (Min./Max.)
mm
350/2460
9
Mast Tilt Range (F/R)
deg
6/6
10
Total Weight
kg
12700
Characteristic&Dimensions
11
Front overhang
mm
740
12
Overall dimensions
Length to Face of Fork (without fork)
mm
4280
13
Length to Face of Fork (with fork)
mm
5800
14
Wheel Width
mm
2170
15
Mast Lowered Height
mm
2830
16
Mast Extended Height
mm
4335
17
Overhead Guard Height
mm
2510
18
Turning Radius
mm
3970
19
Min. Right Angle Aisle Width
mm
3540
Performance
20
Travel Speed (unload/full load)
km/h
30/24
21
Lift Speed (unload/ full load)
mm/s
340/270
22
Max. Gradeability
%
20
Wheel & Tires Drive units
23
Tires
Front
-
9.00-20-14PR
24
Rear
-
9.00-20-14PR
25
Tread
Front
mm
1516
26
Rear
mm
1660
27
Wheelbase
mm
2800
28
Min. Ground Clearance
Frame (unload/ full load)
mm
305
29
Mast (unload/ full load)
mm
230
30
Battery
v/ah
2×12/80
31
Engine
Model
-
CA4DF3-12GCG3U
32
Rated Output
kw/r.p.m
85/2200
33
Rated Torque
n.m/r.p.m
460/1300-1700
34
Displacement
cc
4752
35
No. of Cylinder
-
4
36
Bore×Stroke
mm
110×125
37
Transmission
Type
-
Hydraulic
38
Shift (FWD/RVS)
-
2/2
39
Operating Pressure
mpa
18
Key Features & Highlights · Exceptional Load Capacity: 10,000kg rated capacity at 600mm load center addresses the most demanding material handling requirements · Advanced Power System: CA4DF3 engine delivers 460N·m peak torque across 1300-1700rpm range, offering superior low-speed performance · Specialized Fork Design: 1820×175×85mm oversized forks with 2460mm maximum outside spread accommodate extra-wide loads · Enhanced Stability: 12,700kg unladen weight, 2800mm wheelbase, and 740mm front overhang ensure absolute stability under heavy loads · Optimized Performance: 340/270mm/s lifting speeds and 30/24km/h travel speeds balance efficiency with operational safety
Competitive Advantages
· Superior Torque Characteristics: 460N·m peak torque maintained across 1300-1700rpm range delivers exceptional heavy-load starting capability · Reinforced Structural Design: 2170mm widened chassis with 1516/1660mm track width provides best-in-class stability · Heavy-Duty Tire Configuration: 9.00-20-14PR large tires significantly enhance load capacity and service life · Unique Mast System: 6°/6° front/rear tilt angles with 2830mm lowered height adapt to high-clearance working environments
