Pressure Washer Troubleshooting Matrix: Symptom-to-Root-Cause Engineering Guide

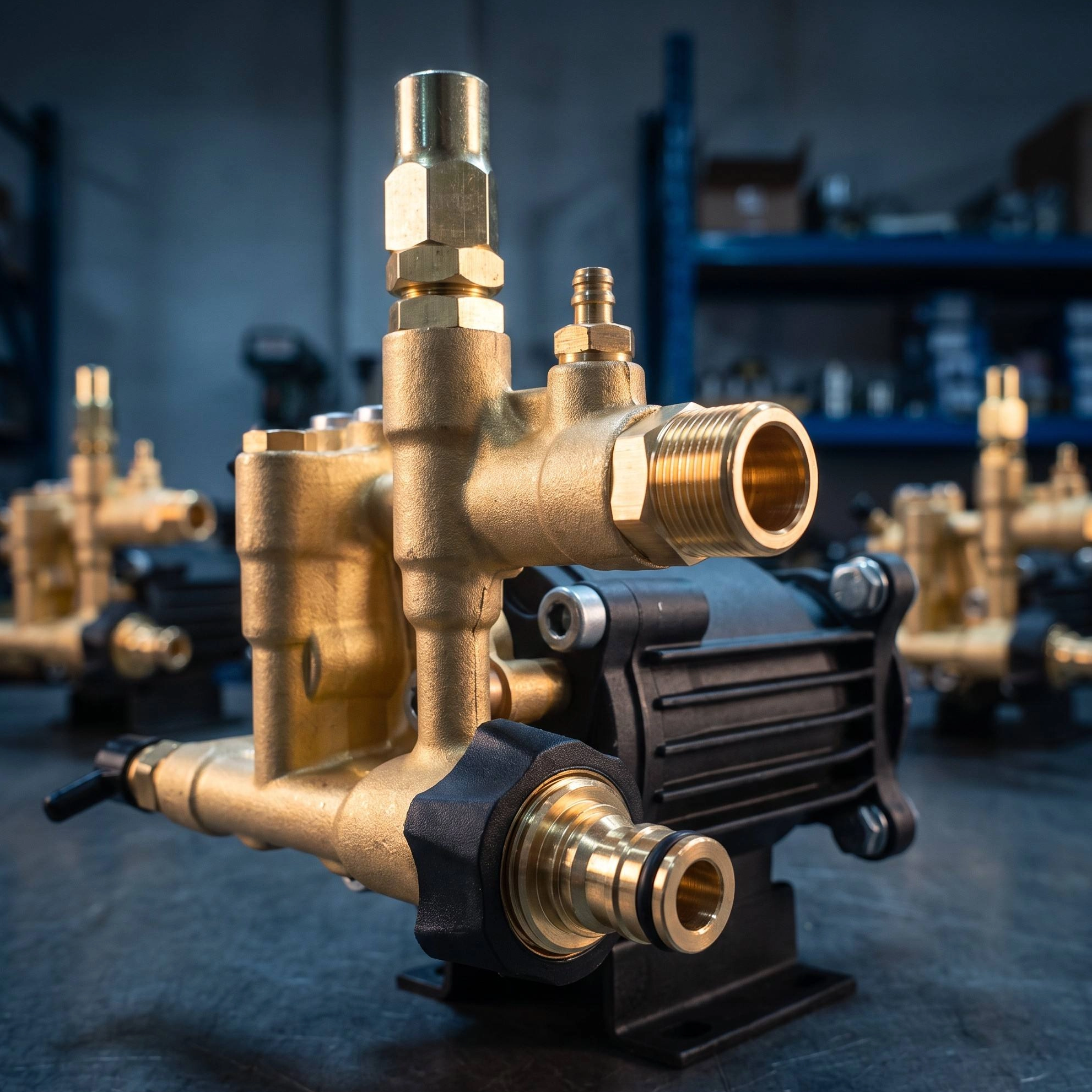

Technical Overview: The Logic Behind Hydraulic Failures

In commercial cleaning operations, equipment downtime directly translates into billable hour losses and customer penalties. When a machine fails on site, operators often misdiagnose the problem—assuming pump death when the fault is simply hydraulic starvation, or blaming the engine when unloader valve pressure entrapment stalls the recoil assembly.

A high-pressure washer operates on a closed mechanical-hydraulic loop: Inlet Volume (GPM) →→ Mechanical Pressurization (Crankshaft/Plunger) →→ Pressure Regulation (Unloader/Bypass) →→ Fluid Acceleration (Orifice Restrictor).

A failure at any single node cascades through the system. This guide provides an engineering-grade diagnostic matrix to isolate root causes in under ten minutes, detailing field fixes, preventative thresholds, and pump rebuild economics.

1. Symptom Diagnosis & Decision Tree

Use this systematic matrix to identify the underlying failure before disassembling internal components:

2. Deep-Dive Root Cause Mechanics

Fault Mechanism A: Hydraulic Starvation & Cavitation Physics

Cavitation is the single most destructive event inside positive-displacement pumps. When inlet supply (GPM) drops below pump displacement requirements:

1. Negative atmospheric pressure develops inside the brass manifold suction chamber.

2. Water boils at ambient temperature, producing microscopic vapor pockets.

3. Upon entering the compression stroke, these pockets collapse under thousands of PSI.

4. Micro-implosions release kinetic shockwaves directly against internal brass surfaces and ceramic plungers, gouging metal and fracturing ceramic rods.

Supply Deficit ──> Negative Pressure Chamber ──> Vapor Pocket Formation ──> Plunger Stroke Shockwave ──> Pitted Manifolds & Shattered Ceramics

• Preventative Metric: Ensure water feed volume exceeds pump rating by a minimum of 20% (e.g., a 4.0 GPM pump requires at least 4.8 GPM dynamic flow at the faucet).

Fault Mechanism B: Thermal Accumulation in Unloader Bypass

When an operator releases the spray gun wand without powering down the motor, the unloader valve shifts high-pressure fluid into an internal loop.

• Within 90 to 120 seconds, friction created by the spinning plungers raises water temperature beyond 60∘C (140∘F)60∘C (140∘F).

• Overheated fluid softens polyurethane water seals, deforms Teflon packings, and cracks ceramic plunger sleeves via thermal shock.

• While the Thermal Relief Valve (TRV) acts as a failsafe by ejecting boiling water, repeated activation indicates operator misuse that degrades seal longevity.

Trigger Released ──> Continuous Internal Recirculation ──> Fluid Friction Temp Surge (>60°C) ──> Melted V-Packings & Warped Valves

Fault Mechanism C: Nozzle Orifice Calibration Errors

Water propelled under extreme pressure acts as a micro-abrasive stream. Over 40–80 operating hours, microscopic mineral particulates erode the spray nozzle orifice diameter.

• A worn nozzle bore expands the exit area, dropping working pressure while flow volume remains unchanged.

• Conversely, installing an undersized nozzle forces the unloader into premature bypass mode, overheating the engine and slipping drive belts.

• Diagnostics: If pump pressure drops while engine RPM remains at factory spec (3,400–3,600 RPM for gas units), replace the nozzle with a certified orifice size before touching the pump unloader.

3. Step-by-Step Field Repair Procedures

                       STEP 1: Depressurize Hydraulic System
                                        │
                                        ▼
                       STEP 2: Inspect & Verify Inlet Volume
                                        │
                     ┌──────────────────┴──────────────────┐
                     ▼                                     ▼
        [Pressure Drops / Surging]               [Fluid & Oil Leaking]
                     │                                     │
                     ▼                                     ▼
       Inspect Spray Nozzle & Filters        Examine Oil Sight Glass Color
                     │                                     │
         ┌───────────┴───────────┐             ┌───────────┴───────────┐
         ▼                       ▼             ▼                       ▼
    [Debris Found]         [Clean Tip]     [Milky White]         [Clear Oil]
         │                       │             │                       │
         ▼                       ▼             ▼                       ▼
     Flush Tip             Check Unloader  Full Seal Kit &      Retighten Sump
                          & Check Valves  Plunger Overhaul      or Replace O-Ring

Procedure 1: Unloader Valve Overhaul & Tuning

1. Depressurize the System: Turn off the power plant, shut off water supply, and depress the trigger to release trapped line pressure.

2. Remove the Valve Cartridge: Unscrew the brass adjustment knob, relieve spring tension completely, and use a box wrench to unthread the hex body.

3. Inspect Internal O-Rings: Examine the bypass seat and stainless-steel ball for pitting, lime scale scaling, or torn Viton backup rings.

4. Reassembly & Dynamic Calibration: Apply marine-grade dielectric grease to dynamic seals. Thread the assembly back into the manifold. Start the engine with trigger engaged; tighten the adjustment spring clockwise until working pressure stabilizes, ensuring spike pressure upon trigger release does not exceed operating pressure by more than 10%.

Procedure 2: Crankcase Seal and V-Packing Rebuild

1. Drain Contaminated Lubricant: Extract the bottom drain bolt; flush emulsified oil with light mineral flushing fluid if water ingress occurred.

2. Detach Manifold Head: Remove the four or eight heavy-duty Allen bolts holding the brass manifold to the aluminum crankcase. Slide the manifold straight forward off the ceramic plungers.

3. Inspect Plunger Integrity: Check for hairline cracks on the ceramic sleeves. Scored, cracked, or loose plungers must be replaced along with copper crush washers.

4. Reseat Packings: Extract old high-pressure and low-pressure seal assemblies using an internal seal extractor tool. Install new brass scrapers, V-rings, and O-rings oriented with the dynamic sealing lips facing the high-pressure water chamber.

4. Seasonal Winterization & Preventative Maintenance Protocol

Freeze-thaw expansion is the primary cause of split manifolds and fractured valve chambers during winter storage. Follow this preventive schedule:

┌────────────────────────────────────────────────────────────────────────┐
│               COMMERCIAL PREVENTATIVE MAINTENANCE INTERVALS             │
├───────────────────┬────────────────────────────────────────────────────┤
│ Operating Hours   │ Required Service Action                            │
├───────────────────┼────────────────────────────────────────────────────┤
│ Daily (Pre-Run)   │ Clean inlet water strainer; check oil sight glass  │
│ 50 Hours (Break-in)│ Initial crankcase oil drain and refill (SAE 15W-40)│
│ Every 200 Hours   │ Swap crankcase lubricant; examine unloader O-rings │
│ Every 500 Hours   │ Replace complete valve kit & plunger V-packings    │
│ Seasonal (Winter) │ Pump fluid evacuation + Antifreeze/Pump Saver fill │
└───────────────────┴────────────────────────────────────────────────────┘

3-Step Anti-Freeze Preservation SOP:

1. Drain Retained Water: Disconnect high-pressure hoses and let the pump turn over for no more than 3–5 seconds to eject loose water.

2. Introduce Lubricating Antifreeze: Attach a short hose adapter with a funnel to the pump inlet. Pour non-toxic RV propylene glycol pump saver solution into the intake.

3. Cycle Till Color Appears: Slowly pull the engine starter cord or briefly jog the electric motor until colored fluid discharges from the high-pressure outlet port, coating internal seals and check-valve springs.

5. Architectural Benchmark: Axial Cam vs. Industrial Triplex Plunger

Purchasers and facility managers must distinguish between light-duty utility pumps and commercial continuous-duty platforms:

   Wobble / Axial Cam Pump (Consumer)             Triplex Ceramic Plunger Pump (Industrial)
   ┌─────────────────────────────────────┐         ┌─────────────────────────────────────┐
   │ • Fixed swashplate design           │         │ • Heavy-duty forged crankshaft      │
   │ • Direct drive @ 3400 RPM (High heat│         │ • Ceramic plungers & brass manifold │
   │ • Sealed crankcase (No oil changes) │         │ • External unloader + bypass port   │
   │ • Non-rebuildable / Disposable      │         │ • Fully rebuildable / Re-packable   │
   │ • Expected Lifespan: 150-300 Hours  │         │ • Expected Lifespan: 2,500+ Hours   │
   └─────────────────────────────────────┘         └─────────────────────────────────────┘

6. Commercial Sourcing & Fleet Specification

For equipment importers, hire depots, and contractors, chronic field breakdowns highlight the need for upgraded hardware specifications:

1. Insist on Solid Ceramic Plungers: Unlike ceramic-coated stainless steel rods that crack under heat cycles, solid ceramic plungers dissipate thermal stress without flaking into the packing seals.

2. Select Low-Speed Gearbox or Belt-Driven Configurations: Reducing pump speed from engine RPM (3,600 RPM) to 1,450–1,750 RPM cuts seal friction and internal vibration by more than 50%, quadrupling packing life.

3. Verify Thermal Overload & Low-Oil Interlocks: Factory-installed low-oil safety switches prevent catastrophic engine seizure, while external unloader valves allow easy bypass line integration to bulk supply tanks for zero-heat continuous circulation.

Explore Huahe's complete lineup of commercial-grade cleaning hardware:

• Review our standard platforms: Huahe Heavy-Duty Pressure Washers

• Specialize for demanding work: Commercial & Industrial Triplex Cleaning Systems

• Partner with engineering: Huahe OEM/ODM Pressure Washer Manufacturing Solutions

FAQ: Professional Operator Troubleshooting

Q: Why does my pressure washer pump pulse rapidly when water is spraying?

A: Rapid pulsation is almost always caused by an obstructed or damaged check valve inside the manifold head, or by air being drawn through a loose inlet hose fitting. Unscrew the valve caps, clean any lodged sand or calcium scale from the six internal valves (three intake, three discharge), and inspect valve O-rings for cuts.

Q: Can I run hot water into a standard cold-water pressure washer pump?

A: No. Standard pumps are engineered for fluid temperatures below 40∘C (104∘F)40∘C (104∘F). Pumping hot water causes rapid seal degradation, breaks down internal packing lubricants, and leads to immediate cavitation. Hot-water cleaning requires specialized high-temperature heat-resistant seals or dedicated burner-equipped systems.

Q: How do I know whether my unloader valve or my spray tip is causing low pressure?

A: Check the pressure gauge or bypass behavior. If the pressure drops upon pulling the trigger, remove the high-pressure tip and run the washer in open-flow mode. If the stream volume is robust and unobstructed, thread in a brand-new, correctly sized nozzle tip. If pressure immediately returns, the old nozzle was worn out. If pressure remains low and water continuously bypasses into the unloader return line, the unloader valve seat is stuck or eroded.

Q: What causes oil to turn milky white in the pump crankcase?

A: Milky oil indicates water has crossed the barrier between the wet manifold and the dry crankcase. This occurs when high-pressure water seals fail and water escapes past the plunger oil seal. When this happens, drain the oil immediately, replace all water seals, oil seals, and ceramic plungers, and refill with non-detergent ISO VG 100 / SAE 30 pump oil.
