HHPW170-A1
HuaHe
Product Overview

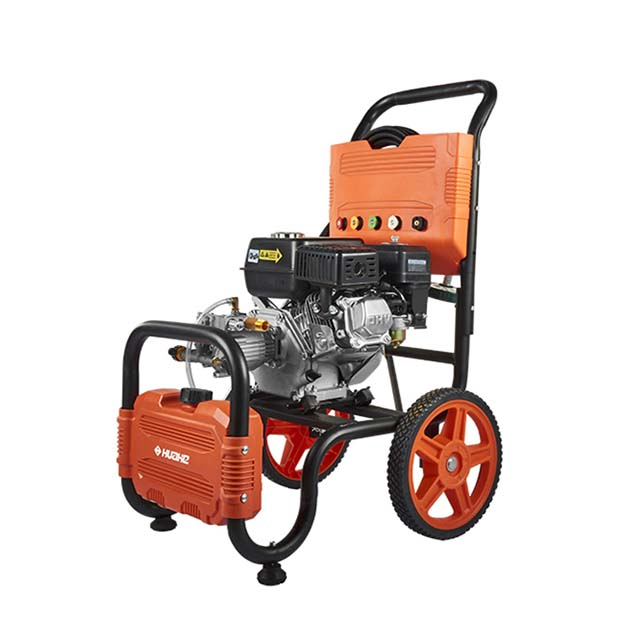

The HHPW170-A1 gasoline high-pressure cleaner, developed and produced by Huahuo Heavy Industry Co., Ltd., is an industrial-grade device specifically designed for high-intensity cleaning scenarios. Equipped with the HH170F-1 gasoline engine (7.0HP) and an axial piston pump, it offers an ultra-high pressure output of 20Mpa (2900psi) and a flow rate of 8.3L/min, capable of quickly removing stubborn oil stains, concrete deposits, and more. The compact design (625×410×640mm) and lightweight body of 30KG make it suitable for mobile operations, while the 3.6L large fuel tank supports continuous operation, meeting the cleaning challenges in various scenarios such as construction sites, farms, and municipal areas where no power supply is available.
As an integrated industrial and trading enterprise, Huahe provides technical customization, certification support, and agile supply chain services to trade partners, helping global distributors seize the market for high-pressure cleaning equipment.
Product Overview
The HHPW170-A1 gasoline high-pressure cleaner, developed and produced by Huahuo Heavy Industry Co., Ltd., is an industrial-grade device specifically designed for high-intensity cleaning scenarios. Equipped with the HH170F-1 gasoline engine (7.0HP) and an axial piston pump, it offers an ultra-high pressure output of 20Mpa (2900psi) and a flow rate of 8.3L/min, capable of quickly removing stubborn oil stains, concrete deposits, and more. The compact design (625×410×640mm) and lightweight body of 30KG make it suitable for mobile operations, while the 3.6L large fuel tank supports continuous operation, meeting the cleaning challenges in various scenarios such as construction sites, farms, and municipal areas where no power supply is available.
As an integrated industrial and trading enterprise, Huahe provides technical customization, certification support, and agile supply chain services to trade partners, helping global distributors seize the market for high-pressure cleaning equipment.
MODEL | HHPW170-A1 |
Horse Power | 7.0HP |
Flow | 8.3(L/min) |
Rated Pressure | 18Mpa(2600psi) |
Max Pressure | 20Mpa(2900psi) |
Displacement | 212CC |
Pump Type | Axial pump |
Engine Type | HH170F-1 |
Engine Speed | 3600(RPM) |
Ambient | 0℃-60℃ |
Engine oil capacity | 0.6L |
Fuel tank capacity | 3.6L |
Fuel Type | Gasoline |
Gross Weight | 30KG |
Dimension | 625x410x640mm |
Our products have a one-year warranty period (prerequisite: in case of unintentional damage)
MODEL | HHPW170-A1 |
Horse Power | 7.0HP |
Flow | 8.3(L/min) |
Rated Pressure | 18Mpa(2600psi) |
Max Pressure | 20Mpa(2900psi) |
Displacement | 212CC |
Pump Type | Axial pump |
Engine Type | HH170F-1 |
Engine Speed | 3600(RPM) |
Ambient | 0℃-60℃ |
Engine oil capacity | 0.6L |
Fuel tank capacity | 3.6L |
Fuel Type | Gasoline |
Gross Weight | 30KG |
Dimension | 625x410x640mm |
Our products have a one-year warranty period (prerequisite: in case of unintentional damage)
Product Core Features
1. Powerful Engine System
212cc displacement HH170F-1 gasoline engine, 3600RPM high-speed output, 7.0HP power, capable of handling heavy-duty cleaning tasks.
Cold start design (operable in 0°C to 60°C environments), ensuring stable operation in extreme cold and hot conditions.
2. Ultra-High Pressure Axial Pump Technology
Axial piston pump provides a rated pressure of 18Mpa and a peak pressure of 20Mpa, extending the pump's lifespan by 50% compared to ordinary centrifugal pumps.
8.3L/min high flow rate, increasing cleaning efficiency by 35% compared to models with a 6.5L/min flow rate.
3. Professional Engineering Design
0.6L oil capacity + triple filtration system, reducing engine wear;
Shock-resistant metal frame + corrosion-resistant spray gun, passing a 30KG heavy load test.
4. Optimized for Mobile Scenarios
- Gasoline-powered, free from power source limitations, 3.6L fuel tank provides up to 2.5 hours of operation, suitable for field, high-altitude, and vehicle-mounted applications.
Competitor Comparison Highlights
(Differentiation Advantages)
Parameter | HHPW170-A1 | Ordinary Cleaning Machine (Same Level) |
Maximum Pressure | 20Mpa (2900psi) | 15-16Mpa |
Flow Rate | 8.3L/min | 5.0-6.5L/min |
Pump Type | Axial Piston Pump | Centrifugal Pump/Spiral Vane Pump |
Engine Brand | Self-developed HH170F-1 | General OEM Engine |
Cold Start Capability | Supports (from 0℃) | Usually above 5℃ |
Custom Service | Supports | Does Not Support |
Market Advantage
1.Direct supply from integrated industrial and trading enterprise
Huahe Heavy Industry is an integrated enterprise for research and development, production and trade. It has established partnerships with over 30 global trading companies and provides FOB/CIF logistics support as well as a localized after-sales network.
2.Customized supply chain capabilities
Supports OEM/ODM orders, and can adjust pressure parameters and safety certifications (CE/ISO9001, etc.) for regional markets.
3.Outstanding cost-effectiveness ratio
The axial pump structure reduces failure rates, and the maintenance cost is 40% lower than that of competing products; 1-year whole machine warranty + core component extended warranty.
Application scenarios
Field | Typical scenarios | Equipment compatibility explanation |
Industry | Removing oil and dirt from construction machinery, cleaning workshop floors | 20Mpa high-pressure removable and cured concrete grease |
Agriculture | Disinfection in livestock farms, cleaning of agricultural machinery | Gas-powered adaptation for electric farms without power supply |
Municipal | Rinsing of garbage stations, removal of urban graffiti | Lightweight body for easy mobile operation in vehicles |
Commerce | Oil stain removal in parking lots, cleaning of building exteriors | 8.3L/min flow rate to enhance cleaning efficiency for large areas |
