HH188
HuaHe
Product Overview

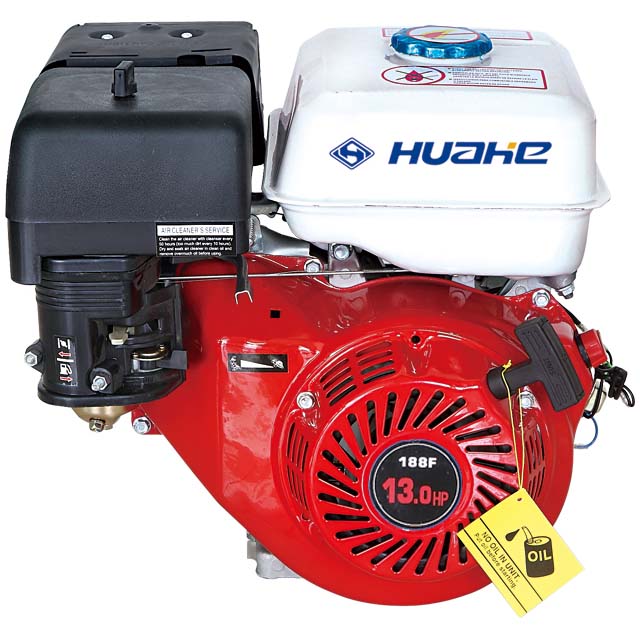

Huahe Heavy Industries Co., Ltd. specializes in manufacturing export engines of the HH188 model.
The engine is based on a 389cc large displacement framework and adopts military-grade cylinder block strengthening technology (with an 88mm ultra-large cylinder diameter) and TCI digital ignition technology.
It is specifically developed for heavy-duty scenarios such as construction machinery and auxiliary power for ships.
The HH188 engine achieves a breakthrough in the golden match of 13HP power and 26.4N.m torque. In the critical 2500rpm speed range, the torque output is 15% higher than that of competing products, while maintaining an ultra-low fuel consumption of 290g/HPhour. The HH188 is not only an engine but also a power solution for heavy-duty equipment.
As a manufacturing enterprise integrating industry and trade, Huahe provides customized power services for trading partners. The single batch export loading capacity can reach up to 600 units/40HQ containers.
Contact us to obtain your exclusive power solution!
Product Overview
Huahe Heavy Industries Co., Ltd. specializes in manufacturing export engines of the HH188 model.
The engine is based on a 389cc large displacement framework and adopts military-grade cylinder block strengthening technology (with an 88mm ultra-large cylinder diameter) and TCI digital ignition technology.
It is specifically developed for heavy-duty scenarios such as construction machinery and auxiliary power for ships.
The HH188 engine achieves a breakthrough in the golden match of 13HP power and 26.4N.m torque. In the critical 2500rpm speed range, the torque output is 15% higher than that of competing products, while maintaining an ultra-low fuel consumption of 290g/HPhour. The HH188 is not only an engine but also a power solution for heavy-duty equipment.
As a manufacturing enterprise integrating industry and trade, Huahe provides customized power services for trading partners. The single batch export loading capacity can reach up to 600 units/40HQ containers.
Contact us to obtain your exclusive power solution!
Model | HH188 |
Engine type | Air-cooled 4 Stroke OHV single cylinder |
Bore*Stroke | 88mm*64mm |
Displacement | 389cc |
Compression ratio | 8:01 |
Max.Power output | 13HP/3600rpm |
Max.Torque | 26.4N.m/-2500rpm |
Ignition System | Non-contact transistorized ignition(TCI) |
Start model | Recoil/Electric |
Air cleaner | Semi-dry,oil bath,dual,double silent and cyclone type |
Fuel tank capacitay | 6.5L |
Fuel consumption | 290g/HP-hour |
Engine oil capacity | 1.1L |
Dimension(L*W*H) | 510*420*475mm |
Gross weight | 34kg |
Quantity for container | 240/600pcs |
Model | HH188 |
Engine type | Air-cooled 4 Stroke OHV single cylinder |
Bore*Stroke | 88mm*64mm |
Displacement | 389cc |
Compression ratio | 8:01 |
Max.Power output | 13HP/3600rpm |
Max.Torque | 26.4N.m/-2500rpm |
Ignition System | Non-contact transistorized ignition(TCI) |
Start model | Recoil/Electric |
Air cleaner | Semi-dry,oil bath,dual,double silent and cyclone type |
Fuel tank capacitay | 6.5L |
Fuel consumption | 290g/HP-hour |
Engine oil capacity | 1.1L |
Dimension(L*W*H) | 510*420*475mm |
Gross weight | 34kg |
Quantity for container | 240/600pcs |
When it comes to durability, there are several factors to consider when choosing a gasoline engine. Here are some key features to look for in a durable gasoline engine:
1. Construction and Materials: A durable gasoline engine is typically built with high-quality materials such as cast iron or aluminum alloy for the engine block and cylinder head. These materials offer strength, heat resistance, and longevity.
2. Engine Design: Look for engines with robust design features such as reinforced crankshafts, heavy-duty connecting rods, and durable pistons. These components play a crucial role in the engine's durability and ability to withstand high loads and continuous operation.
3. Cooling System: An efficient cooling system is essential for maintaining optimal engine temperature and preventing overheating. Look for engines with effective cooling systems that include features like large radiators, cooling fans, and proper airflow.
4. Lubrication System: A reliable lubrication system is crucial for reducing friction and wear on engine components. Look for engines with high-quality oil pumps, oil filters, and effective oil circulation to ensure proper lubrication and minimize engine wear.
5. Fuel System: A durable gasoline engine should have a reliable fuel system that delivers clean fuel to the combustion chamber. Look for engines with efficient fuel filters, fuel pumps, and fuel injectors that can handle various fuel qualities and minimize the risk of fuel-related issues.
6. Sealing and Gasket Materials: Durable engines often use high-quality gaskets and seals to prevent oil or coolant leaks. Look for engines with durable gaskets made from materials like multi-layer steel (MLS) or silicone to ensure long-lasting sealing performance.
7. Regular Maintenance: Even the most durable engines require regular maintenance to keep them in optimal condition. Follow the manufacturer's recommended maintenance schedule for oil changes, filter replacements, and other routine maintenance tasks to ensure the engine's longevity.
It's important to note that the durability of a gasoline engine can also depend on factors such as proper installation, usage conditions, and adherence to recommended operating guidelines. Consulting the manufacturer's specifications and guidelines for a specific engine model is always recommended to ensure its durability and longevity.
When it comes to durability, there are several factors to consider when choosing a gasoline engine. Here are some key features to look for in a durable gasoline engine:
1. Construction and Materials: A durable gasoline engine is typically built with high-quality materials such as cast iron or aluminum alloy for the engine block and cylinder head. These materials offer strength, heat resistance, and longevity.
2. Engine Design: Look for engines with robust design features such as reinforced crankshafts, heavy-duty connecting rods, and durable pistons. These components play a crucial role in the engine's durability and ability to withstand high loads and continuous operation.
3. Cooling System: An efficient cooling system is essential for maintaining optimal engine temperature and preventing overheating. Look for engines with effective cooling systems that include features like large radiators, cooling fans, and proper airflow.
4. Lubrication System: A reliable lubrication system is crucial for reducing friction and wear on engine components. Look for engines with high-quality oil pumps, oil filters, and effective oil circulation to ensure proper lubrication and minimize engine wear.
5. Fuel System: A durable gasoline engine should have a reliable fuel system that delivers clean fuel to the combustion chamber. Look for engines with efficient fuel filters, fuel pumps, and fuel injectors that can handle various fuel qualities and minimize the risk of fuel-related issues.
6. Sealing and Gasket Materials: Durable engines often use high-quality gaskets and seals to prevent oil or coolant leaks. Look for engines with durable gaskets made from materials like multi-layer steel (MLS) or silicone to ensure long-lasting sealing performance.
7. Regular Maintenance: Even the most durable engines require regular maintenance to keep them in optimal condition. Follow the manufacturer's recommended maintenance schedule for oil changes, filter replacements, and other routine maintenance tasks to ensure the engine's longevity.
It's important to note that the durability of a gasoline engine can also depend on factors such as proper installation, usage conditions, and adherence to recommended operating guidelines. Consulting the manufacturer's specifications and guidelines for a specific engine model is always recommended to ensure its durability and longevity.
