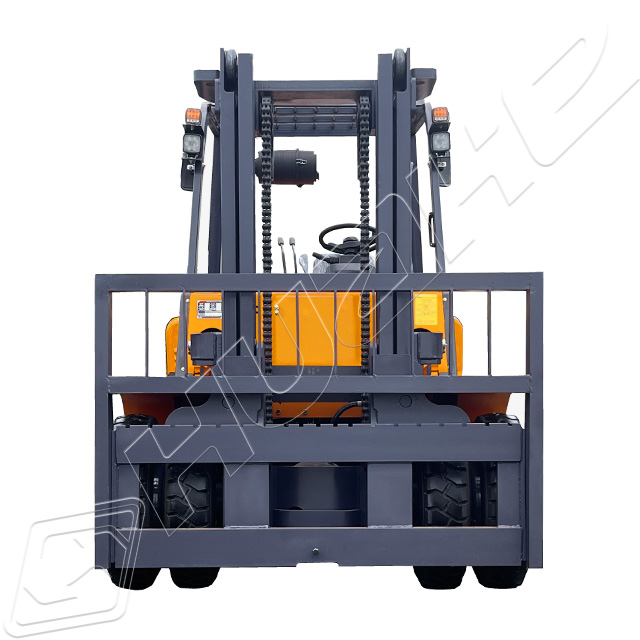

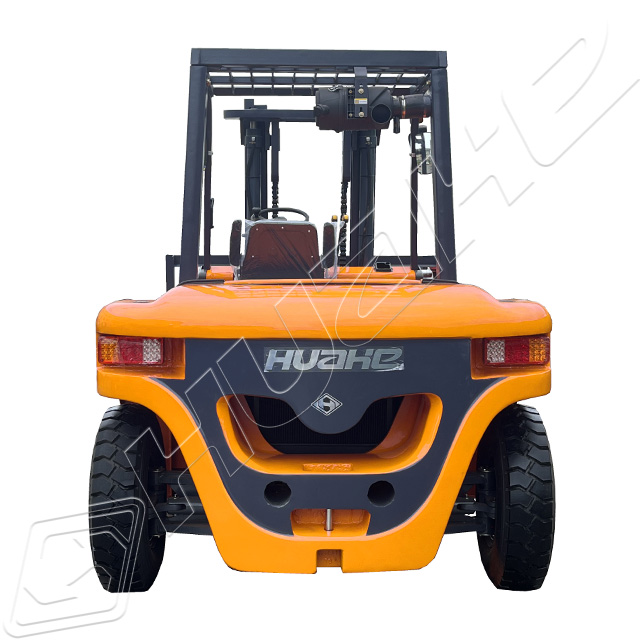

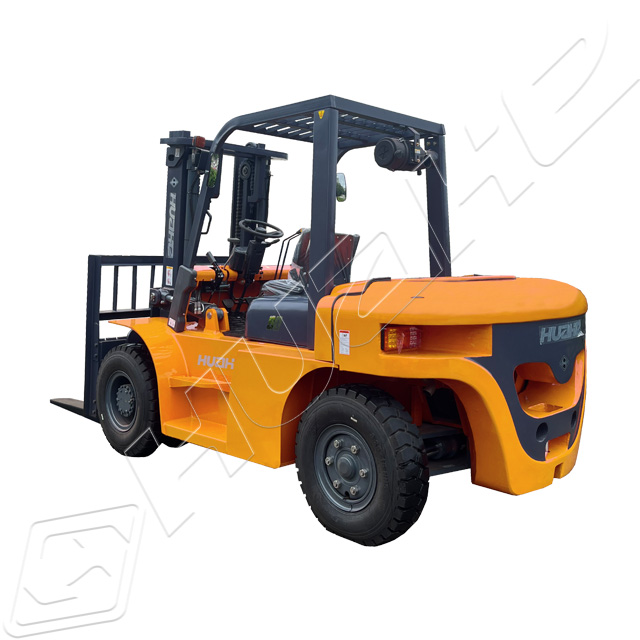

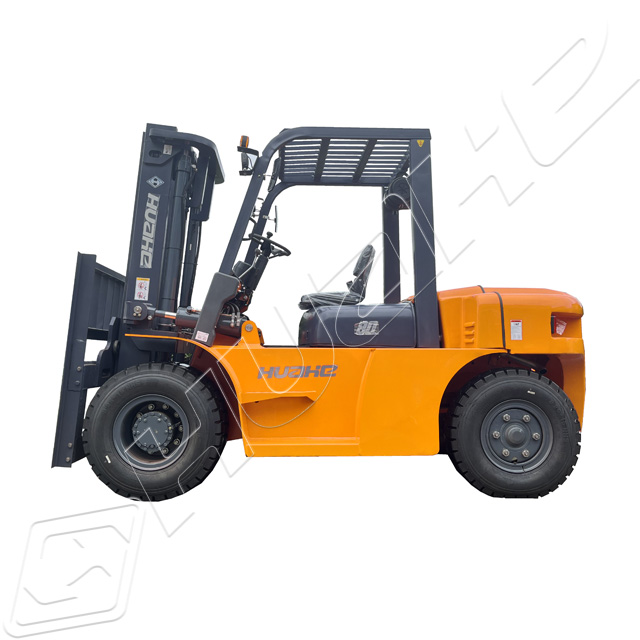

The HH80Z represents a robust 8-ton diesel forklift solution engineered for demanding industrial applications. Powered by the reliable Xichai CA6110 engine, this model delivers exceptional load capacity within a compact footprint, making it ideally suited for port operations, steel industries, and heavy equipment manufacturing requiring substantial material handling capabilities.
FAQ
Q1: What is the maximum load capacity of the HH80Z? A1: Rated capacity is 8000kg at 600mm load center, meeting most heavy material handling requirements. Q2: Are multiple engine options available for this model? A2: The HH80Z comes standard with the Xichai CA6110 engine, proven reliable in heavy-duty applications. Q3: How does performance compare under full load conditions? A3: Full load specifications include 28 km/h travel speed, 400 mm/s lifting speed, and 20% gradeability, demonstrating strong performance metrics. Q4: Can specialized attachments be installed? A4: Yes, various heavy-duty attachments are supported. Please consult our technical team for specific configuration options.
Product Overview
The HH80Z represents a robust 8-ton diesel forklift solution engineered for demanding industrial applications. Powered by the reliable Xichai CA6110 engine, this model delivers exceptional load capacity within a compact footprint, making it ideally suited for port operations, steel industries, and heavy equipment manufacturing requiring substantial material handling capabilities.
FAQ
Q1: What is the maximum load capacity of the HH80Z? A1: Rated capacity is 8000kg at 600mm load center, meeting most heavy material handling requirements. Q2: Are multiple engine options available for this model? A2: The HH80Z comes standard with the Xichai CA6110 engine, proven reliable in heavy-duty applications. Q3: How does performance compare under full load conditions? A3: Full load specifications include 28 km/h travel speed, 400 mm/s lifting speed, and 20% gradeability, demonstrating strong performance metrics. Q4: Can specialized attachments be installed? A4: Yes, various heavy-duty attachments are supported. Please consult our technical team for specific configuration options.
Product Specification
1
Model
UNIT
HH80Z
Generals
2
Power Type
-
Diesel
3
Rated Capacity
kg
8000
4
Load Center
mm
600
5
Lift Height
mm
3000
6
Free Lift Height
mm
230
7
Fork Size (L*W*T)
mm
1220×150×70
8
Fork Outside Spread (Min./Max.)
mm
300/1830
9
Mast Tilt Range (F/R)
deg
6/12
10
Total Weight
kg
9900
Characteristic&Dimensions
11
Front overhang
mm
590
12
Overall dimensions
Length to Face of Fork (without fork)
mm
3660
13
Length to Face of Fork (with fork)
mm
4880
14
Wheel Width
mm
2000
15
Mast Lowered Height
mm
2520
16
Mast Extended Height
mm
4360
17
Overhead Guard Height
mm
2490
18
Turning Radius
mm
3450
19
Min. Right Angle Aisle Width
mm
3755
Performance
20
Travel Speed (unload/full load)
km/h
30/28
21
Lift Speed (unload/ full load)
mm/s
600/400
22
Max. Gradeability
%
20
Wheel & Tires Drive units
23
Tires
Front
-
8.25-15-14PR
24
Rear
-
8.25-15-14PR
25
Tread
Front
mm
1470
26
Rear
mm
1700
27
Wheelbase
mm
2250
28
Min. Ground Clearance
Frame (unload/ full load)
mm
190/160
29
Mast (unload/ full load)
mm
260/250
30
Battery
v/ah
2×12/80
31
Engine
Model
-
Xinchai CA6110
32
Rated Output
kw/r.p.m
85/2000
33
Rated Torque
n.m/r.p.m
385/2000
34
Displacement
cc
5560
35
No. of Cylinder
-
6
36
Bore×Stroke
mm
101.6×114.3
37
Transmission
Type
-
Hydraulic
38
Shift (FWD/RVS)
-
2/2
39
Operating Pressure
mpa
18
Product Specification
1
Model
UNIT
HH80Z
Generals
2
Power Type
-
Diesel
3
Rated Capacity
kg
8000
4
Load Center
mm
600
5
Lift Height
mm
3000
6
Free Lift Height
mm
230
7
Fork Size (L*W*T)
mm
1220×150×70
8
Fork Outside Spread (Min./Max.)
mm
300/1830
9
Mast Tilt Range (F/R)
deg
6/12
10
Total Weight
kg
9900
Characteristic&Dimensions
11
Front overhang
mm
590
12
Overall dimensions
Length to Face of Fork (without fork)
mm
3660
13
Length to Face of Fork (with fork)
mm
4880
14
Wheel Width
mm
2000
15
Mast Lowered Height
mm
2520
16
Mast Extended Height
mm
4360
17
Overhead Guard Height
mm
2490
18
Turning Radius
mm
3450
19
Min. Right Angle Aisle Width
mm
3755
Performance
20
Travel Speed (unload/full load)
km/h
30/28
21
Lift Speed (unload/ full load)
mm/s
600/400
22
Max. Gradeability
%
20
Wheel & Tires Drive units
23
Tires
Front
-
8.25-15-14PR
24
Rear
-
8.25-15-14PR
25
Tread
Front
mm
1470
26
Rear
mm
1700
27
Wheelbase
mm
2250
28
Min. Ground Clearance
Frame (unload/ full load)
mm
190/160
29
Mast (unload/ full load)
mm
260/250
30
Battery
v/ah
2×12/80
31
Engine
Model
-
Xinchai CA6110
32
Rated Output
kw/r.p.m
85/2000
33
Rated Torque
n.m/r.p.m
385/2000
34
Displacement
cc
5560
35
No. of Cylinder
-
6
36
Bore×Stroke
mm
101.6×114.3
37
Transmission
Type
-
Hydraulic
38
Shift (FWD/RVS)
-
2/2
39
Operating Pressure
mpa
18
Key Features & Highlights
· Advanced Powertrain: Xichai CA6110 engine delivering 85kW at 2000rpm with 385N·m torque for consistent heavy-load performance · Optimized Load Design: 9900kg unladen weight combined with 600mm load center ensures superior operational stability · Enhanced Productivity: Travel speeds of 30/28 km/h (unloaded/loaded) and lifting speeds of 600/400 mm/s maximize efficiency · Superior Maneuverability: 3450mm turning radius with 3755mm right-angle stacking aisle width balances heavy capacity with agile operation · All-Terrain Capability: 20% maximum gradeability and 190/160mm frame ground clearance adapt to challenging work environments
Competitive Advantages
· Optimal Capacity-Dimension Ratio: Maintains 4880mm total length while offering 8-ton capacity, achieving ideal space utilization in its class · Engine Performance Tuning: Xichai CA6110 engine specifically calibrated for heavy-duty operations, reaching peak torque at 2000rpm · Uniform Tire Configuration: 8.25-15-14PR tires on both axles provide improved traction and extended service life
Pain Point Solutions
User Challenge
HH802 Solution
Insufficient stability under heavy loads
9900kg unladen weight with 2250mm wheelbase ensures stability during heavy operations
Poor maneuverability in confined spaces
3450mm minimum turning radius delivers exceptional agility for an 8-ton forklift
Difficulty with ramp starts
385N·m torque output and 20% gradeability provide confident slope performance
Limited equipment versatility
Uniform tire configuration and adequate ground clearance adapt to various terrains
Key Features & Highlights
· Advanced Powertrain: Xichai CA6110 engine delivering 85kW at 2000rpm with 385N·m torque for consistent heavy-load performance · Optimized Load Design: 9900kg unladen weight combined with 600mm load center ensures superior operational stability · Enhanced Productivity: Travel speeds of 30/28 km/h (unloaded/loaded) and lifting speeds of 600/400 mm/s maximize efficiency · Superior Maneuverability: 3450mm turning radius with 3755mm right-angle stacking aisle width balances heavy capacity with agile operation · All-Terrain Capability: 20% maximum gradeability and 190/160mm frame ground clearance adapt to challenging work environments
Competitive Advantages
· Optimal Capacity-Dimension Ratio: Maintains 4880mm total length while offering 8-ton capacity, achieving ideal space utilization in its class · Engine Performance Tuning: Xichai CA6110 engine specifically calibrated for heavy-duty operations, reaching peak torque at 2000rpm · Uniform Tire Configuration: 8.25-15-14PR tires on both axles provide improved traction and extended service life
Pain Point Solutions
User Challenge
HH802 Solution
Insufficient stability under heavy loads
9900kg unladen weight with 2250mm wheelbase ensures stability during heavy operations
Poor maneuverability in confined spaces
3450mm minimum turning radius delivers exceptional agility for an 8-ton forklift
Difficulty with ramp starts
385N·m torque output and 20% gradeability provide confident slope performance
Limited equipment versatility
Uniform tire configuration and adequate ground clearance adapt to various terrains
