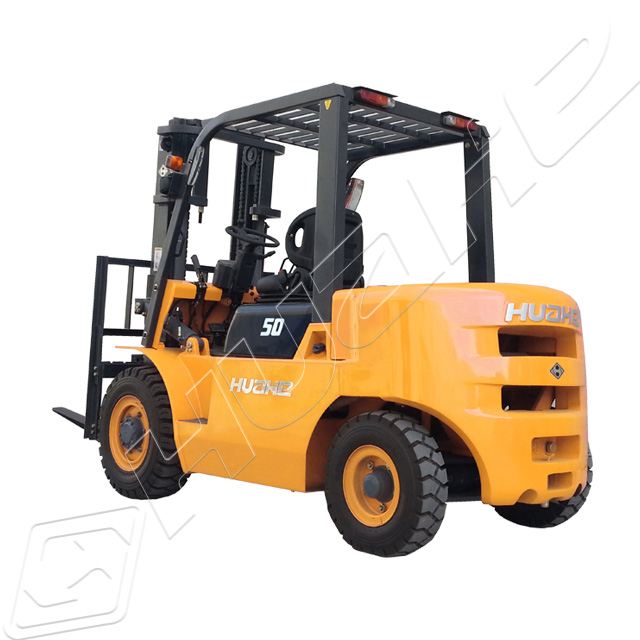

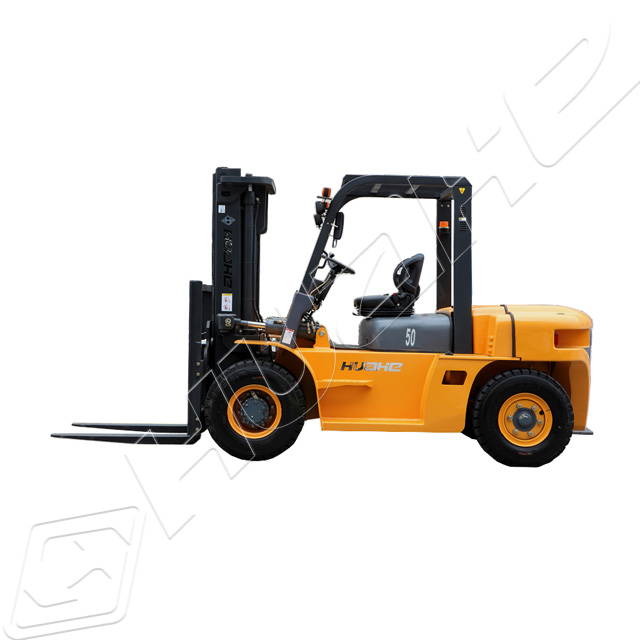

The HH50Zstands as a versatile 5-ton diesel counterbalance forklift offering dual powerplant selections - ISUZU 6BG1 and Xichai CA6110. This model achieves an optimal synthesis of operational performance and economic efficiency, delivering reliable material handling capabilities for diverse industrial, logistics, and warehouse applications.
Product Overview
The HH50Zstands as a versatile 5-ton diesel counterbalance forklift offering dual powerplant selections - ISUZU 6BG1 and Xichai CA6110. This model achieves an optimal synthesis of operational performance and economic efficiency, delivering reliable material handling capabilities for diverse industrial, logistics, and warehouse applications.
Product Specification
1
Model
UNIT
HH50Z
HH50Z
Generals
2
Power Type
-
Diesel
3
Rated Capacity
kg
5000
5000
4
Load Center
mm
600
600
5
Lift Height
mm
3000
3000
6
Free Lift Height
mm
190
190
7
Fork Size (L*W*T)
mm
1220×150×60
1220×150×60
8
Fork Outside Spread (Min./Max.)
mm
300/1830
300/1830
9
Mast Tilt Range (F/R)
deg
6/12
6/12
10
Total Weight
kg
8550
8550
Characteristic&Dimensions
11
Front overhang
mm
590
590
12
Overall dimensions
Length to Face of Fork (without fork)
mm
3570
3570
13
Length to Face of Fork (with fork)
mm
4790
4790
14
Wheel Width
mm
2000
2000
15
Mast Lowered Height
mm
2520
2520
16
Mast Extended Height
mm
4360
4360
17
Overhead Guard Height
mm
2490
2490
18
Turning Radius
mm
3370
3370
19
Min. Right Angle Aisle Width
mm
3755
3755
Performance
20
Travel Speed (unload/full load)
km/h
30/28
30/28
21
Lift Speed (unload/ full load)
mm/s
600/400
600/400
22
Max. Gradeability
%
20
20
Wheel & Tires Drive units
23
Tires
Front
-
8.25-15-14PR
8.25-15-14PR
24
Rear
-
8.25-15-14PR
8.25-15-14PR
25
Tread
Front
mm
1470
1470
26
Rear
mm
1700
1700
27
Wheelbase
mm
2250
2250
28
Min. Ground Clearance
Frame (unload/ full load)
mm
190/160
190/160
29
Mast (unload/ full load)
mm
260/250
260/250
30
Battery
v/ah
2×12/80
2×12/80
31
Engine
Model
-
ISUZU 6BG1
Xichai CA6110
32
Rated Output
kw/r.p.m
82/2000
85/2000
33
Rated Torque
n.m/r.p.m
411/1600
385/2000
34
Displacement
cc
6494
5560
35
No. of Cylinder
-
6
6
36
Bore×Stroke
mm
105×125
101.6×114.3
37
Transmission
Type
-
Hydraulic
Hydraulic
38
Shift (FWD/RVS)
-
2/2
2/2
39
Operating Pressure
mpa
18
18
Product Specification
1
Model
UNIT
HH50Z
HH50Z
Generals
2
Power Type
-
Diesel
3
Rated Capacity
kg
5000
5000
4
Load Center
mm
600
600
5
Lift Height
mm
3000
3000
6
Free Lift Height
mm
190
190
7
Fork Size (L*W*T)
mm
1220×150×60
1220×150×60
8
Fork Outside Spread (Min./Max.)
mm
300/1830
300/1830
9
Mast Tilt Range (F/R)
deg
6/12
6/12
10
Total Weight
kg
8550
8550
Characteristic&Dimensions
11
Front overhang
mm
590
590
12
Overall dimensions
Length to Face of Fork (without fork)
mm
3570
3570
13
Length to Face of Fork (with fork)
mm
4790
4790
14
Wheel Width
mm
2000
2000
15
Mast Lowered Height
mm
2520
2520
16
Mast Extended Height
mm
4360
4360
17
Overhead Guard Height
mm
2490
2490
18
Turning Radius
mm
3370
3370
19
Min. Right Angle Aisle Width
mm
3755
3755
Performance
20
Travel Speed (unload/full load)
km/h
30/28
30/28
21
Lift Speed (unload/ full load)
mm/s
600/400
600/400
22
Max. Gradeability
%
20
20
Wheel & Tires Drive units
23
Tires
Front
-
8.25-15-14PR
8.25-15-14PR
24
Rear
-
8.25-15-14PR
8.25-15-14PR
25
Tread
Front
mm
1470
1470
26
Rear
mm
1700
1700
27
Wheelbase
mm
2250
2250
28
Min. Ground Clearance
Frame (unload/ full load)
mm
190/160
190/160
29
Mast (unload/ full load)
mm
260/250
260/250
30
Battery
v/ah
2×12/80
2×12/80
31
Engine
Model
-
ISUZU 6BG1
Xichai CA6110
32
Rated Output
kw/r.p.m
82/2000
85/2000
33
Rated Torque
n.m/r.p.m
411/1600
385/2000
34
Displacement
cc
6494
5560
35
No. of Cylinder
-
6
6
36
Bore×Stroke
mm
105×125
101.6×114.3
37
Transmission
Type
-
Hydraulic
Hydraulic
38
Shift (FWD/RVS)
-
2/2
2/2
39
Operating Pressure
mpa
18
18
Key Features & Highlights
· Dual Power Configuration: Choice between ISUZU 6BG1 (82kW/411N·m) or Xichai CA6110 (85kW/385N·m) to match specific operational requirements
· Enhanced Mobility: Industry-competitive 3370mm turning radius with 3755mm right-angle stacking aisle width maximizes space utilization
· Productive Operation: 30/28 km/h travel speeds (unloaded/loaded) and 600/400 mm/s lifting speeds maintain workflow continuity
· Structural Stability: 8550kg unladen weight combined with 2250mm wheelbase and 6°/12° mast tilt angles ensure operational security
· Economic Operation: Established engine technology with standardized components significantly reduces maintenance and operating expenses
· Space-Efficient Design: 4790mm overall length (with forks) demonstrates dimensional advantages within the 5-ton category
· Comprehensive Terrain Adaptation: 20% gradeability with 190/160mm ground clearance handles diverse working conditions
· Precision Control: Hydraulic transmission system with 2F/2R shifting delivers responsive handling and reduced operator fatigue
Pain Point Solutions
Operational Challenge HH50Z Solution Limited equipment budget Dual engine options provide differentiated pricing choices for various budget ranges Restricted working space 3370mm turning radius and compact design adapt to confined operating environments Operating cost control Proven power systems and low-failure design effectively manage maintenance costs Multi-scenario adaptability needs Balanced performance parameters and good clearance suit diversified applications
Key Features & Highlights
· Dual Power Configuration: Choice between ISUZU 6BG1 (82kW/411N·m) or Xichai CA6110 (85kW/385N·m) to match specific operational requirements
· Enhanced Mobility: Industry-competitive 3370mm turning radius with 3755mm right-angle stacking aisle width maximizes space utilization
· Productive Operation: 30/28 km/h travel speeds (unloaded/loaded) and 600/400 mm/s lifting speeds maintain workflow continuity
· Structural Stability: 8550kg unladen weight combined with 2250mm wheelbase and 6°/12° mast tilt angles ensure operational security
· Economic Operation: Established engine technology with standardized components significantly reduces maintenance and operating expenses
· Space-Efficient Design: 4790mm overall length (with forks) demonstrates dimensional advantages within the 5-ton category
· Comprehensive Terrain Adaptation: 20% gradeability with 190/160mm ground clearance handles diverse working conditions
· Precision Control: Hydraulic transmission system with 2F/2R shifting delivers responsive handling and reduced operator fatigue
Pain Point Solutions
Operational Challenge HH50Z Solution Limited equipment budget Dual engine options provide differentiated pricing choices for various budget ranges Restricted working space 3370mm turning radius and compact design adapt to confined operating environments Operating cost control Proven power systems and low-failure design effectively manage maintenance costs Multi-scenario adaptability needs Balanced performance parameters and good clearance suit diversified applications
