Name: 12-Ton Heavy Diesel Forklift - Superior Heavyweight Handling Specialist
Brand: HuaHe
Rating: 5.0 (32 reviews)

Product Overview

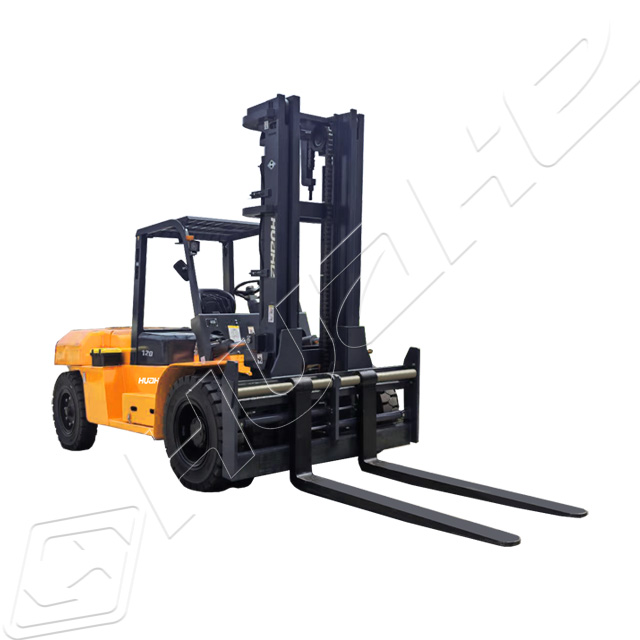

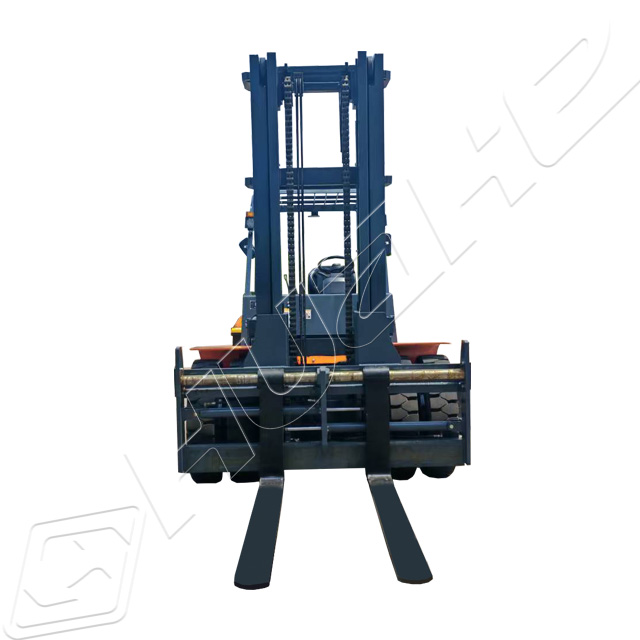

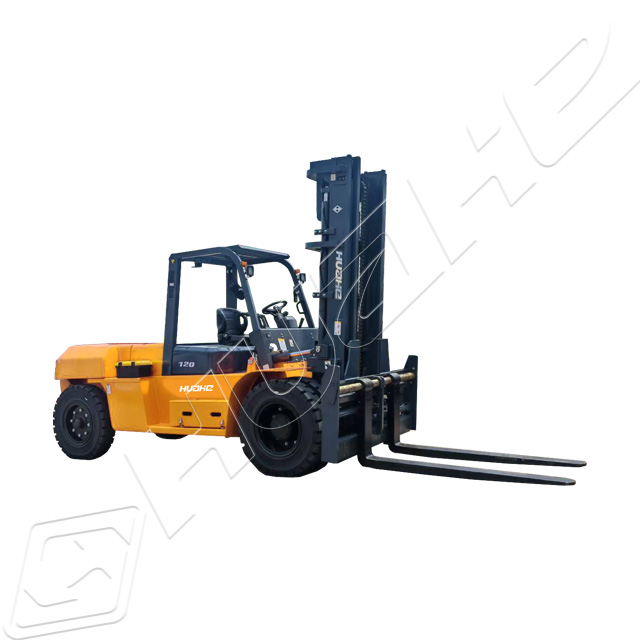

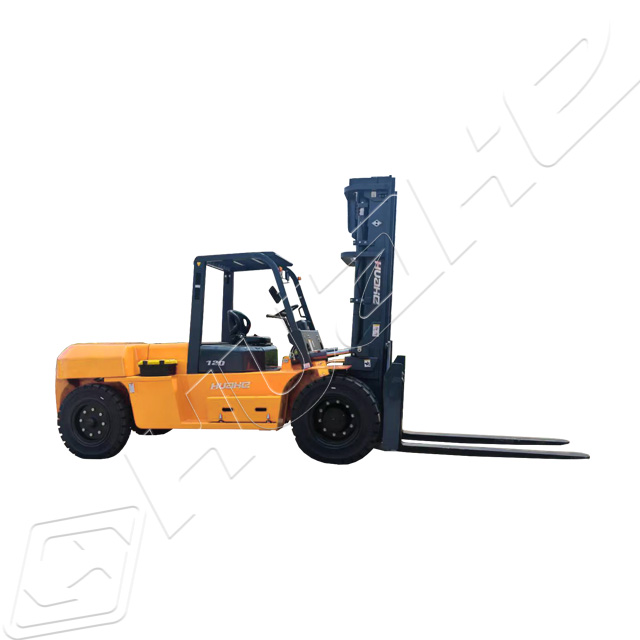

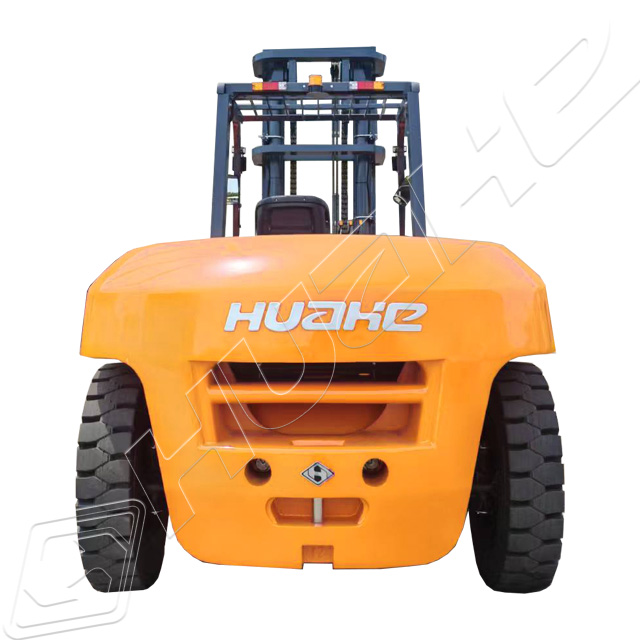

The HH120Z represents a professional-grade 12-ton diesel forklift engineered for extreme heavy-duty applications and demanding working conditions. Powered by the high-performance QSB4.5-C130 engine, this model achieves industry-leading standards in load capacity, structural integrity, and operational stability, making it the ideal handling solution for port terminals, steel plants, and heavy equipment manufacturing facilities.

CE4F6121-FDC3-4f53-AEA2-8DE67621EF3F

FAQ

Q1: What is the maximum lifting height?
A1: Mast extended height reaches 4500mm with lowered height of 3080mm, meeting various high-level stacking requirements.
Q2: What emission standards does the engine meet?
A2: The QSB4.5 engine complies with current non-road machinery emission standards. Please consult local dealers for specific emission tiers.
Q3: Can specialized attachments be installed?
A3: Yes, various heavy-duty specialized attachments are supported. Contact our technical team for specific configuration options.
Q4: How is slope operation safety ensured?
A4: With 20% maximum gradeability, optimized 6°/6° mast tilt angles, and integrated stability systems, slope operations maintain safety standards.

Product Specification

	1	Model			UNIT	HH120Z
Generals	2	Power Type			-	Diesel
	3	Rated Capacity			kg	12000
	4	Load Center			mm	600
	5	Lift Height			mm	3000
	6	Free Lift Height			mm	275
	7	Fork Size (LWT)			mm	1820×180×100
	8	Fork Outside Spread (Min./Max.)			mm	360/2460
	9	Mast Tilt Range (F/R)			deg	6/6
	10	Total Weight			kg	14200
Characteristic&Dimensions	11	Front overhang			mm	755
	12	Overall dimensions	Length to Face of Fork (without fork)		mm	4680
	13		Length to Face of Fork (with fork)		mm	6200
	14		Wheel Width		mm	2200
	15		Mast Lowered Height		mm	3080
	16		Mast Extended Height		mm	4500
	17		Overhead Guard Height		mm	2540
	18	Turning Radius			mm	4700
	19	Min. Right Angle Aisle Width			mm	3850
Performance	20	Travel Speed (unload/full load)			km/h	30/24
	21	Lift Speed (unload/ full load)			mm/s	340/270
	22	Max. Gradeability			%	20
Wheel & Tires Drive units	23	Tires		Front	-	11.00-20-16PR
	24	Tires		Rear	-	9.00-20-14PR
	25	Tread		Front	mm	1724
	26	Tread		Rear	mm	1850
	27	Wheelbase			mm	3200
	28	Min. Ground Clearance		Frame (unload/ full load)	mm	305
	29	Min. Ground Clearance		Mast (unload/ full load)	mm	230
	30	Battery			v/ah	2×12/80
	31	Engine		Model	-	QSB4.5-C130
	32			Rated Output	kw/r.p.m	97/2200
	33			Rated Torque	n.m/r.p.m	622/1500
	34			Displacement	cc	4500
	35			No. of Cylinder	-	4
	36			Bore×Stroke	mm	107×124
	37	Transmission		Type	-	Hydraulic
	38	Transmission		Shift (FWD/RVS)	-	2/2
	39	Operating Pressure			mpa	18

Key Features & Highlights

· Massive Load Capacity: 12,000kg rated capacity at 600mm load center meets super-heavy material handling requirements

· Advanced Power System: QSB4.5 engine delivers 97kW power and substantial 622N·m torque, reaching peak output at 1500rpm

· Professional Structural Design: 14,200kg unladen weight, 3200mm wheelbase, and 1724/1850mm widened track ensure stability in extreme conditions

· Optimized Performance Metrics: 340/270mm/s lifting speeds and 30/24km/h travel speeds balance efficiency with operational safety

· Heavy-Duty Tire Configuration: Front 11.00-20-16PR and rear 9.00-20-14PR tires provide exceptional load-bearing capacity and durability

Competitive Advantages

· Leading Torque Output: 622N·m peak torque available from 1500rpm delivers superior heavy-load starting capability

· Exceptional Structural Strength: 2200mm widened chassis with 755mm front overhang features reinforced design for super-heavy loads

· Specialized Fork System: 1820×180×100mm heavy-duty forks with 2460mm maximum outside spread accommodate oversized cargo

· Outstanding Terrain Capability: 305mm frame ground clearance and 20% gradeability adapt to challenging working environments

Pain Point Solutions

Operational Challenge HH120Z Solution

Super-heavy load requirements 12,000kg rated capacity with reinforced structure handles massive loads

Insufficient power for heavy-load starts 622N·m substantial torque available from 1500rpm ensures powerful starting

Complex and varied work sites 305mm high ground clearance and 20% gradeability suit diverse terrains

Demanding equipment stability needs 14,200kg weight with widened track provides top-level operational stability
