3.8 Ton Heavy-Duty Electric Lithium Battery Forklift – High Load, Strong Power, Superior Stability
Home » All Products » Forklift » Lithium Forklift » 3.8 Ton Heavy-Duty Electric Lithium Battery Forklift – High Load, Strong Power, Superior Stability

loading

3.8 Ton Heavy-Duty Electric Lithium Battery Forklift – High Load, Strong Power, Superior Stability

A 3.8 Ton Heavy-Duty Electric Lithium Battery Forklift – High Load, Strong Power, Superior Stability
  • Lift Height(full load):3000 mm
  • Lift Speed(unload/full load):300mm/s
  • Travel Speed(unload/full load):18 Km/h
  • Max.gradeability:16%
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • HFE38

  • HuaHe

Product Overview

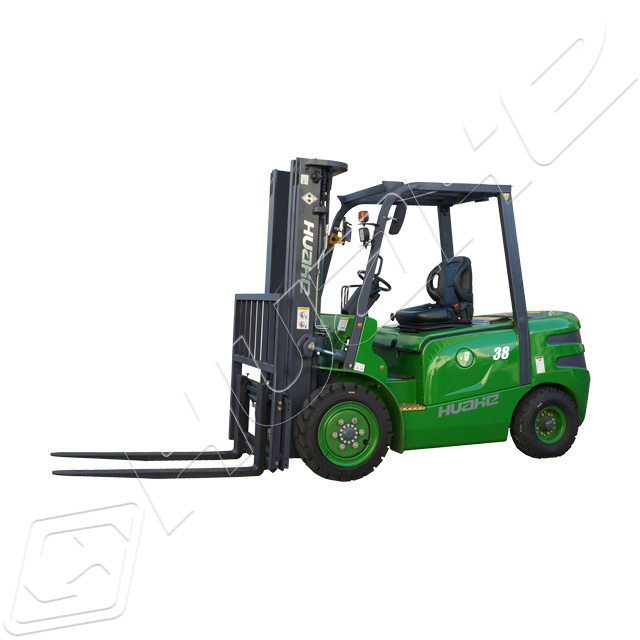

The HEF38 is a robust 3.8-ton electric forklift engineered for medium to heavy-duty applications. Powered by a LiFePO4 battery and dual AC motors, it delivers 22kW drive power and 14kW lift power for outstanding performance in demanding environments such as ports, construction material handling, and large logistics hubs. With an extended wheelbase and optimized chassis design, it ensures superior stability and efficiency under full load.


FAQ

Q1: What is the expected cycle life of the LiFePO4 battery in the HEF38?
A1:The LiFePO4 battery typically offers a cycle life of over 3,000 cycles (while maintaining 80% of initial capacity), significantly outperforming traditional lead-acid batteries and reducing long-term battery replacement costs.
Q2: How is the motor cooling performance during intensive operation?
A2:Both the drive and lift motors are equipped with forced air cooling systems and integrated thermal protection. This ensures the motors remain within safe operating temperatures during continuous heavy-duty use, guaranteeing stable power output and motor longevity.
Q3: What intelligent features does the control system offer?
A3:The HUAHE intelligent controller provides multiple management features, including: precise battery level indication, fault code diagnostics, start-up delay adjustment, and regenerative braking strength adjustment, facilitating easier maintenance and personalized operation.
Q4: What is the emergency braking performance like under full load?
A4:Benefiting from the inherent braking特性 of the AC drive motor and an optimized electronic braking strategy, the HEF38 delivers excellent braking performance under full load. It ensures short braking distances and smooth, shock-free stops for enhanced safety.




Product Specification



1 Model  UNIT HEF38
General 2 Power Type  - LiFePO4 Battery
3 Rated Capacity  kg 3800
4 Load Centre  mm 500
5 Lift Height  mm 3000
6 Free Lift Height  mm 115
7 Fork Size (L×W×T)  mm 1220x122x45
8 Mast Tilt Angle (F/R)  Deg 6/12
9 Total Weight  kg 5000
Characteristic&Dimension 10 Overall Dimension
Length to Face of Fork (without fork)

mm 2600
11 Overall Width  mm 1205
12 Mast Lowered Height
mm 2095
13 Mast Extended Height (with backrest)
mm 4210
14 Overhead Guard Height
mm 2140
15 Min. Turning Radius  mm 2560
16 Front Overhang (wheel centre to fork face)
mm 448
17 Tread  Front/Rear  mm 1000/980
18 Min.Ground Clearance
Frame (unload/full load)  mm 165/155
19 Mast  (unload/full load)  mm 150/140
20 Wheelbase  mm 1790
21 Fork Spread
Min./Max.  mm 240/1100
Performance 22 Speed  Travel (full load)  Km/h 18
23 Lifting (full load)  mm/s 300
24 Gradeability  Laden  % 16
25 Tires  Front×2  - 28X9-15-12PR
26 Rear×2  - 6.50-10-10PR
     Power 27 Motor  Drive Motor  kw 22
28 Lift Motor  kw 14
29 Battery  Standard  V/Ah 80/350
30 Controller  Manufacturer  - HUAHE
31 Driving Type  - AC+DC


Features & Highlights

· High-Performance Motors: 22kW drive motor and 14kW lift motor enable strong traction and lifting speed, with 18 km/h travel and 16% gradeability.
· Enhanced Stability: 1790 mm wheelbase and 5000 kg weight improve balance and load handling.
· Advanced LiFePO4 Battery: 80V/350Ah battery ensures long runtime and fast charging for multi-shift operations.
· Maneuverable & High-Reaching: Turning radius of 2560 mm and lift height up to 4210 mm offer both narrow-aisle access and high stacking capability.
· Intelligent Control: HUAHE AC+DC controller provides smooth operation and energy savings.


Competitive Advantages

· Higher Load Capacity: 3.8-ton rating exceeds standard 3.5-ton models, ideal for heavier goods.
· Superior Power Output: Larger motors deliver better acceleration and gradeability.
· Optimized Chassis Design: Longer wheelbase and weighted frame enhance safety and control with heavy loads.

Pain Points & Solutions

Pain Point HEF38 Solution
Lack of power in heavy tasks 22kW drive motor ensures strong performance
Battery life concerns High-capacity LiFePO4 battery supports extended use
Instability with heavy loads Long wheelbase and balanced design improve stability
Slow high-level stacking 300 mm/s lift speed and 4210 mm height increase efficiency
