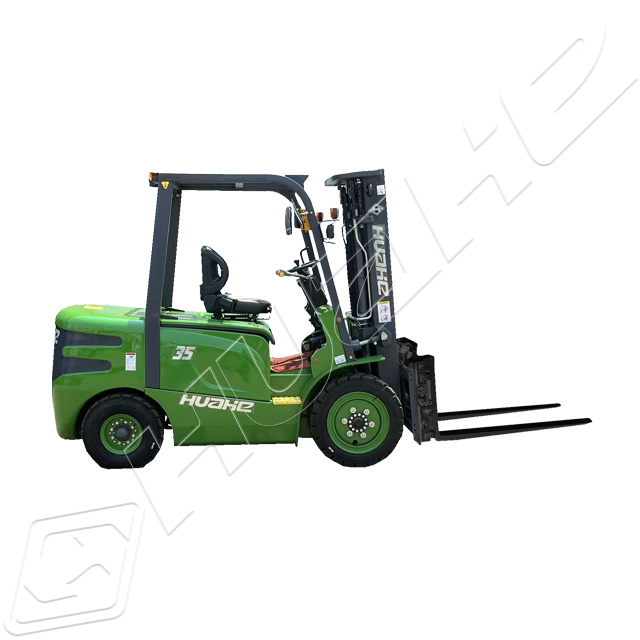

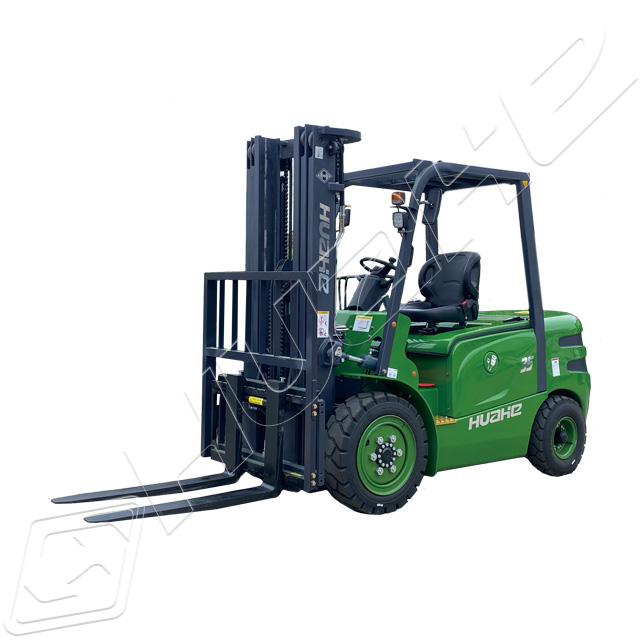

Name: 3.5 Ton Electric Lithium Battery Forklift – Efficient, Durable, Low-Maintenance
Brand: HuaHe
Rating: 5.0 (27 reviews)

Product Overview
The HEF35 is a high-performance electric forklift with a rated load capacity of 3.5 tons. Equipped with an efficient LiFePO4 battery, it delivers powerful performance and extended operation time. With a compact design and small turning radius, it is ideal for both indoor and outdoor material handling. Featuring an advanced AC+DC control system and dual motor drive, it ensures smooth operation, high energy efficiency, and low maintenance—making it the perfect choice for modern logistics centers.

FAQ
Q1: How long does it take to fully charge the HEF35?
A1: Approx. 5-6 hours with standard charger; supports fast charging to 80% in 1 hour.
Q2: Is this forklift suitable for outdoor use?
A2: Yes, its tires and ground clearance are designed for both indoor and outdoor applications with 16% gradeability.
Q3: Are different battery capacities available?
A3: Yes, customizable battery options are available to meet various operational needs.
Q4: What brand is the controller and is it reliable?
A4: The HUAHE AC+DC controller ensures stable performance, fast response, and easy maintenance.

Product Specification

General	Model	UNIT	HFE35
	Power Type		Battery
	Rated Capacity	kg	3500
	Load Center	mm	500
Dimension	Lift Height	mm	3000
	Free Lift Height	mm	130
	Fork Size(LWT)	mm	107012545
	Fork Outside Spread(Min./Max.)	mm	300/1200
	Mast Tilt Range(F/R)	deg	6/12
	Front Overhang	mm	490
	Length to face of fork(without fork)	mm	2730
	Length to face of fork(with fork)	mm	3800
	Length to face of fork(wheel width)	mm	1225
	Mast lowered height	mm	2095
	Mast ectended height	mm	4180
	Overhead guard height	mm	2130
	Turning radius	mm	2510
	Min.right angle aislewith	mm	2200
Performance	Travel speed(unload/full load)	km/h	18
	Lift speed(unload/full load)	mm/s	300
	Self weight	kg	4600
	Max.gradeability	%	15
Wheel&Tires	Tires(Front)		28*9-15-12PR
	Tires(Rear)		6.50-10-10PR
	Tread(Front)	mm	1000
	Tread(Rear)	mm	970
	Wheelbase	mm	1700
	Min.ground clearance(unload/load) Mast	mm	152/132
	Min.ground clearance(unload/load) Frame	mm	158/138
Drive units	Rated power of driving motor	kW	16
	Rated power of lifting motor	kW	13
	Operating Pressure	mpa	17.5
	Battery	V/Ah	80V/350Ah

Features & Highlights
· Powerful Drive System: 16kW drive motor and 13kW lift motor; full-load travel speed up to 18 km/h with 16% gradeability.
· Long-Lasting Battery: 80V/350Ah LiFePO4 battery supports fast charging and long cycle life.
· Maneuverable & Versatile: Min. turning radius of 2510 mm, lift height up to 4210 mm, and 115 mm free lift height for narrow aisles and high stacking.
· Ergonomic & Safe: Low noise, zero emissions, overhead guard, and optimized ground clearance for various terrains.
· Smart Control: HUAHE AC+DC controller ensures quick response, low energy consumption, and high reliability.

Competitive Advantages

· Superior Battery: LiFePO4 offers longer life, faster charging, and minimal maintenance compared to lead-acid batteries.
· Energy Efficient: AC+DC system combined with high-efficiency motors reduces energy consumption by 15-20% vs. comparable models.
· Wide Applicability: Compact design, high load capacity, and excellent lift height make it suitable for diverse indoor/outdoor applications.

Pain Points & Solutions
Pain Point HEF35 Solution
High energy consumption & pollution All-electric, zero emissions, energy efficient
Frequent battery maintenance LiFePO4 battery requires little maintenance, long service life
Difficult operation in narrow spaces Small turning radius and flexible mast design
Slow lifting speed 300 mm/s lifting speed under full load boosts efficiency
