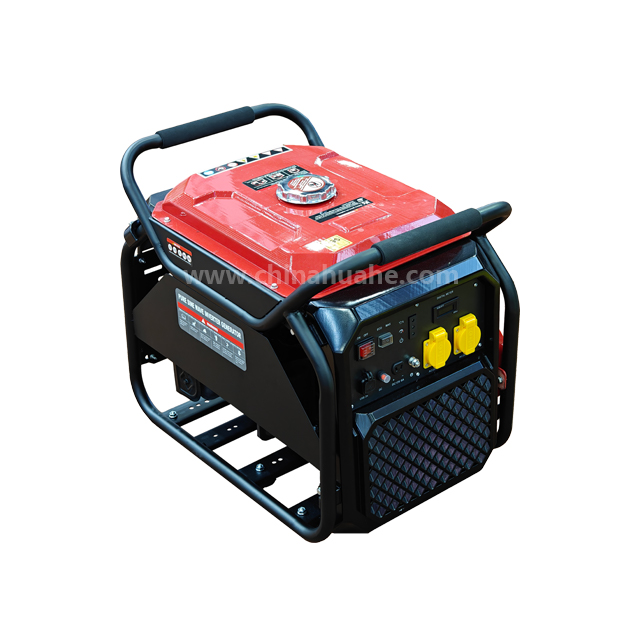

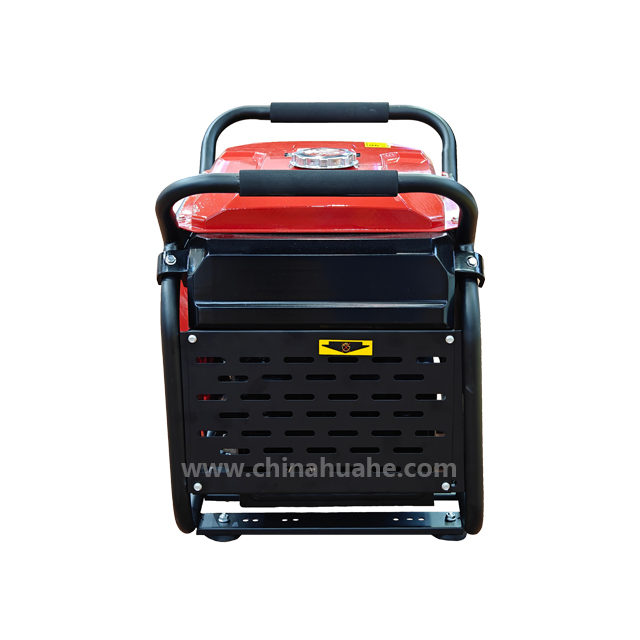

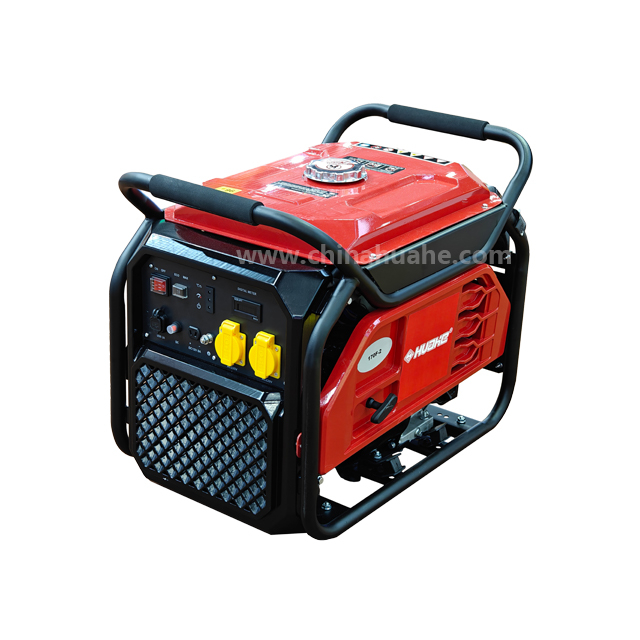

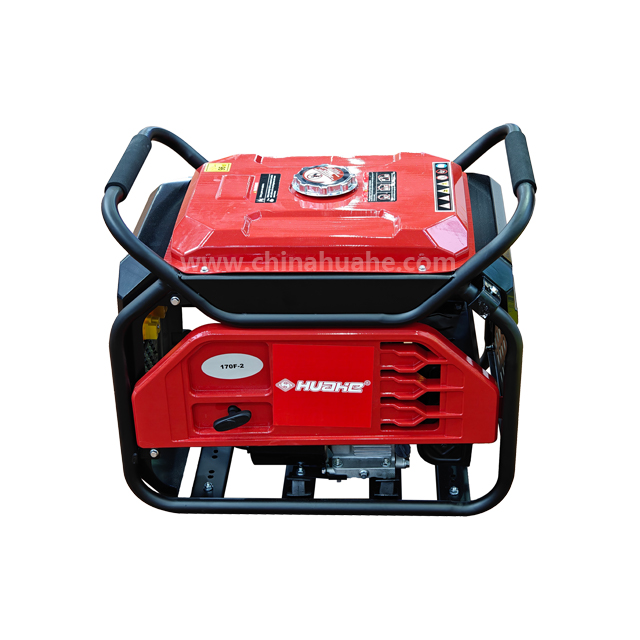

New Type 7 Kw Best Powerful Home 230v Digital Inverter Generator

A New Type 7 Kw Best Powerful Home 230v Digital Inverter Generator , Suitable for people who need home backup and suitable for large electrical apparatus.
  • Expiration Date:1 Year
  • Customization:Yes
  • Rated Voltage:230V
  • Noise level(at 7m):97dB
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Hi7500E

  • HuaHe

Product Overview

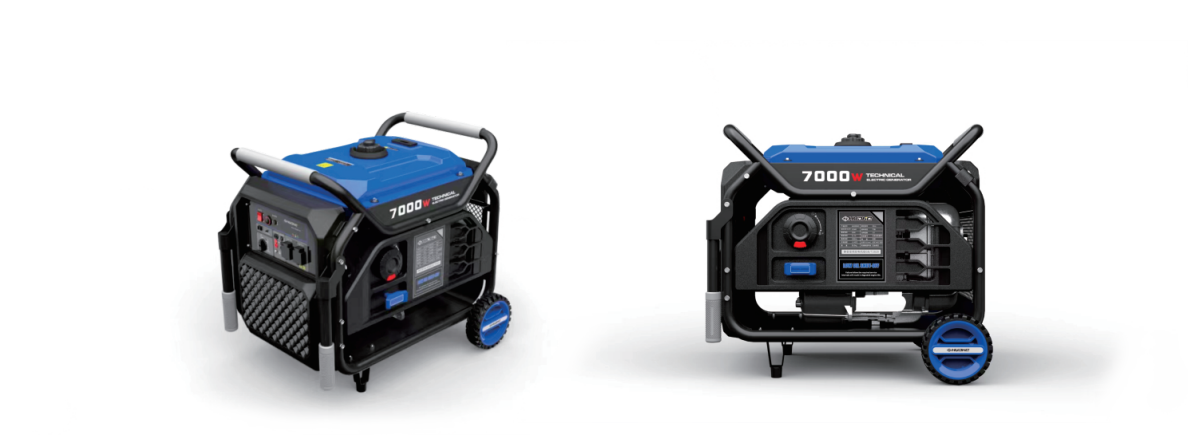

微信图片_20240507101233

Adopting overhead valve (OHV) engine technology, it achieves a power density leap of 7.5kW/9.5kW/12kW in the 420cc/460cc/500cc displacement range. It supports custom voltages such as 230V/110V/380V, and features a dual-voltage design for household voltages (110V/220V/230V/240V) and industrial voltage (380V). Through frequency converter overload protection and a waveform distortion rate of ≤3%, it meets the ISO8528 G1 compliance level for power output. With a compact structure of 60kg/65kg/75kg (605×525×625mm), it combines a 25L fuel range and ≤97dB acoustic suppression, providing a compliant power solution for overseas engineering, film shooting, and emergency rescue.



FAQ


Q:What electrical appliances can be used for 7000W generators?

A:Seven kilowatts of generator power is enough to run any high-power appliance in the house. In addition, the inverter generator can provide more pure and stable power.


Q:Is it safe to leave a generator on all night?

A:Unlike standby generators, our Household Quiet Cost-effective Gasoline Generator  are designed to run for shorter increments of time – typically about 6-12 hours. These machines will come in handy for RVs on camping trips or to power certain home appliances in an emergency but are not recommended for use during long-term power outages.


Q:How long is the product warranty period?

A:Our products have a one-year warranty period (prerequisite: in case of unintentional damage).


Product Specification


Model Hi7500EB/Hi9500EB/Hi12500EB
Rated Power Output 7000W/9000W/11000W
Max Power Output 7500W/9500W/12000W
Rated Voltage 230V/110V/380V(can customize)
Power Facter 1.0
Waveform Distortion Rate/% ≦3%
Noise Level (at 7m) ≦97dB
Overload Protection AC Frequency converter overcurrent protection program control
Operating Altitude
≦1000m
Frequency 50Hz/60Hz
Model HH190F/HH192F/HH194
Type Single cylinder,4-stroke,Forced air cooling,Overload valve
Displacement 420cc/460cc/500cc
Fuel Unleaded Gasoline
Fuel Tank 25L
Engine oil volume 1.1L
Ignition plug model F7RTC/FTTC
Starting System Manual start/Electric start
Dimension(L*W*H) 605*525*625mm
G.W. 60KG/65KG/75KG

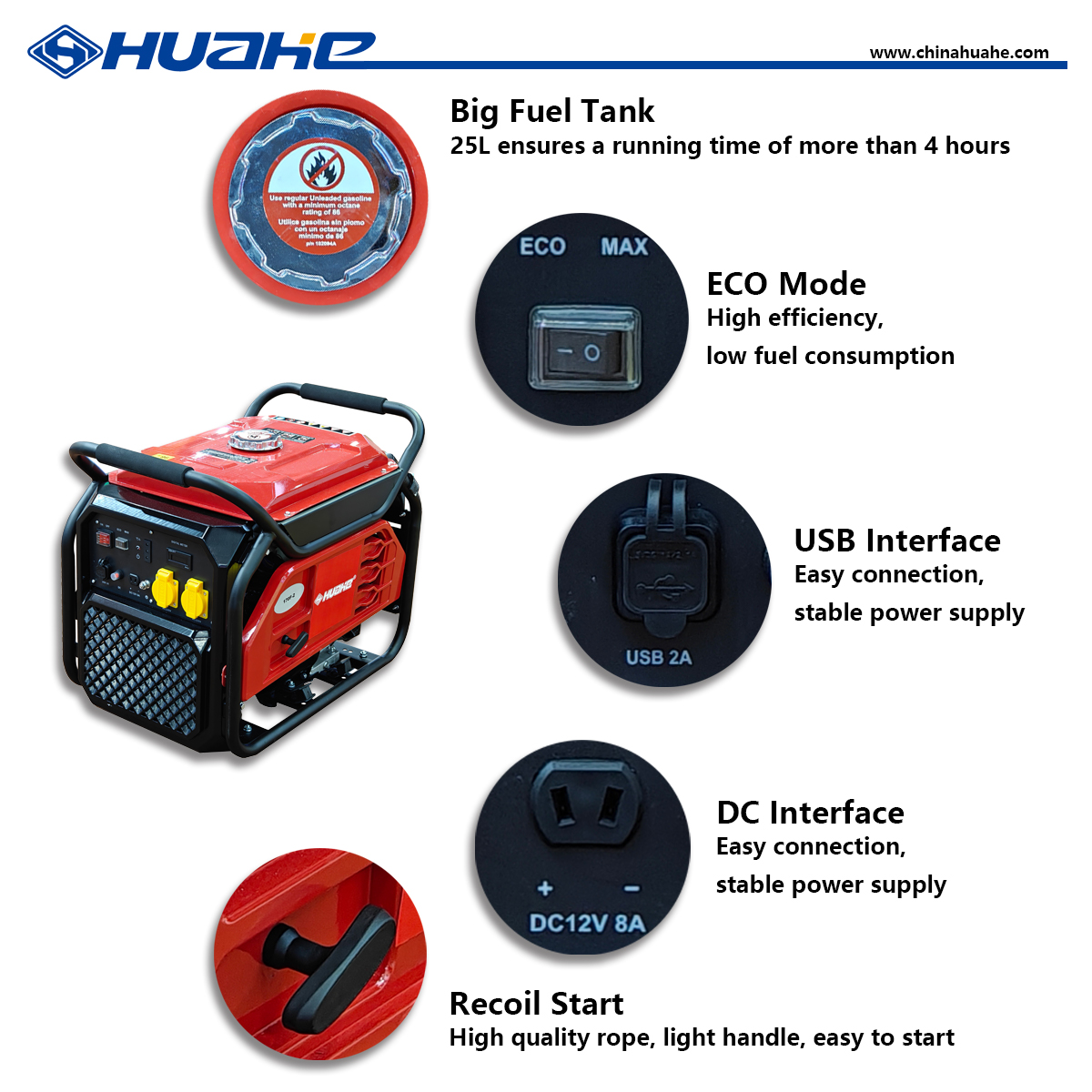

Product characteristics


Hi7500E产品细节图


1. Powerful power

The rated output power of the Hi7500E generator is 7 kW, which can meet the electricity demand of different occasions.

2. Inverter technology

Hi7500E generator adopts advanced inverter technology, the generator waveform distortion rate is less than or equal to 3%, and the output voltage or current waveform is close to the ideal state

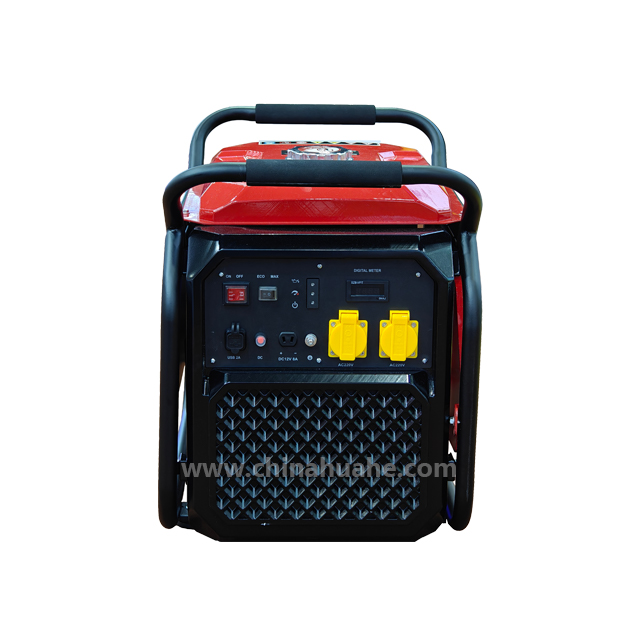

3. Multifunctional panel

The Hi7500E generator is equipped with a multifunctional panel for an intuitive operating experience. The panel includes energy-saving mode, visual digital voltage meter and other practical functions. In addition, there are two 230-volt AC sockets and a 12-volt DC interface USB jack, so you can charge multiple devices at the same time.

4. Durable structure

Made of durable materials, the Hi7500E generator is compact and earthquake-resistant.

5. Security features

In order to ensure the safety of the user and the stable operation of the equipment, the inverter generator is equipped with overload protection, low oil shutdown and other safety Settings.

6. Parameters can be customized

The voltage and frequency of the generator can be customized according to the standards of different countries and regions. In addition, if users need a more portable generator, they can also choose to install handrails and wheels for easy movement and transportation.


Core Parameter Comparison


Performance Dimension Hi7500EB Hi9500EB Hi12500EB Traditional Models
Rated/Peak Power 7kW/7.5kW 9kW/9.5kW 11kW/12kW Overstated power + Insufficient buffer
Voltage Compatibility ✅ Double-voltage design(homeuse/industry power) ✅ Double-voltage design(homeuse/industry power) ✅ Double-voltage design(homeuse/industry power) ❌ Single-voltage fixed
Waveform Accuracy ≤3% Distortion (G1 level) ≤3% Distortion (G1 level) ≤3% Distortion (G1 level) ≥8% Distortion (G3 level)
Engine Technology HH190F OHV Engine HH192F OHV Engine HH194 OHV Engine Outdated side-valve architecture


Solution for Scene Pain Points

1.Voltage Crisis in Overseas Construction Teams

Challenges: 380V industrial equipment and 230V power tools are present simultaneously at sites in Asia, Africa, and Latin America.

Solution: ▶️ Single machine with dual voltages - no need to carry multiple generators or transformers

2. Cutting-edge technology for filming and video production

Challenges: Precise equipment damaged due to power pollution.

Solution: ▶≤3% waveform distortion (meeting medical equipment power supply standards)

               ▶Frequency conversion overload protection: instantly cuts off abnormal current

3. High-altitude emergency rescue

Challenges: Power drops sharply at altitudes above 1000 meters.

Solution: ▶ Full power output within 1000m altitude (based on HH194 engine boost technology)

               ▶ 25L fuel tank + intelligent fuel consumption control: extends continuous power supply time by 40%
