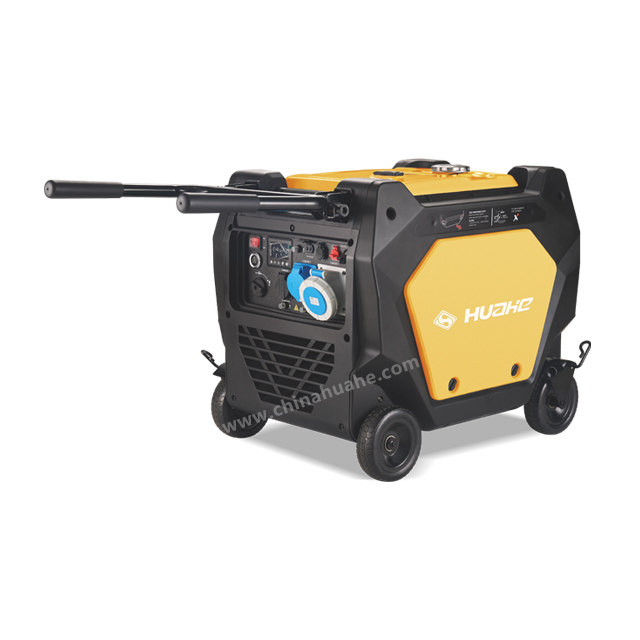

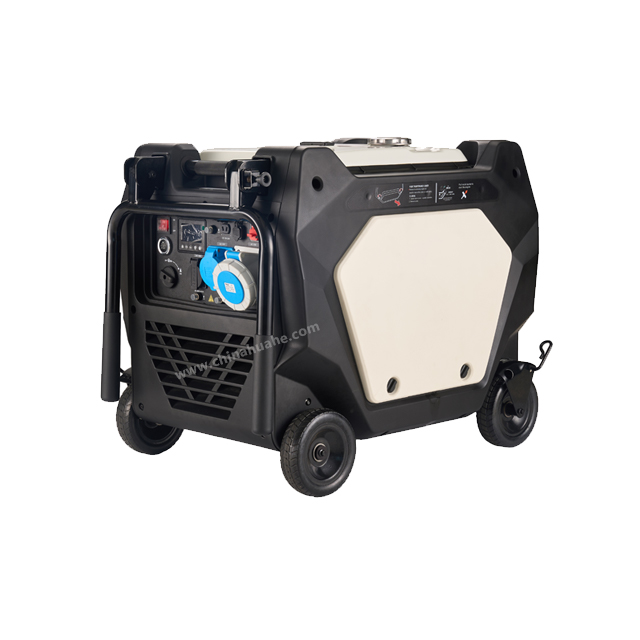

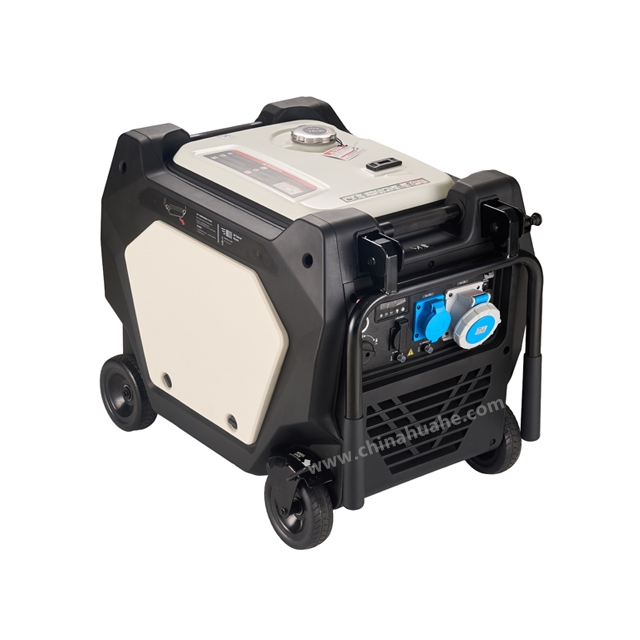

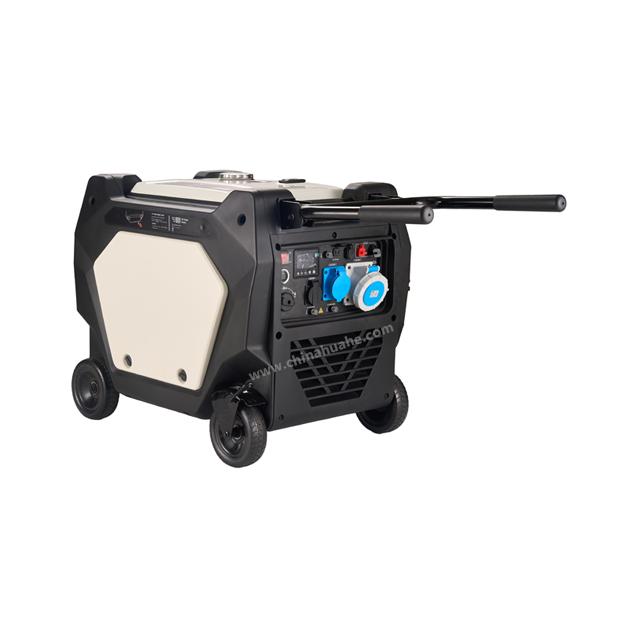

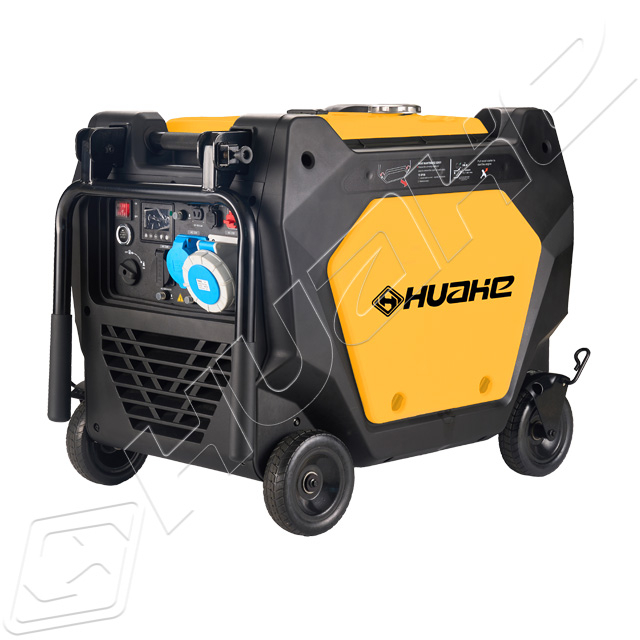

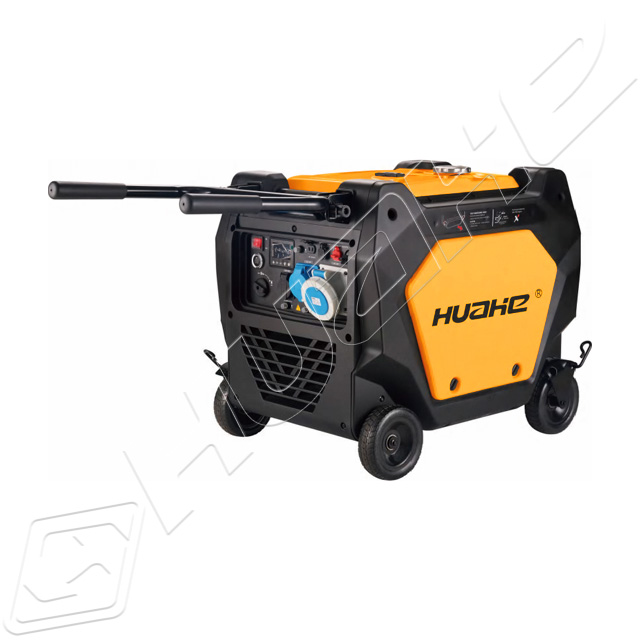

Huahe 9 Kw Electric Start 110V/230V/380V Portable Power Inverter Gasoline Generator

A Huahe 9 Kw Electric Start 110V/230V/380V Portable Power Inverter Gasoline Generator , Suitable for people who need backup.
Expiration Date:1 Year
Customization:Yes
Rated Voltage:230V/110V/380V
Noise level(at 7m):≦70dB
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • Hi9500ES

  • Huahe

Product Overview

Developed by Huahe, this 9 kW electric start portable silent variable frequency gasoline generator is designed for users who pursue efficient, convenient and quiet power consumption experience. Whether it is home backup power, outdoor camping, or site construction, it can provide you with stable and reliable power support.

  • 9 kW high power: strong power, easily cope with a variety of electrical equipment, to meet your diversified electricity needs.

  • Electric start design: bid farewell to the tedious hand start, key start, save time and effort.

  • Silent operation: With advanced silent technology, the operating noise is 70dB at 7 meters away from the generator, creating a quiet and comfortable environment for you.

  • Frequency conversion technology: stable output current, effective protection of your electrical equipment, energy saving and environmental protection.

  • Portable design: Specially equipped with moving wheels and handlebars, the wheels have brake Settings for easy movement and transportation.

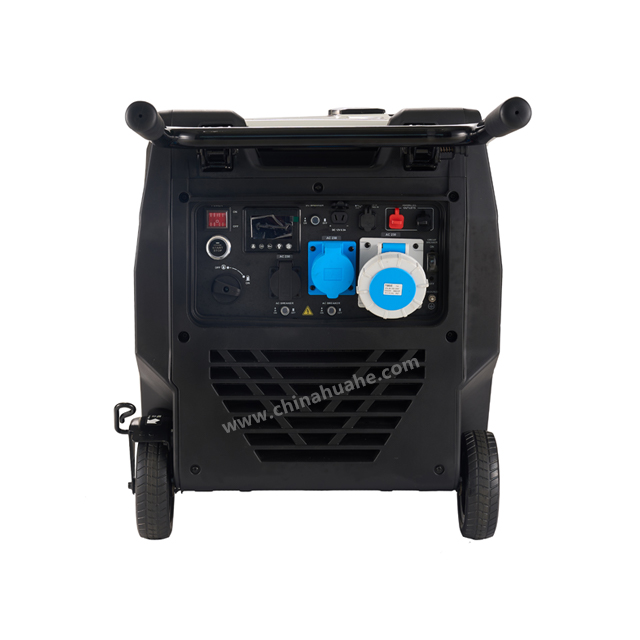

  • Multi-function panel: Generator panel integrates a variety of practical functions, easy to operate, at a glance. The following is the panel function:

  • Circuit breaker: overload protection, safe and reliable.

  • USB interface: easy to charge electronic devices such as mobile phones and tablets.

  • Multiple AC output sockets: Provide stable 230V/110V(voltage is configured according to national and regional standards) alternating current to meet the needs of various electrical appliances.

  • Dc output socket: can charge batteries and other devices.

  • Electronic screen voltmeter: real-time display of output voltage, easy to monitor.


Choose the 9 kW electric start portable silent variable frequency gasoline generator developed by Huahe.

You will get:

  • Strong and stable power output

  • Convenient and comfortable use experience

  • Safe and reliable quality assurance

If you want to know the specific specifications please click the specifications table on the right.Or contact us today for more product information!



Product Specification

Generator Model Hi9500ES
Generator Type Inverter Generator
Frequency 50Hz/60Hz
Rated Voltage 230V/110V/380V
Rated Power Output 9000W
Max Power Output 9500W
Power Facter 1.0
Waveform Distortion Rate ≤3%
Noise Level (at 4m) ≤70dB
Overload Protection AC Frequency converter overcurrent protection program control
Operating Altitude ≤1000m
Engine Model HH194F
Engine Type Single cylinder,4-stroke,Forced air cooling,Overload valve
Displacement 500cc
Fuel Type Unleaded gasoline
Fuel Tank Capacity 33L
Engine oil volume 1.1L
Ignition plug model F7RTC/FTTC
Starting System Electric start
Dimension(L*W*H) 848*645*710mm
Net weight 105kg


PRODUCT FEATURE

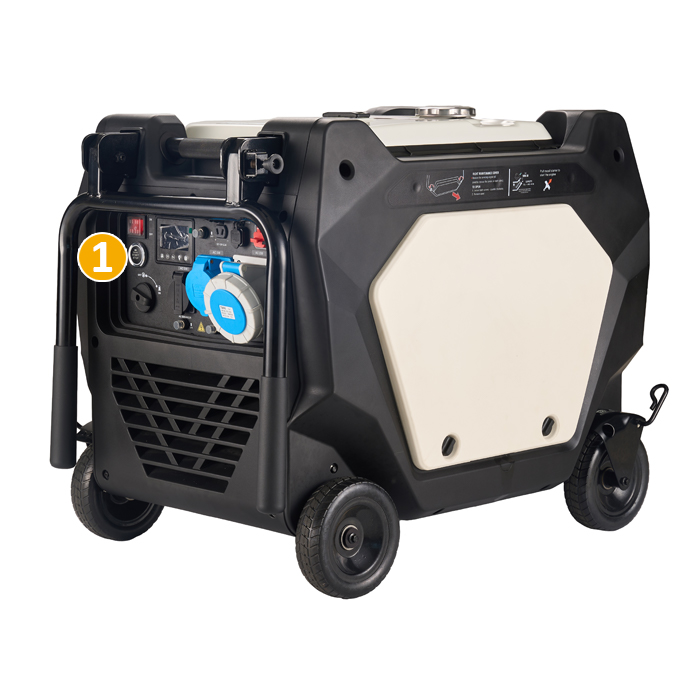

  • REMOTE & PUSH BUTTON START/STOP
    You can start the generator easily, every time.
  • DIGITAL DISPLAY
    You can monitor the five states of the generator by make it, such as the output.

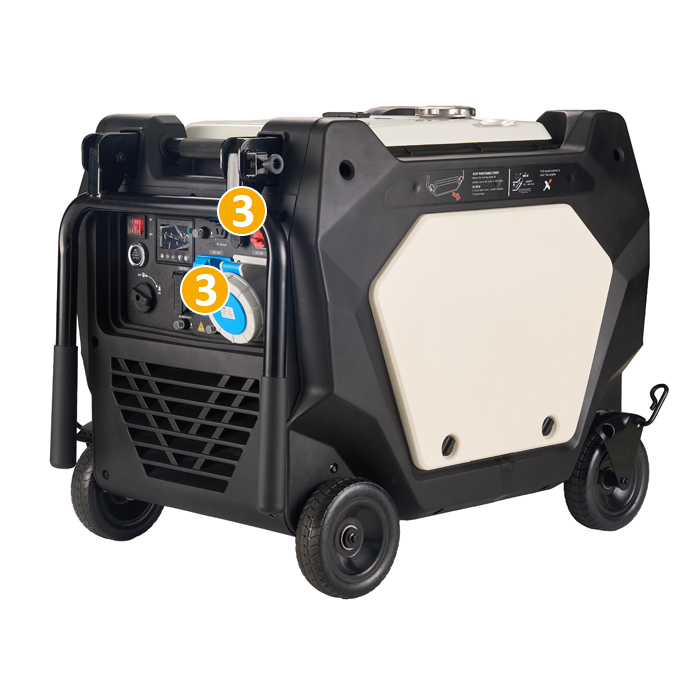

  • MULTIPLE POWER SUPPLY OPTIONS
    You can charge your electrical appliances through various means. For instance, through AC output, we offer three different specifications. Besides, DC output and USB interface as well as parallel output are also provided.

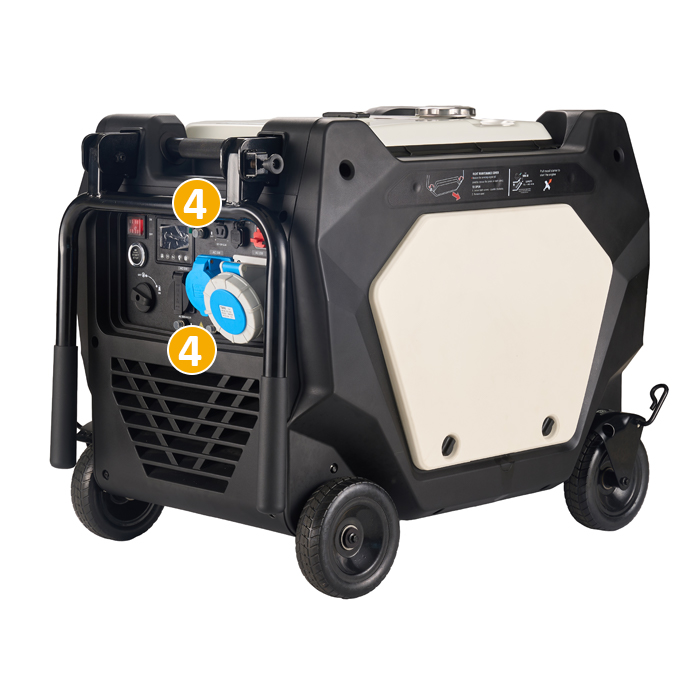

  • OVERLOAD PROTECTION
    Overload protection: You can protect circuit equipment and personnel safety by manually operating the circuit breaker. We have AC breaker, DC breaker and circuit breakers.
  • REMOTE & PUSH BUTTON START/STOP
    You can start the generator easily, every time.
    video
  • DIGITAL DISPLAY
    You can monitor the five states of the generator by make it, such as the output.
    快递包裹,箱子(1)
  • MULTIPLE POWER SUPPLY OPTIONS
    You can charge your electrical appliances through various means. For instance, through AC output, we offer three different specifications. Besides, DC output and USB interface as well as parallel output are also provided.
    3d(1)
  • OVERLOAD PROTECTION
    Overload protection: You can protect circuit equipment and personnel safety by manually operating the circuit breaker. We have AC breaker, DC breaker and circuit breakers.
    资格认证(1)
Core Product Features
1. Ultra-quiet Variable Frequency Technology - ≤70dB low-noise operation (7-meter distance), superior to industry counterparts - ≤3% waveform distortion rate, protects precision equipment (such as medical instruments, servers) 2. Multi-voltage Intelligent Output - Adaptive to 110V/230V/380V three voltages, compatible with global power standards - Dual frequency switching at 50Hz/60Hz, suitable for different regional power grids 3. Efficient Power Engine - HH194F single-cylinder four-stroke engine (500cc displacement), with forced air cooling and overload valve dual protection - 33L large fuel tank for extended range, 1.1L low oil consumption, reducing operation and maintenance costs 4. Industrial-grade Protection Design - Frequency converter overcurrent protection program control, stable operation within an altitude of 1000m - Compact structure of 848×645×710mm, lightweight weighing 105kg， convenient for mobile deployment .
Product Feature Comparison
| Feature | Hi9500ES | Conventional Level Generators |
| Noise Control | ≤70dB (7-meter) | 100-105dB |
| Voltage Compatibility | 110V/230V/380V three voltages | Single/Dual voltages |
| Waveform Purity | ≤3% distortion rate | 5-8% distortion rate |
| Startup Method | Electric start + emergency mechanical backup | Manual pull cord start |
| Customized Services | Supports (power/interface customization) | None |

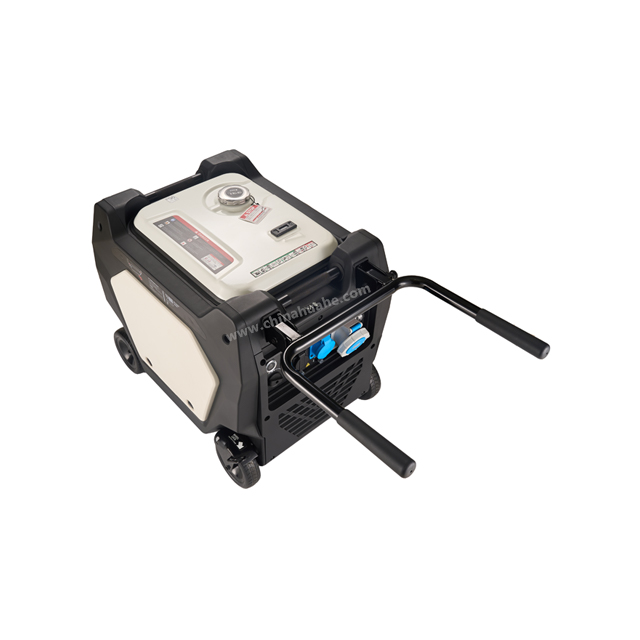

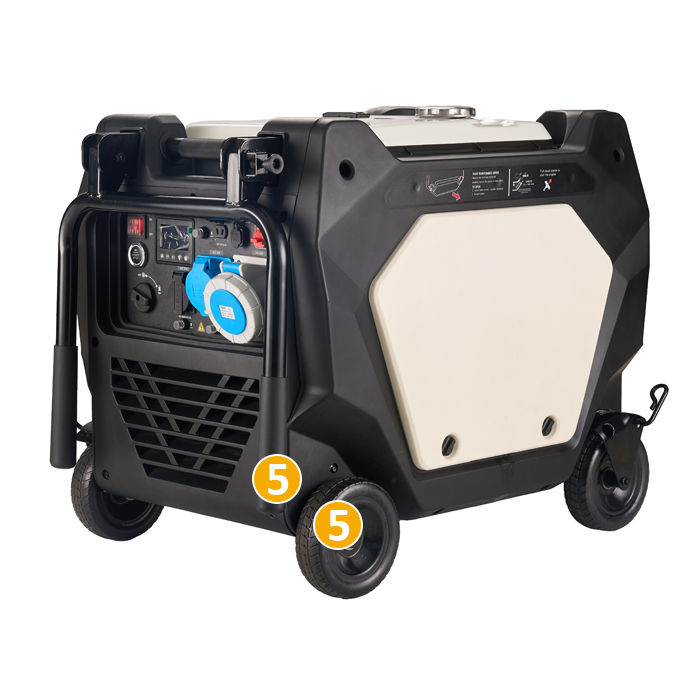

  • PORTABLE TYPE
    You can easily move the generator to any place by using the handrails and wheels. The wheels are equipped with brakes, so there is no need to worry about the generator slipping away.
  • SILENT TYPE
    Super queit enclosure protects components & absorbs sound.
  • LARGE FUEL TANK
    The generator is equipped with a 33L large fuel tank capacity, and it can run continuously for an extremely long time when fully loaded.

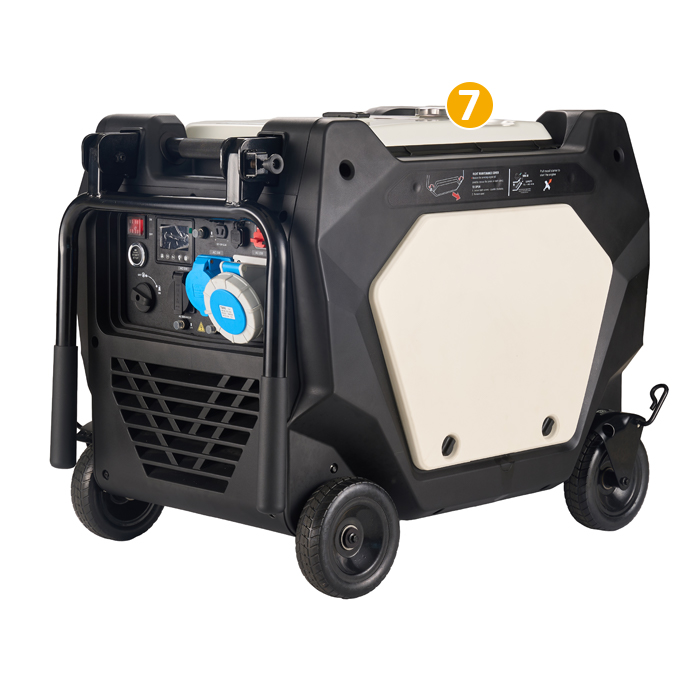

  • FUEL GAUGE
    The function of the fuel gauge of the generator is to indicate the remaining fuel quantity in the fuel tank, helping the operators to promptly understand the fuel status and thereby judge whether refueling is needed or not, so as to avoid the generator stopping due to fuel exhaustion.
  • PORTABLE TYPE
    You can easily move the generator to any place by using the handrails and wheels. The wheels are equipped with brakes, so there is no need to worry about the generator slipping away.
    video
  • SILENT TYPE
    Super queit enclosure protects components & absorbs sound.
    快递包裹,箱子(1)
  • LARGE FUEL TANK
    The generator is equipped with a 33L large fuel tank capacity, and it can run continuously for an extremely long time when fully loaded.
    3d(1)
  • FUEL GAUGE
    The function of the fuel gauge of the generator is to indicate the remaining fuel quantity in the fuel tank, helping the operators to promptly understand the fuel status and thereby judge whether refueling is needed or not, so as to avoid the generator stopping due to fuel exhaustion.
    资格认证(1)
PRODUCT HIGHLIGHT
PRODUCT IDEALUSE
Outdoor activities and work
The 9kw portable silent variable-speed gasoline generator, due to its lightweight and easy-to-carry features, has extensive applications in outdoor activities and work. For instance, camping, picnics, outdoor photography, forest exploration, etc., it can provide power support for these activities.
Family emergency backup
In the event of natural disasters, power outages, etc., this generator can serve as an emergency power source for families.
Construction site
During construction site work, due to the need for mobile operations, this generator can provide stable power support, supplying power to construction equipment and lighting, etc.
Temporary power demand
In temporary activities, exhibitions, performances, etc., this generator can provide temporary power demand to ensure the smooth progress of the activities.
WHAT CAN YOU POWER?

The following are specific examples of common household appliances and their power requirements (classified by power, with more than 10 categories):

1. Household appliances
Air conditioners: A 1.5-horsepower inverter air conditioner (about **1000-1500W**) can power 2-3 units simultaneously. Electric water heaters: Instantaneous (8000-9000W) should be used alone, while storage type (1500-3000W) can be used with other appliances. Induction cooktops (2000-2200W) or electric ceramic cooktops (1500-2000W). Microwave ovens (1000-1500W).

2. Kitchen equipment
Electric rice cookers (500-1000W). Blenders/juicers (800-1200W). Commercial freezers (200-500W, with a starting power of about 1500W).

3. Power tools
Welding machines: Small (2000-5000W), extra capacity should be reserved. Angle grinders/drills (500-1500W).

4. Outdoor equipment
Electric grills (1500-2000W). Camping heaters (1000-2000W).

5. Office/Entertainment
Desktop computer + monitor (300 - 600W). Projector (200 - 500W). Audio system (500 - 1000W).

6. Emergency Equipment
Household water pump (500 - 1500W). Medical oxygen generator (300 - 600W).

7. Other High-Power Devices
Electric vehicle charging: slow charging (1500 - 3000W), but voltage compatibility needs to be confirmed.

Notes to be Observed
Starting power: The starting power of motor-driven appliances (such as refrigerators and water pumps) may double, so a margin should be reserved. Total power: The total power of all appliances used simultaneously should be ≤ 9000W. Inverter advantage: The silent inverter generator is more friendly to precision appliances (such as computers and medical equipment) with less voltage fluctuation.
