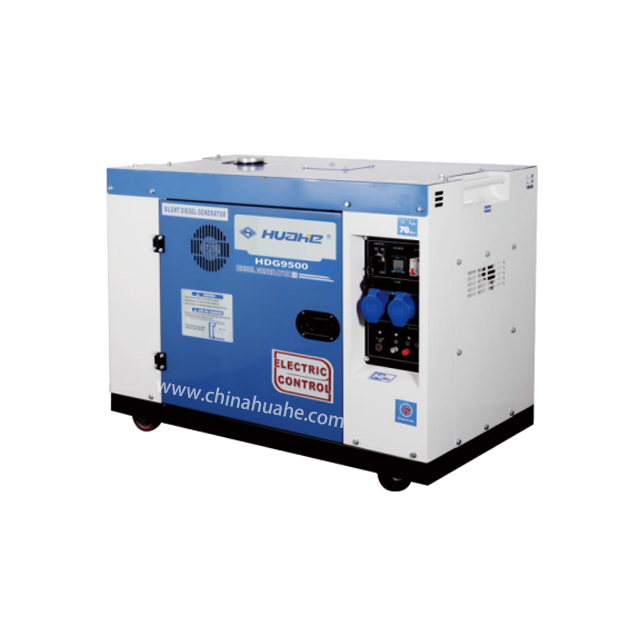

High Power Electric Start Roller Diesel Generator

A High Power Electric Start Roller Diesel Generator,Suitable for people who need long-term backup power.

Expiration Date:1 Year
Customization:Yes
Rated voltage:230V
Frequency(Hz):50Hz
Voltage(A.C)(V):230V
D.C output V/A：12V/8.3A
Insulation Level:H
Excitation Method:Brushed Self Excitation

Quantity:
Availability:





Inquire Add to Basket

Model:
HDG9500
Brand:
HuaHe

Overview

The HDG9500 is a compact, silent diesel generator designed for reliable backup and primary power in residential, commercial, and light industrial applications. With a rated output of 6.6/8.3kVA and maximum output of 7.5/9.3kVA, it delivers stable 230V 50Hz power. Featuring a single-cylinder, four-stroke, air-cooled vertical engine (HH195FE, 0.532L displacement, 20.0:1 compression ratio), this unit combines fuel efficiency with robust performance. The electric start, DC output (12V/8.3A), and compact dimensions (910x530x840mm, 175kg) make it an ideal choice for noise-sensitive environments.

FAQ

Q1: Is the HDG9500 really silent?

A: Yes – it features a fully enclosed acoustic canopy that reduces operational noise to approximately 72 dBA at 7 meters, suitable for residential use.

Q2: What appliances can it run?

A: Rated 6.6kVA continuous (approx. 5.3kW). It can power a refrigerator, water pump, lighting, TV, small AC unit, and power tools simultaneously – up to 7.5kVA surge.

Q3: Does it come with a battery?

A: The electric start system requires a 12V battery (not always included – check with supplier). The DC output can recharge it.

Q4: How often should I change oil?

A: First oil change after 20 hours, then every 100-150 hours. 1.65L capacity (SAE 10W-30 or 15W-40 diesel oil).

Q5: Is it suitable for 400V three-phase?

A: No – this model provides 230V single-phase only. For 400V, see HDG7500 or HDG12000.

Q6: What is the warranty?

A: Typically 1 year .

Product Features

· Silent Operation – Advanced soundproof casing minimizes noise for residential or night-time use.

· Reliable Power – Rated 6.6/8.3kVA (max 7.5/9.3kVA) at 230V/50Hz, suitable for power tools, appliances, and small workshops.

· Fuel-Efficient Engine – HH195FE diesel engine with 20.0:1 compression ratio and 0.532L displacement delivers 8.0kW engine power, optimizing fuel consumption.

· Electric Start – Easy push-button start eliminates manual recoil pulling.

· DC Output – 12V/8.3A for battery charging or DC devices.

· Brushed Self-Excitation – Stable voltage regulation with H-class insulation for high-temperature tolerance.

· Compact & Portable – 910x530x840mm size, 175kg weight with built-in wheels and handle (assumed) for mobility.

· Large Oil Capacity – 1.65L oil sump extends service intervals.

Comparison Advantage

Feature	HDG9500	Other (e.g., 8kVA open-frame)
Starting system	Electric start + backup recoil	Recoil only
Fuel efficiency	compression ratio, lower consumption	Lower compression (~18:1)
Build quality	HH195FE cast iron cylinder liner	Aluminum bore (shorter life)
DC output	12V/8.3A standard	Usually not available
Weight	175kg – robust vibration dampening	Lighter but noisier

Key advantage: The HDG9500 offers silent operation without power compromise – most competitors at this kVA range are open-frame, requiring external enclosures that increase cost and reduce cooling.

Pain Point Solutions

Customer Pain Point HDG9500 Solution

Noise complaints from neighbors Soundproof canopy allows operation in residential areas at night.

Hard pulling on recoil starters Electric start with key or button, plus backup recoil.

Frequent refueling High compression ratio diesel engine reduces fuel consumption by ~15% vs. similar units.

Overheating in long runs Vertical air-cooled design with optimized airflow; H-class insulation withstands 180°C.

No battery charging option Built-in 12V/8.3A DC output charges batteries directly.

Heavy to move Compact size (910x530mm footprint) and wheel kit (optional/standard) improve portability.

commercial diesel generators for sale used marine diesel generators for sale Electric Start Diesel Generator high power generators for sale high efficiency diesel generator highest rated portable generators high power portable generator High Power Diesel Generator diesel whole home generator backup diesel generator commercial

Model	HDG9500
Rated Power Output	6.6/8.3KVA
Max Power Output	7.5/9.3KVA
Frequency	50Hz
Rated Voltage	230V
DC OUTput	12V8.3A
Excitation Method	Brushed Self Excitation
Engine Type	Single Cylinder,Four Stroke,Air Cooled,Vertical
Insulation Level	H
Bore*Stroke	92*75
Engine Model	HH195FE
Displacement	0.532L
Compression Ratio	20.0:1
Engine Power	8.0KW
Starting System	Electric Start
Engine Oil Capacity	1.65L
LWH/mm	910530840
Weight	175KG
