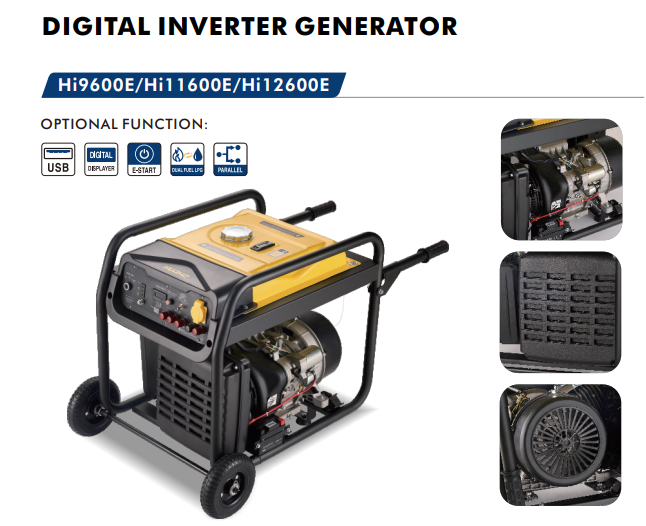

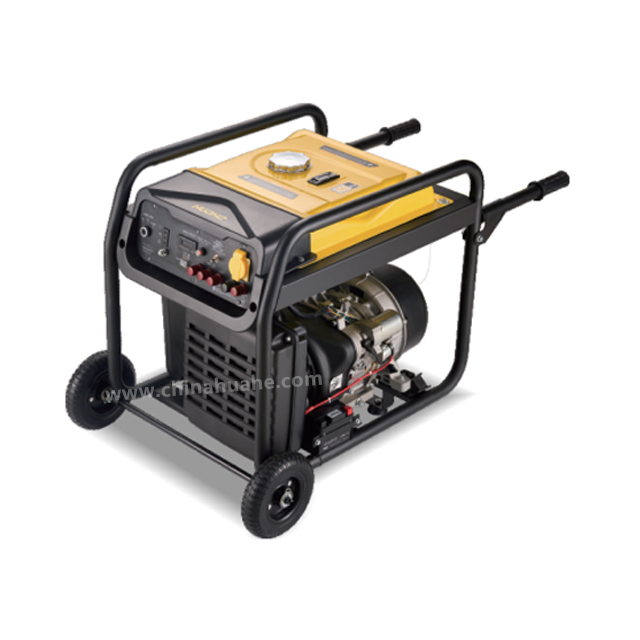

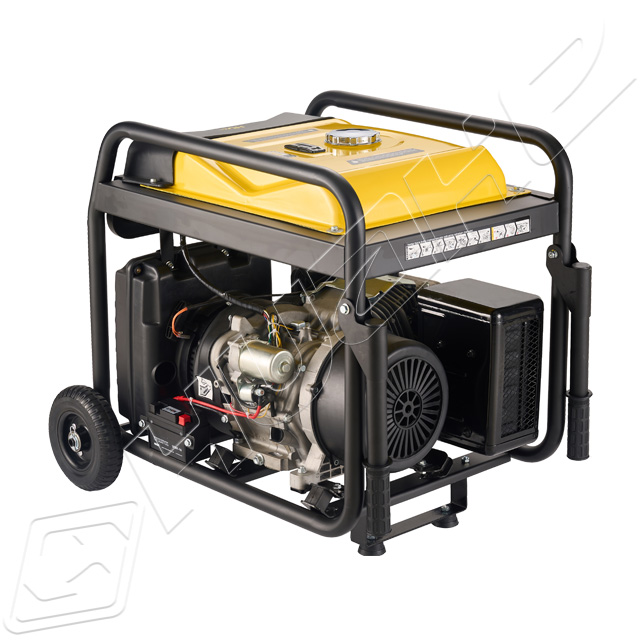

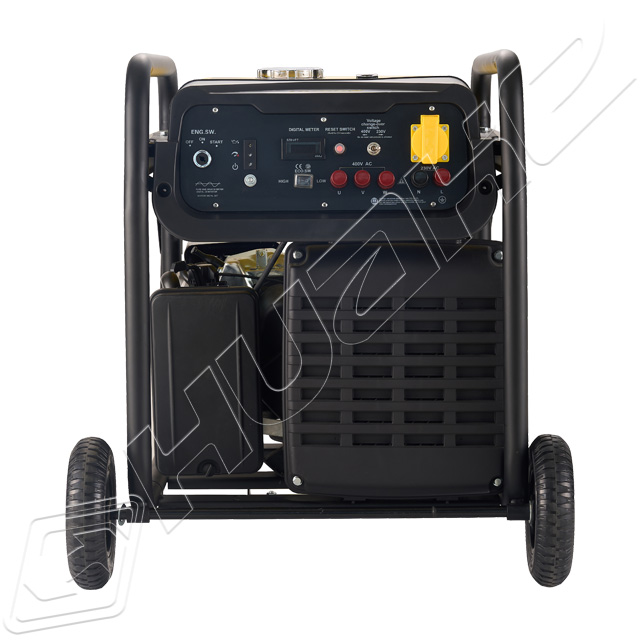

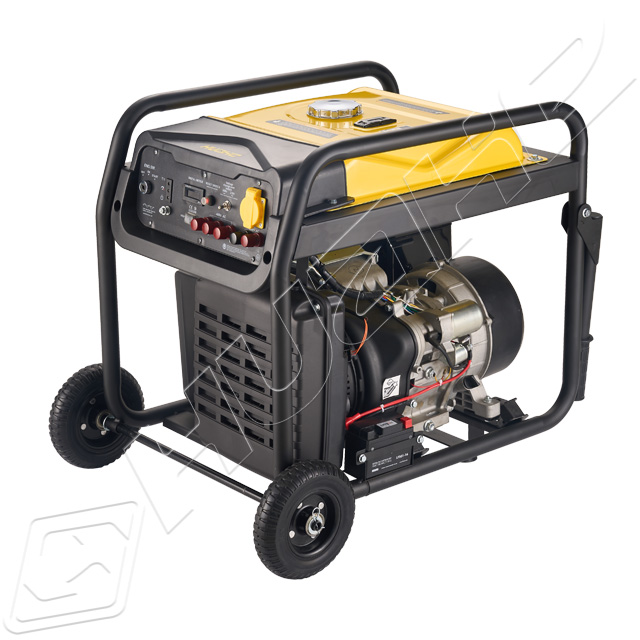

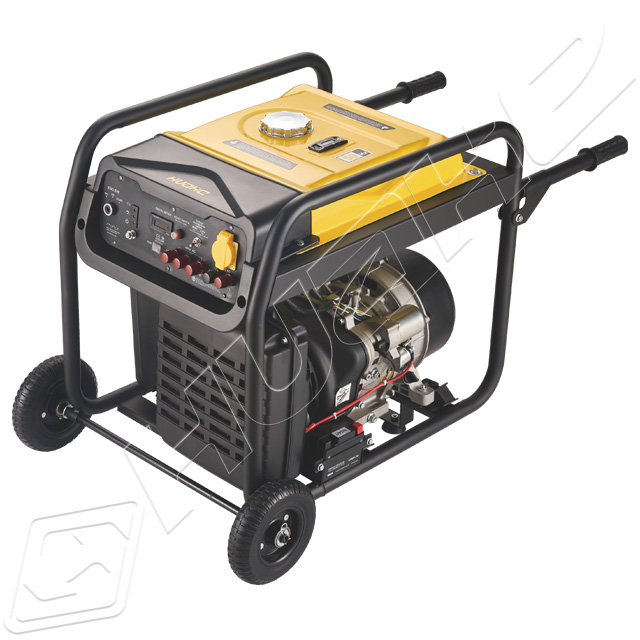

Hi9600E/Hi11600E/Hi12600E
Huahe
| Model | Hi9600E | Hi11600E | Hi12600E | |
| Generator | Type | Inverter Generator | ||
| Frequency | 50Hz/60Hz | |||
| Rated Voltage | 230V/110V/380V | |||
| Rated Power Output | 9000W | 10000W | 11000W | |
| Max Power Output | 9500W | 11000W | 12000W | |
| Power Facter | 1.0 | |||
| Waveform Distortion Rate/% | ≤3% | |||
| Noise Level (at 7m)/dB | ≤97dB | |||
| Overload Protection AC | Frequency converter overcurrent protection program control | |||
| Operating Altitude | ≤1000m | |||
| Engine | Model | HH192F | HH194 | HH196 |
| Type | Single cylinder,4-stroke,Forced air cooling,Overload valve | |||
| Displacement/cc | 460cc | 500cc | 550cc | |
| Fuel Type | Unleaded gasoline | |||
| Fuel Tank Capacity/L | 25L | |||
| Engine oil volume/L | 1.1L | |||
| Overall Dimensions | Ignition plug model | F7RTC/FTTC | ||
| Starting System | Electric start | |||
| Dimension(L*W*H)/mm | 710*520*615mm | |||
| Net weight/kg | 65-75kg | |||
The color, logo, packaging box, starting method of this generator can be customized according to the needs of customers.
Huahe's new 9 kW /10 kW /11 kW electric start portable variable frequency generator not only integrates advanced technology and superior performance, but also is designed with portability and durability in mind to cope with diversified market environments. The following is an analysis of the correctness of choosing our Huahe products from the perspective of product characteristics, market advantages and potential markets.
Product characteristics
1. Powerful power output: We provide variable frequency generator can adapt to various power needs, this generator has 9 kW, 10 kW and 11 kW power output can be selected, to ensure a stable and efficient power supply.
2. Electric starting system: The use of advanced electric starting technology, only a simple operation can start the generator, greatly improving the ease of use.
3. Frequency conversion technology: Through advanced frequency conversion technology, our generators can automatically adjust the output frequency and voltage to adapt to different load requirements, while providing more stable power output.
4. Lightweight design: Despite its powerful power, our generator has been designed with a focus on lightness, so that while maintaining performance, this generator is equipped with handles and wheels for easy carrying and mobility.
5. Strong durability: The materials and processes we use ensure the durability of the product, so that it can operate stably in a variety of environments.
6. Safety protection: The equipment is equipped with multiple safety protection measures such as overload protection and short circuit protection to ensure safe use.
Market advantage
1. Leading technology: The use of advanced frequency conversion technology and electric starting system, so that our products in similar products have leading technical advantages.
2. Quality assurance: We have a strong production capacity and quality control system to ensure that every product meets or even exceeds customer expectations.
3. Strong customization ability: We not only provide standard models of generators, but also can customize production according to customer needs to meet various special needs.
4. Wide range of application: whether it is in the construction site, outdoor activities, emergency rescue or temporary power demand and other scenarios, our products can provide stable power support.
5. Price advantage: Huahe has more than 20 years of rich experience in producing generators, which makes our products have a very high cost performance.
Potential market
China and Hi9600E/Hi11600E/Hi12600E products applicable to distributor, selling all kinds of generator is particularly suitable for power unstable countries people often used as a backup power. At present, there are many options for diesel generators on the market, but they cannot meet the efficient and stable product needs of users. Huahe's products can meet the market demand and bring new business opportunities for dealers.
Summary: Our 9 KW /10 kW /11 kW electric start portable variable frequency generator has won market recognition for its powerful power, advanced technology, excellent quality and wide range of application. We believe that this product will bring dealers rich profits and broad market prospects.
PACKAGING
Dimension(L*W*H):710*520*615mm
(The weight of 9 kw-11kw is 65-75 kg)
LOADING
Usually shipped in containers by sea
(If it is a sample, it will be shipped by other ways)
3.Installation and commissioning services: Huahe has more than ten modern production lines, in accordance with international quality standards for equipment installation, commissioning and testing, to ensure the normal operation of generators.
4.After-sales service: remote guidance service; The warranty period is 1 year.
Huahe Heavy Industry Co., Ltd. was established in 1990, has been committed to the development and production of generators and export trade, has rich industry experience, can provide customers with quality service, choose Huahe is the choice of quality.
A:The following are possible causes: the load is too large or too small; Fuel is in short supply; Control system failure; The engine speed is unstable.
A:Huahe is located in Jinqing Town, Luqiao District, Taizhou City, Zhejiang Province, China.
