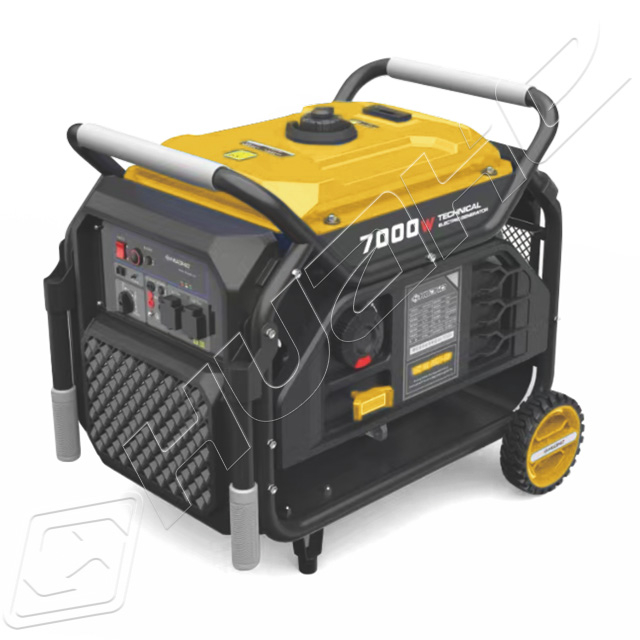

Hi7500EB/Hi9500EB/Hi12500EB
Huahe
Product Overview
Adopting overhead valve (OHV) engine technology, it achieves a power density leap of 7.5kW/9.5kW/12kW in the 420cc/460cc/500cc displacement range. It supports custom voltages such as 230V/110V/380V, and features a dual-voltage design for household voltages (110V/220V/230V/240V) and industrial voltage (380V). Through frequency converter overload protection and a waveform distortion rate of ≤3%, it meets the ISO8528 G1 compliance level for power output. With a compact structure of 60kg/65kg/75kg (605×525×625mm), it combines a 25L fuel range and ≤97dB acoustic suppression, providing a compliant power solution for overseas engineering, film shooting, and emergency rescue.
Product Specification
Model | Hi7500EB/Hi9500EB/Hi12500EB |
Rated Power Output | 7000W/9000W/11000W |
Max Power Output | 7500W/9500W/12000W |
Rated Voltage | 230V/110V/380V(can customize) |
Power Facter | 1.0 |
Waveform Distortion Rate/% | ≦3% |
Noise Level (at 7m) | ≦97dB |
Overload Protection AC | Frequency converter overcurrent protection program control |
Operating Altitude | ≦1000m |
Frequency | 50Hz/60Hz |
Model | HH190F/HH192F/HH194 |
Type | Single cylinder,4-stroke,Forced air cooling,Overload valve |
Displacement | 420cc/460cc/500cc |
Fuel | Unleaded Gasoline |
Fuel Tank | 25L |
Engine oil volume | 1.1L |
Ignition plug model | F7RTC/FTTC |
Starting System | Manual start/Electric start |
Dimension(L*W*H) | 605*525*625mm |
G.W. | 60KG/65KG/75KG |
Product characteristics
1. Powerful power
The rated output power of the Hi7500E generator is 7 kW, which can meet the electricity demand of different occasions.
2. Inverter technology
Hi7500E generator adopts advanced inverter technology, the generator waveform distortion rate is less than or equal to 3%, and the output voltage or current waveform is close to the ideal state
3. Multifunctional panel
The Hi7500E generator is equipped with a multifunctional panel for an intuitive operating experience. The panel includes energy-saving mode, visual digital voltage meter and other practical functions. In addition, there are two 230-volt AC sockets and a 12-volt DC interface USB jack, so you can charge multiple devices at the same time.
4. Durable structure
Made of durable materials, the Hi7500E generator is compact and earthquake-resistant.
5. Security features
In order to ensure the safety of the user and the stable operation of the equipment, the inverter generator is equipped with overload protection, low oil shutdown and other safety Settings.
6. Parameters can be customized
The voltage and frequency of the generator can be customized according to the standards of different countries and regions. In addition, if users need a more portable generator, they can also choose to install handrails and wheels for easy movement and transportation.
Core Parameter Comparison
Performance Dimension | Hi7500EB | Hi9500EB | Hi12500EB | Traditional Models |
Rated/Peak Power | 7kW/7.5kW | 9kW/9.5kW | 11kW/12kW | Overstated power + Insufficient buffer |
Voltage Compatibility | ✅ Double-voltage design(homeuse/industry power) | ✅ Double-voltage design(homeuse/industry power) | ✅ Double-voltage design(homeuse/industry power) | ❌ Single-voltage fixed |
Waveform Accuracy | ≤3% Distortion (G1 level) | ≤3% Distortion (G1 level) | ≤3% Distortion (G1 level) | ≥8% Distortion (G3 level) |
Engine Technology | HH190F OHV Engine | HH192F OHV Engine | HH194 OHV Engine | Outdated side-valve architecture |
Solution for Scene Pain Points
1.Voltage Crisis in Overseas Construction Teams
Challenges: 380V industrial equipment and 230V power tools are present simultaneously at sites in Asia, Africa, and Latin America.
Solution: ▶️ Single machine with dual voltages - no need to carry multiple generators or transformers
2. Cutting-edge technology for filming and video production
Challenges: Precise equipment damaged due to power pollution.
Solution: ▶≤3% waveform distortion (meeting medical equipment power supply standards)
▶Frequency conversion overload protection: instantly cuts off abnormal current
3. High-altitude emergency rescue
Challenges: Power drops sharply at altitudes above 1000 meters.
Solution: ▶ Full power output within 1000m altitude (based on HH194 engine boost technology)
▶ 25L fuel tank + intelligent fuel consumption control: extends continuous power supply time by 40%
FAQ
Q:What electrical appliances can be used for 7000W generators?
A:Seven kilowatts of generator power is enough to run any high-power appliance in the house. In addition, the inverter generator can provide more pure and stable power.
Q:Is it safe to leave a generator on all night?
A：Unlike standby generators, our Household Quiet Cost-effective Gasoline Generator are designed to run for shorter increments of time – typically about 6-12 hours. These machines will come in handy for RVs on camping trips or to power certain home appliances in an emergency but are not recommended for use during long-term power outages.
Q:How long is the product warranty period?
A:Our products have a one-year warranty period (prerequisite: in case of unintentional damage).
