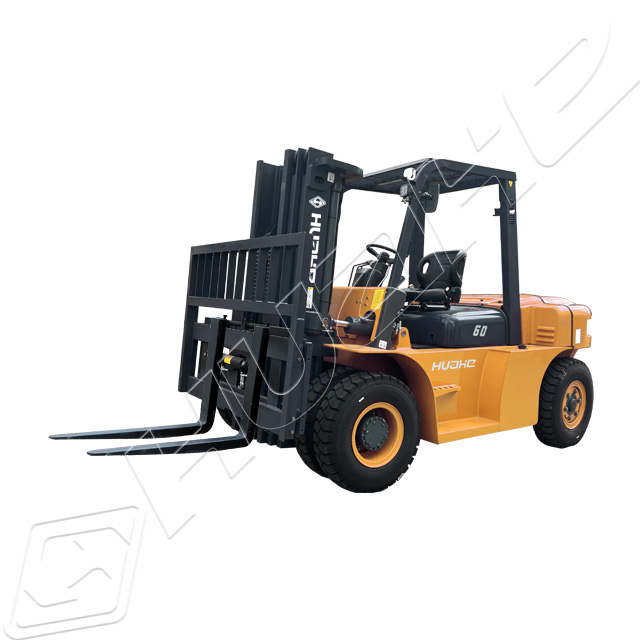

6-Ton Diesel Counterbalance Forklift - Agile Mid-Weight Handling Solution

Product Specification

	1	Model			UNIT	HH60Z
Generals	2	Power Type			-	Diesel
	3	Rated Capacity			kg	7000
	4	Load Center			mm	600
	5	Lift Height			mm	3000
	6	Free Lift Height			mm	190
	7	Fork Size (L*W*T)			mm	1220×150×65
	8	Fork Outside Spread (Min./Max.)			mm	300/1830
	9	Mast Tilt Range (F/R)			deg	6/12
	10	Total Weight			kg	8950
Characteristic&Dimensions	11	Front overhang			mm	590
	12	Overall dimensions	Length to Face of Fork (without fork)		mm	3615
	13		Length to Face of Fork (with fork)		mm	4835
	14		Wheel Width		mm	2000
	15		Mast Lowered Height		mm	2520
	16		Mast Extended Height		mm	4360
	17		Overhead Guard Height		mm	2490
	18	Turning Radius			mm	3410
	19	Min. Right Angle Aisle Width			mm	3755
Performance	20	Travel Speed (unload/full load)			km/h	30/28
	21	Lift Speed (unload/ full load)			mm/s	600/400
	22	Max. Gradeability			%	20
Wheel & Tires                         Drive units	23	Tires		Front	-	8.25-15-14PR
	24			Rear	-	8.25-15-14PR
	25	Tread		Front	mm	1470
	26			Rear	mm	1700
	27	Wheelbase			mm	2250
	28	Min. Ground Clearance		Frame (unload/ full load)	mm	190/160
	29			Mast (unload/ full load)	mm	260/250
	30	Battery			v/ah	2×12/80
	31	Engine		Model	-	Xichai CA6110
	32			Rated Output	kw/r.p.m	85/2000
	33			Rated Torque	n.m/r.p.m	385/2000
	34			Displacement	cc	5560
	35			No. of Cylinder	-	6
	36			Bore×Stroke	mm	101.6×114.3
	37	Transmission		Type	-	Hydraulic
	38			Shift (FWD/RVS)	-	2/2
	39	Operating Pressure			mpa	18

Key Features & Highlights

· Balanced Performance: 6000kg load capacity at 600mm load center addresses routine material handling demands

· Superior Maneuverability: 3410mm turning radius with 3755mm right-angle stacking width enables operation in confined spaces
· Productivity Focused: 30/28 km/h travel speeds (unloaded/loaded) and 600/400 mm/s lift speeds ensure operational efficiency
· Stability Assurance: 8950kg unladen weight combined with 2250mm wheelbase and 6°/12° mast tilt angles provide secure operation
· Economic Operation: Mature Xichai CA6110 engine technology offers straightforward maintenance and controllable operating costs

Competitive Advantages

· Optimized Dimensions: 4835mm overall length (with forks) provides compact footprint in the 6-ton category
· Power System Harmony: 85kW power output with 385N·m torque delivers ideal balance between performance and fuel economy
· Enhanced Accessibility: 190/160mm frame ground clearance and 260/250mm mast clearance adapt to various surfaces
· Precision Control: Hydraulic transmission with 2F/2R shifting and 18MPa operating pressure ensures responsive handling

Pain Point Solutions

Operational Challenge HH60Z Solution
Difficult steering in tight spaces Industry-leading 3410mm turning radius handles confined areas with ease
Insufficient productivity 600mm/s unloaded lifting speed and 30km/h travel speed improve work rhythm
Equipment acquisition cost pressure Proven power system and rational configuration deliver excellent value
Poor multi-site adaptability 20% gradeability and adequate ground clearance suit diverse environments
