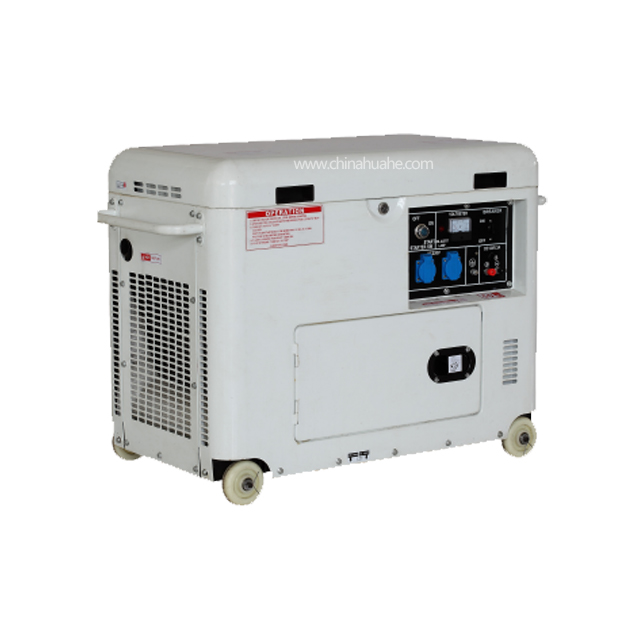

5 Kva Portable Electric Start Low Noise High Quality Diesel Generator
The 5 kW portable electric start silent high quality diesel generator is an advanced power generation equipment with a range of unique product features. The generator is portable and easy to carry outdoors. It is equipped with wheels to make the operation easier, and only needs to push gently to complete the movement, easily meet the needs of users in different occasions.
In addition to being easy to carry, the diesel generator is also very simple to operate. The user only needs to press the power start button to start the generator with one click, without complicated manual operation, saving a lot of time and energy. This will greatly improve the efficiency of use for users, especially those who lack technical knowledge or have limited hand abilities.
In addition, the diesel generator also has the advantage of low noise pollution. We focus on product quality and user experience, and adopt novel mute technology to effectively reduce noise generation. This means that users will not be disturbed by harsh noise when using, and it can also play a role in protecting the surrounding environment.
Most importantly, the quality of the 5 kW portable electric start silent high-quality diesel generator meets international standards. We use high-quality materials and advanced technical processes to ensure the reliability and durability of our products. Whether for outdoor activities or in response to sudden power outages, the generator can provide a reliable power supply and maintain stable performance.
In SUMMARY:
5 kW portable electric start silent high quality diesel generator is a powerful, portable and practical power generation equipment. It has wheels, simple operation, low noise pollution, quality in line with international standards, and can efficiently meet the various needs of users. Whether it's outdoor activities or dealing with sudden power outages, this generator is your reliable partner.
Model | Silent type | ||
5GF | |||
Generator | Type | Revolving field type 2 pole generator | |
Frequency (Hz) | 50 | 60 | |
Cont. Output (KW) | 4.2 | 5 | |
Voltage (A.C)(V) | 230 | 240 (120) | |
Current (A.C)(A) | 18.3 | 20.8 (41.7) | |
Engine speed (r/min) | 3000 | 3600 | |
Phase | Single phase | ||
Power factor (COSΦ) | 1 | ||
Excitation system | Controlled constant self-excitation | ||
D.C output V/A | 12V/8.3A | ||
Operation capacity | 12 hour constant operation | ||
Coupling pattern | Straight shaft coupling | ||
Model | 186FG(E) | ||
Engine | Type | Direct injection vertical, 4-cycle, air-cooled diesel engine | |
Displacement cc (cu.in) | 406 (24.78) | ||
Max. output (KW/rpm) | 6.6 | 7.35 | |
Cont. output (KW/rpm) | 5.9 | 6.6 | |
Starting system | Electric start | ||
Governor system | Centrifugal weight system | ||
Fuel | Diesel light fuel (BS-AL or equivalent) | ||
Fuel tank capacity (L) | 16 | ||
Lube oil capacity (L) | 1.65 | ||
Bore×Stroke | 86×75 | ||
Protection system | Low oil, warning system/Stop device (not for L-series) | ||
Unit | Noise level at 7m dB (A) | 70 | |
Dimension (L×W×H) (mm) | 950×580×740 | ||
Dry weight (kg) | 165 | ||
In 2004, Huahe Heavy Industry Co., Ltd. obtained ISO9001:2008 Certificate. After that, we successively obtained CE certificates related to diesel generator products.
Huahe Heavy Industry Co., Ltd. has long introduced foreign advanced assembly line technology, with more than a dozen production lines to ensure efficient production and timely delivery.
If you have any questions about our products, you can contact our professional team at any time, we are online 24 hours to provide you with consultation services.
Packaging Detail:
Packed in brown carton or color carton
The product size is 915*530*690mm
Loading Detail:
1*20GP container can load 72pcs
1*40HQ container can load 144pcs
