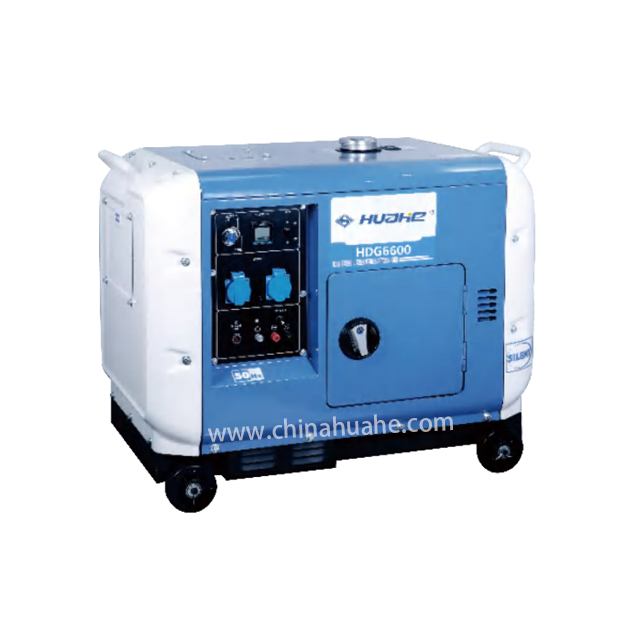

380 Voltage 4000 Watt Roller Electric Start Diesel Generator

  • Frequency(Hz):50Hz
  • Voltage(A.C)(V):380V
  • D.C output V/A:12V/8.3A
  • Operation Capacity:12 hourConstant Operation
  • Nosie Level(at 7m):70dB

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • HDG6600

  • HuaHe

Product Specification


Model
HDG6600
Type
Revolving field type2 pole generator
Frequency
50Hz
Cont.output
4.2 KW
Voltage(A.C)
380V
Current(A.C)
11A
Engine Speed
3000r/min
Phase
Single/Three
Power Facter
1/0.8
Excitation System
Controlled Constant Operation
D.C output
12V/8.3A
Operation Capacity
12 hour Constant Operation
Coupling Pattern
Straight shaft coupling
Engine Model
186FG(E)
Engine Type
Direct Injection Vertical,4-cycle,Air-cooled diesel engine
Displacement(cc) 406
Max.output
6.6KW/rpm
Cont.output
7.35KW/rpm
Starting system
Electric
Governor system centrifugal weight system
Fuel
Diesel light fuel(BS-AL or equivalent)
Fuel Tank Capacity 16L
Lube oil Capacity
1.65L
Bore*Stroke
86*70mm
Protection system
Low oil warningsystem/Stop Device(not for L-series)
Nosie Level(at 7m)
70dB
Dimensions(L*W*H)
950*580*740mm
Dry Weight 165KG

Product Introduction


380 Voltage 4000 Watt Roller Electric Start Diesel Generator - Reliable and Efficient Power Solution for High Voltage Applications


Introducing our 380 Voltage 4000 Watt Roller Electric Start Diesel Generator, a reliable and efficient power solution designed specifically for high voltage applications. This generator offers a robust power output of 4000 watts and is compatible with 380 voltage, making it suitable for powering equipment and appliances that require higher voltage levels. With its electric start feature and roller design, it provides convenience and portability for your power requirements.

Powerful and Reliable Output:

Our 380 Voltage 4000 Watt Roller Electric Start Diesel Generator delivers a high-power output of 4000 watts, ensuring that you have enough power to run equipment and appliances that require 380 voltage. This generator is designed to provide reliable power for high voltage applications, making it ideal for industrial settings, construction sites, and other demanding environments.

Electric Start Feature:

Starting the generator is made easy with the electric start feature. With a simple push of a button, you can start the generator effortlessly, eliminating the need for manual starting. This feature provides convenience and ease of use, especially in situations where quick and hassle-free starting is required.

Roller Design for Portability:

Our generator features a roller design, making it easy to move and transport. The built-in wheels and handle allow you to roll the generator effortlessly, even on rough terrain. This portability feature ensures that you can take the generator wherever you need power, whether it's on a construction site, at an outdoor event, or during emergencies.

Diesel Fuel Option:

Our generator operates on diesel fuel, providing several advantages over gasoline. Diesel fuel is more efficient and offers a longer runtime compared to gasoline. It is also safer to store and less flammable. With a diesel fuel option, you can enjoy a reliable and efficient power source for your generator, ensuring that you have a steady supply of power for your high voltage applications.

Durable and Sturdy Construction:

Our 380 Voltage 4000 Watt Roller Electric Start Diesel Generator is built to withstand the rigors of heavy use and demanding applications. It features a durable and sturdy construction, capable of withstanding rough handling and harsh environments. This ensures long-lasting performance and reliability, even in challenging conditions.

Versatile Power Solution:

Our generator is a versatile power solution that can meet a variety of power needs. It features multiple outlets, including standard household outlets, RV-ready outlets, and additional outlets for powering high voltage equipment. This versatility allows you to power a wide range of devices, making it suitable for industrial settings, construction sites, outdoor events, emergency backup power, and other applications that require 380 voltage.

Safety Features:

Safety is a top priority in our generator design. Our 380 Voltage 4000 Watt Roller Electric Start Diesel Generator is equipped with safety features such as overload protection and low-oil shutdown. These features help prevent damage to the generator and ensure safe operation, providing peace of mind during your power applications.

Conclusion:

For a reliable and efficient power solution for high voltage applications, our 380 Voltage 4000 Watt Roller Electric Start Diesel Generator is the perfect choice. With its high-power output, electric start feature, roller design for portability, durable construction, versatile power capabilities, safety features, and quiet operation, this generator provides the convenience, reliability, and efficient power you need for your high voltage applications. Invest in our 380 Voltage 4000 Watt Roller Electric Start Diesel Generator and experience the reliable and efficient power solution that meets your power requirements for high voltage applications.

Packaging & Loading


运输1

Product Packing

运输2

Product Loading

Company Information
公司1

Company Introduction



员工

Production Department




FAQ

Q:How many hours can a diesel generator run continuously?

A: Our diesel generator can work continuously for 12 hours

Q:What is the safe distance from a diesel generator?

A:We recommend keeping generators at least 15 feet away from structures because CO is slightly lighter than air and easily intersperses with the air. During emergency events (hurricanes, flooding, and earthquakes) the incidents of CO poisoning due to space heaters and generators run indoors increase dramatically.


Q:How long is the product warranty period?

A:Our products have a one-year warranty period (prerequisite: in case of unintentional damage).


Product Overview

Huahe Heavy Industries Co., Ltd., as an industrial pioneer implementing the industrial and trade integration strategy, specializes in the research and manufacturing of power solutions.

We are proud to introduce the 5GF 4.2KW diesel generator set, which is primarily equipped with a 186FG direct injection air-cooled diesel engine and a 2-pole rotating magnetic field constant voltage self-excited generator.

This generator set is specifically designed for the 50Hz power standard (continuous output power 4.2kW), providing flexible power output of 230V single-phase or 380V three-phase (current: 18.3A/11A), perfectly meeting the power demands of households, shops, and small equipment.

Its refined structure (950x580x740mm) and lightweight form (dry weight 165kg), combined with 12-hour uninterrupted operation capability, is a solid backup for emergency backup and mobile power supply.

Huahe, as a staunch practitioner of industrial and trade integration, with a solid manufacturing foundation and a wide network of trade collaborations, not only ensures excellent product quality and worry-free supply, but also can provide efficient and professional batch customization solutions for customers. Whether it is safeguarding the household lights, maintaining the livelihood of small businesses, or assisting professional tools and lighting up outdoor life, the 5GF 4.2KW is your reliable silent power partner. Choose Huahe, choose a calm and assured power guarantee!


Product Core Advantages

1.Precision Power, Outstanding Efficiency: Equipped with a 186FG direct injection four-stroke air-cooled diesel engine (continuous output 5.9kW @ 50Hz), it operates efficiently and stably. It has been specifically optimized for a 4.2kW power output and features complete combustion and good economy (recommended fuel: light diesel meeting BSAL standards). The centrifugal flyweight speed control system precisely regulates the engine speed to 3000 rpm (50Hz), ensuring a constant power generation frequency.

2. Stable power supply, flexible adaptation: The rotating magnetic field 2-pole generator is equipped with an intelligent controlled constant voltage self-exciting system, ensuring highly stable output voltage (230V or 380V AC) in single-phase or three-phase mode. It supports high power factor operation (1.0/0.8), and is compatible with resistive loads (such as incandescent lamps, heaters) and inductive loads (such as small motors, water pumps). The electrical energy quality is pure and reliable.

3. Long-lasting and resilient, providing reliable protection: The design ensures 12-hour continuous operation at full load, with outstanding durability. Standard features include low oil pressure intelligent warning and automatic shutdown protection (except for the L series). It actively prevents engine damage, significantly extending equipment lifespan and enhancing operational safety. The 16L large-capacity fuel tank and 1.65L lubricating oil tank are designed to significantly increase the duration of continuous operation and reduce maintenance frequency.

4. Enjoy convenience and intelligent experience: One-click electric start, operation is effortless and fast. Outstanding silent performance, noise level at 7 meters is only 70dB, making the working environment more friendly. Efficient direct coupling shaft transmission, stable and reliable structure, and easy maintenance. Thoughtfully integrated 12V/8.3A DC output port, convenient for emergency charging of vehicle batteries or small DC devices.


Market Core Competitiveness

  • Industrial-Trade Integration, Source Advantage: Huahe has integrated the entire process of research and development, manufacturing, and trade. It strictly controls quality and costs to ensure that customers receive industrial-grade products with extremely high value for money.

  • Global Trade Network, Agile Response: It has deep cooperation with numerous high-quality trading partners from both domestic and international markets, building a stable and efficient global supply system to ensure sufficient supply and timely delivery.

  • Deep Customization, Exclusive Services: With strong batch customization capabilities, it can flexibly adjust product specifications (such as special voltages, interfaces, brand logos, packaging, etc.) to precisely match the unique project requirements of customers.

  • Durability-Oriented, Quality Assurance: Core components (such as the well-tested 186FG engine) are meticulously manufactured, and the entire machine design adheres to the concept of durability to ensure long-term stable operation.


Precise application scenarios

  • Ensuring core household electricity supply: Providing uninterrupted power for lighting, refrigerator preservation, WiFi routers, and mobile phone charging during power outages, safeguarding the basic order of family life.

  • Emergency power supply for small businesses: Guaranteeing the operation of cash registers, freezers, and basic lighting in convenience stores and small restaurants, preventing business losses and product damage.

  • Reliable power supply for professional service tools: Providing reliable power for electric tools (drills, angle grinders, high-pressure washers) and lighting equipment for outdoor maintenance, cleaning services, and gardening operations.

  • Backup power for small studios/offices: Maintaining the operation of computers, network equipment, and basic lighting to ensure no data loss and business continuity.

  • Outdoor leisure and mobile power replenishment: Supporting camping lighting, use of small appliances, or providing convenient 12V DC charging for RV life batteries and vehicle-mounted equipment.
