HH3900D-V
HuaHe
Product Overview

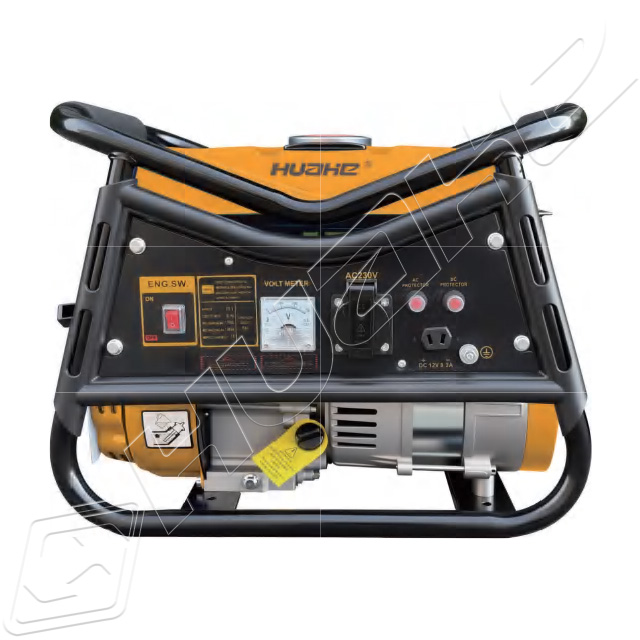

This series of gasoline generators features a unique butterfly-style frame – robust, stable, and easy to transport. Available in 2000W, 2500W, 2800W, 3000W rated output, each unit is tailored to customer needs. Choose between recoil (pull-start) or electric start (push-button). Motor winding can be high-efficiency pure copper or cost-effective aluminum. Powered by single-cylinder, 4-stroke engines (163cc–223cc, 5.5HP–7.5HP) with a 15L fuel tank for long runtime. Ideal for home backup, outdoor work, small construction, shops, and events.

FAQ
Q1: Are 2000W and 3000W models the same size?
A: Similar but slightly different. 2000W/2500W: approx. 605×430×435mm; 3000W: 620×450×445mm. All butterfly frames support stacking.
Q2: How to choose between pure copper and aluminum winding?
A: If you use the generator >10 hours/week or for sensitive equipment (fridge, pump, electronics), choose copper. For occasional emergency backup only, aluminum is fine. Both deliver stable voltage.
Q3: Can it run on natural gas or LPG?
A: Standard is gasoline. Dual-fuel carburetor is available on request (contact us for custom order).
Q4: What is needed for electric start?
A: Electric start kit (starter motor + relay) + 12V battery (7Ah recommended). We can supply the battery or you can buy locally.
Q5: Can I get both 220V and 380V from one generator?
A: Some models (e.g., HH3900-DV) support single-phase 220V and three-phase 380V switchable output. Please specify your voltage requirement when ordering.
Q6: What is the warranty?
A: 1-year whole machine warranty (2 years for copper motor). Consumables (spark plug, air filter) not included.
| Model | HH3900D-V |
| Rated Power Output | 3000W |
| Max Power Output | 3300W |
| Rated Voltage | 220V/380V |
| Rated Current | 13.6A/4.6A |
| Frequency | 50Hz |
| Model | 170F-2 |
| Type | Single cylinder,4-stroke |
| Displacement | 223cc |
| Max output | 7.5HP |
| Fuel | Gasoline |
| Fuel Tank | 15L |
| Starting System | Recoil/Electric |
| Noise level(at 7m) | 96db |
| Dimension(L*W*H) | 620*450*445mm |
| G.W. | 40KG |
Our products have a one-year warranty period (prerequisite: in case of unintentional damage)
Key Features
· Butterfly Frame – Ventilated butterfly-shaped design improves heat dissipation, lowers center of gravity, and stands out visually.
· Flexible Power Options – Choose from 2000W, 2500W, 2800W, 3000W to perfectly match your load without overpaying for unused capacity.
· Motor Material Choice – Pure copper for best efficiency, lower heat, and longer life; aluminum for budget-friendly occasional use.
· Electric Start Available – Upgrade from recoil to electric start + maintenance-free battery – easy operation for everyone.
· Robust Engine – 168/168F/170F/172F series, mechanical governor, fuel-efficient and easy to service.
· Low Noise – Only 95-96 dB at 7m – quieter than most open-frame generators.
· Large Fuel Tank – 15L gasoline supports 6-10 hours of continuous run (depends on load).
· Flexible Voltage – Single-phase 220V or single/three-phase 220V/380V options available.
Competitive Advantages vs. Common Generators
Feature Ordinary Open-Frame Generator This Butterfly Series
Frame rigidity Basic welded square tube, prone to deformation Reinforced butterfly frame – 30% higher torsional strength
Power selection Fixed, no choice 4 precise power levels, built-to-order
Motor material Mostly aluminum (hidden) Transparent choice: copper or aluminum
Starting system Recoil only Recoil + optional electric start
Cooling & airflow Moderate Butterfly side panels increase intake area by ~15%
Maintenance access Requires full side panel removal Quick-open service port – tool-free oil & spark plug changes
Pain Point Solutions
Customer Pain Point Our Solution
Wrong power – either too weak or wasteful 2000/2500/2800/3000W precisely selectable – match your real load
Hard to pull-start, especially in winter or for elderly users Optional electric start – push button and go
Copper motor too expensive, aluminum might not last Clear pricing for both; extended warranty for copper option
Weak frame, easily scratched or bent during transport Butterfly frame with anti-impact corners, stackable design
Noise complaints from neighbors Optimized muffler & vibration pads – only 95dB@7m
