Native 220V / 380V Dual-Voltage Output — One Generator, Two Power Standards, Zero Transformer Cost
Feature:
The HH2516-A delivers 220V at 13.6A and 380V at 4.6A from the same machine—3,000W rated, 3,300W peak, 50Hz.
Benefit:
A typical construction site runs two parallel power systems: 220V for site lighting, tools, and worker accommodations, and 380V for small three-phase equipment—water pumps, hoists, and compressors. A single-voltage generator forces site managers to add a step-up transformer, which is an additional procurement line, an additional failure point, and an additional item your clients have to track in the field. The HH2516-A eliminates that cost entirely. For distributors, it also simplifies your product line: one SKU that closes deals across both residential-grade and industrial-grade power requirements without upselling the buyer to a larger, more expensive machine.
Evidence:
Both voltage outputs are tested against rated current specs during factory PAT testing. Nameplate values are measured values—certifiable and ready for inclusion in your local compliance documentation or project procurement tender responses.
Target buyers: Southeast Asia infrastructure contractors, Middle East project procurement offices, Sub-Saharan Africa equipment distributors.
Specify your voltage requirement at inquiry. Factory-configured options: 110V, 120V, 220V, 230V, 240V, 380V.
223cc 170F-2 4-Stroke Engine — 37% More Displacement Than Standard 168-Type Competitors
Feature:
Single-cylinder, 4-stroke 170F-2 engine. 223cc displacement. 7.5HP peak output. 10% power headroom above rated load (3,300W peak vs. 3,000W rated).
Benefit:
The majority of 3kW-class generators at this price point are built around the 168-type engine at 163cc. The displacement difference is not a marketing figure—it translates directly into surge capacity. When an inductive load (electric motor, pump, compressor) starts, it draws 3–6× its rated running current for a fraction of a second. A smaller-displacement engine either trips the overload protection or struggles to recover, producing voltage instability that damages connected equipment. The 223cc 170F-2 absorbs that inrush current without nuisance tripping. For rental fleet operators, a single overload complaint on a job site—leading to downtime, a service call, and a replacement unit—costs more in logistics and lost goodwill than the entire margin difference between a 163cc and a 223cc machine.
Evidence:
Sustained full-load performance verified through 4-hour continuous load testing at factory. 10% power headroom is built into the rated-to-peak design, not a burst specification.
Target buyers: Generator rental companies in Africa and Latin America; agricultural irrigation equipment suppliers; remote mining site operators.
Contoured Fuel Tank Profile — Rain Runs Off, Not In
Feature:
The fuel tank features a sculpted, contoured top surface with raised ridges and curved geometry rather than a flat-top design.
Benefit:
This is a field-reliability detail that never appears in a competitor's specification table—but shows up consistently in customer complaints from tropical and monsoon-climate markets. A flat-top fuel tank accumulates standing water during rainfall. Over time, that pooled water degrades the cap seal, infiltrates through the filler neck, contaminates the fuel-air mixture, and causes misfires or unplanned shutdowns. In high-rainfall markets—Southeast Asia, West Africa, Central America—this failure mode accounts for a disproportionate share of field complaints and warranty returns. The HH2516-A's contoured tank geometry creates natural drainage channels: rainwater flows laterally off the surface and away from the filler cap, eliminating the pooling risk at the source. For distributors in high-humidity markets, this is a concrete, demonstrable reliability advantage you can show clients with the physical product in hand—not a claim that requires a lab report.
Evidence:

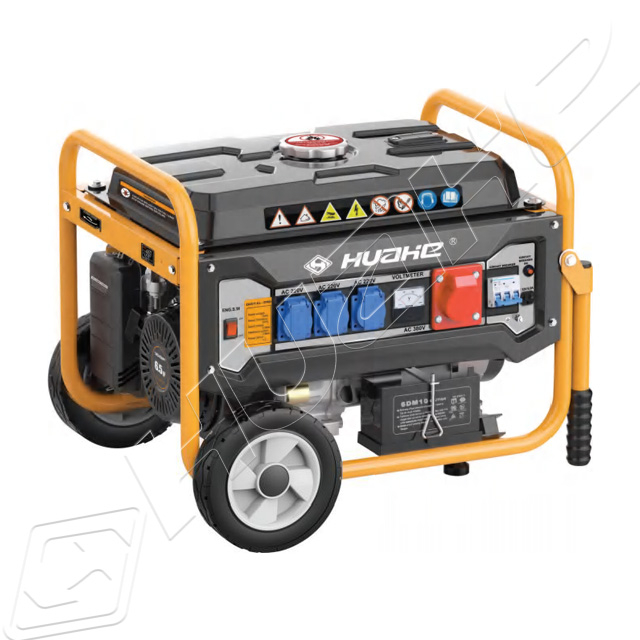

Fuel tank profile is visible in the product main image and verifiable on physical inspection. Design logic mirrors the drainage-first principle of IP-rated enclosures: active drainage outperforms passive sealing under sustained exposure.
Target buyers: Southeast Asia construction contractors operating through rainy seasons; West African mining equipment distributors; Latin American agricultural machinery dealers.
Recoil Start Standard / Electric Start Available on Custom Order — Match the Configuration to Your Market
Feature:
HH2516-A: recoil (pull) start as standard. HH2516-A1: recoil start plus factory-installed electric start motor and wiring harness, available as a custom configuration on order.
Benefit:
Recoil start is not a downgrade—it is the correct specification for the majority of field deployments in cost-sensitive and parts-scarce markets. Recoil start systems have no electrical dependencies, no battery to maintain, and are serviceable by any local mechanic with basic tools. For distributors in Africa, the Middle East, and rural Southeast Asia, this is the configuration that minimizes after-sales intervention and keeps your service cost per unit low. Electric start, by contrast, commands a meaningful price premium and opens access to buyer segments that recoil start cannot reach: aging operator demographics in Japan and Northern Europe where physical effort is a procurement consideration; cold-climate deployments where low-temperature viscosity makes pull-starting unreliable; and rental fleets where fast, consistent startup is part of the service-level agreement. By offering both configurations from the same factory, you can build a two-tier product strategy—standard SKU and premium SKU—without adding a second engine platform to your supplier relationship.
Evidence:
A1 electric start units are assembled and tested at the factory; the starter motor, solenoid, and wiring harness are pre-installed before shipment. No field installation is required on the importer or distributor side, eliminating the $20–35 per-unit local modification cost incurred when upgrading a recoil-only machine after import.
Target buyers: European outdoor equipment rental companies; Japanese emergency backup power distributors; high-altitude mining operators requiring single-key ignition.
Tell us your target market and end-use scenario. We'll recommend whether the standard recoil or custom electric-start configuration better matches your buyer's procurement expectations and operational environment.
15-Liter Tank + Large-Wheel Mobile Frame — 12+ Hours of Runtime, One Operator, Any Terrain
Feature:
15-liter gasoline tank. Large-diameter pneumatic wheels with high-strength yellow steel handle frame. Gross weight: 40kg. Footprint: 620×450×445mm.
Benefit:
At a reference consumption rate of approximately 1.2L/h under rated load, a full 15-liter tank delivers over 12 hours of continuous runtime—covering a complete overnight shift without a mid-cycle refueling stop. In markets where labor costs are significant (Western Europe, Australia, Gulf States), eliminating one refueling intervention per shift saves approximately 0.5 operator-hours per machine per day. Across a rental fleet of 20 units, that is 10 operator-hours per day in recovered labor that your clients pay for but currently spend on routine maintenance rather than productive work. The pneumatic-tire mobile frame extends that operational advantage to unpaved surfaces. Construction sites, agricultural fields, and mining access roads are not paved environments; small solid-rubber casters sink into mud or catch on rubble. The large-diameter inflated tires on the HH2516-A roll over standard site obstacles and absorb ground vibration, allowing a single operator to reposition the machine across a multi-point job site without mechanical assistance.
Evidence:
40kg gross weight confirmed on factory shipping documentation. Pneumatic wheel specification and frame construction are directly verifiable from product imagery.
Target buyers: Multi-station construction site operators; large outdoor event power suppliers; remote deployment scenarios where refueling logistics are expensive or infrequent.
Requesting bulk pricing? Provide your destination port and we will calculate a landed-cost estimate to support your margin analysis before you commit to volume.
Integrated Professional Control Panel — Euro and Industrial Three-Phase Sockets, Ready for IEC-Compliant Jobsites
Feature:
Control panel includes IEC-standard European 220V sockets (blue, IP44), industrial three-phase 380V socket (red, IEC 60309), circuit breaker, and voltmeter—arranged in a clearly labeled, ergonomic layout.
Benefit:
Distributors supplying European contractors, African infrastructure projects, or Asia-Pacific engineering firms will find that their clients' existing equipment cables plug directly into the HH2516-A without procurement of additional adapters or custom cable assemblies. The integrated circuit breaker provides automatic overload and short-circuit protection—a non-negotiable requirement in environments where power quality from parallel sources is variable and connected equipment is expensive. The IEC 60309 industrial socket is the globally recognized standard for temporary power distribution on construction sites; specifying it on your purchase order eliminates compatibility friction at the project delivery stage. The voltmeter provides real-time output monitoring, allowing site operators to detect load imbalance before it becomes an equipment failure.
Evidence:
Panel configuration is directly visible in the product main image (right-side panel area). IEC 60309 socket parts are available from global electrical supply chains—reducing distributor exposure to proprietary spare-part dependencies.
Target buyers: European construction site temporary power contractors; African multi-device parallel power distribution setups; Asia-Pacific project procurement offices with IEC compliance requirements.
Need a different socket standard (UK BS, Australian AS/NZS, North American NEMA)? Contact the factory—control panel output configuration is available as a single-batch customization without minimum order surcharge on most variants.
