2800 Watt Small Household Unleaded Gasoline Generator

Key Features

· IP23 Enclosure

   Sealed against solid objects ≥12.5mm (e.g., tools, gravel) and dripping water up to 60° angle. Unlike unrated generators, the HH2800-B01 can be used in light rain or dusty construction zones without immediate risk.

· TCI Digital Ignition

   No contact points to wear out. TCI automatically adjusts ignition timing based on engine RPM – 30% easier cold starts, reduced spark plug fouling, and longer service intervals.

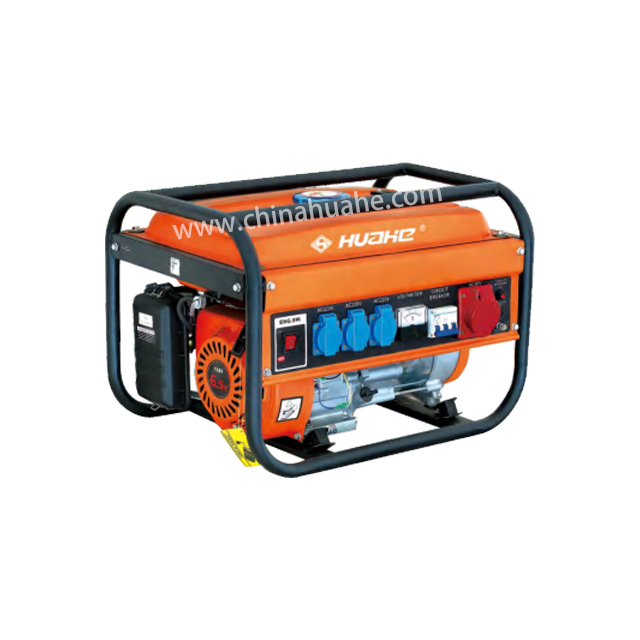

· 3+1 Hybrid Socket Panel

 · Three 220V/50Hz household sockets (shared 12.7A max) – for lights, fridge, rice cooker, etc.

 · One 380V three‑phase industrial socket (5A rated) – directly powers small three‑phase motors.

     Note: 220V and 380V loads combined must not exceed 2800W continuous.

· Strong HH170 Engine

   212cc displacement, 7.0HP, mechanical centrifugal governor – speed fluctuation under 5% from no‑load to full load, safe for sensitive electronics like computers or refrigerators.

· Dual Start System

   Standard recoil pull-start. Optional electric start + 12V battery (7Ah). With electric start, a three‑position rotary switch (Start/Run/Off) makes operation intuitive.

· Compact & Portable

   605×430×435mm, net weight 37kg. Comes with two swivel wheels and a folding handle – one person can easily tow it up a ramp.

· 94dB Low Noise

   Large muffler + engine vibration isolators. Measured 94dB at 7m – about 2-3dB quieter than average 2800W open‑frame generators, neighbor‑friendly for night emergency use.

Competitive Advantages vs. Typical Generators

Feature Typical 2800W Open‑Frame HH2800-B01

Protection rating None (below IP20) IP23 (drip & tool‑proof)

Ignition type Conventional magneto (contact points) TCI transistor ignition (auto timing)

Socket options 2~3 x 220V outlets only 3 x 220V + 1 x 380V industrial socket

Outdoor durability Afraid of rain & dust Can handle light rain & dusty sites

Cold start ease 3-5 pulls on average Usually 1-2 pulls (TCI + optimized carb)

Voltage stability ±8% ±5% (TCI + basic AVR inside)

Pain Point Solutions

Customer Pain Point This Product’s Solution

Need both 220V lighting and 380V pump on same site – bought two generators Single unit with three 220V sockets + one 380V industrial socket – switch loads without changing machines.

Generator left outside, afraid of rain damage IP23 protected – resists dripping water from 60° vertical. With splash‑proof socket covers, can work in light rain.

Old generator hard to start, pulls break TCI ignition + optional electric start – turn key or push button. Even recoil starts are easier.

Noise complaints from neighbors 94dB @7m, double‑chamber muffler – as quiet as it gets for an open‑frame.

Unstable voltage damages appliances TCI + digital governor keeps voltage change <8% from no‑load to full load; each socket has overload protection.
