Product Overview

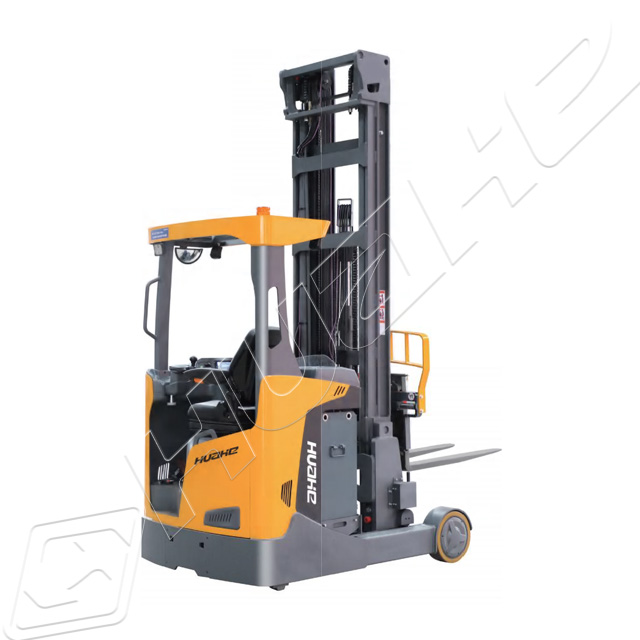

The CDD15K-E/N 2.0-ton electric reach truck is designed for high-density storage and narrow aisle applications.With a lifting height of up to 4050 mm and a compact turning radius of 1440 mm, it offers superior space utilization and efficiency in warehouses, distribution centers, and logistics operations.

FAQ

Q1: What is the maximum lifting height?
A1:Up to 4050 mm.
Q2: Can it operate in narrow aisles?
A2:Yes, the minimum aisle width for 800×1200 mm pallets is 2248 mm.
Q3: What type of battery does it use?
A3:It uses two 24V/105Ah batteries.
Q4: Is training required to operate this reach truck?
A4:Yes, we recommend proper training for safe and efficient operation.

Product Specification

	Model	Unit	CQD20-D
Parameter	Drive Mode	-	Electric
	Driving Mode	-	Sit-down Operation
	Rated Capacity	kg	2000
	Load Center	mm	600
	Front Overhang	mm	377
	Wheelbase	mm	1510
	Service Weight(include battery)	kg	4205
Wheel	Wheel Material	-	Polyurethane wheels
	Front Wheel Size	mm	343×140
	Rear Wheel Size	mm	340×114
	Front Wheel Track	mm	0
	Rear Wheel Track	mm	1146
Mast	Mast/Fork - Front/Rear Tilt Angle	°	2/4
	Height with Mast Retracted	mm	3390
	Free Lift Height	mm	2700
	Lift Height	mm	8000
	Maximum Mast Height during Operation	mm	8940
Specification	Overhead Guard Height	mm	2210
	Standing Height	mm	1000
	Leg Height	mm	360
	Overall Length	mm	2466
	Fork Length	mm	1396
	Overall Width	mm	1270/1260
Dimensions	Fork Size	mm	40×120×1070
	Fork Carriage Width	mm	928
	Outer Width of Forks	mm	708
	Inner Spacing of Legs	mm	900
	Forward Travel Distance	mm	600
	Ground Clearance at Bottom of Mast	mm	70
	Ground Clearance at Axle Center	mm	80
	Channel width,pallet 1000*1200	mm	2849
	Channel width,pallet 800*1200	mm	2899
	Vehicle Length	mm	1960
	Turning Radius	mm	1783
Performance	Travel Speed, Loaded/Unloaded	km/h	10/11
	Lift Speed, Loaded/Unloaded	m/s	0.29/0.45
	Lowering Speed, Loaded/Unloaded	m/s	0.5/0.5
	Forward Speed, Loaded/Unloading	m/s	0.12/0.12
	Gradeability, Loaded/Unloading	°	10/10
	Maximum Gradeability, Loaded/Unloaded	°	10/10
Motor and Battery	Drive Motor Power	kW	6.5
	Lifting Motor Power	kW	8.2
	Battery Voltage/Rated Capacity	V/Ah	48/500
	Battery Weight (±5%)	kg	870
Pressure	Operating Pressure	bar	160
Noise	Noise Level at Driver's Ear Complies with DIN 12053	dB(A)	65

Product Features
· Rated load capacity: 2000 kg
· Load center: 600 mm
· Standing operation with excellent visibility
· Lifting height options: up to 4050 mm
· Mast lowered height as low as 1840 mm
· Turning radius: 1440 mm
· Aisle width for 1000×1200 pallet: 2298 mm
· Travel speed: 4.3 km/h (loaded), 4.5 km/h (unloaded)
· Drive motor: 0.65 kW | Lifting motor: 2.2 kW
· Battery: 2×24V/105Ah

Highlights
· High lift capability up to 4050 mm
· Low mast profile for easy access into low-clearance areas
· Compact design for narrow aisle operation
· Energy-efficient AC drive and lift systems

Competitive Advantages
· Best-in-class turning radius and aisle width performance
· Stand-on operator compartment improves productivity over pedestrian models
· Dual 24V battery system supports extended shift operation
· Multiple mast options for versatile high-lift applications

Pain Points & Solutions

Pain Point: Limited storage density in narrow aisles.
Solution: With a minimum aisle width of 2248 mm for 800×1200 pallets, this reach truck maximizes storage density.
Pain Point: Difficulty handling loads in high-level racking.
Solution: Lifting height up to 4050 mm allows easy access to high-level storage.
Pain Point: Short battery life impacting operation.
Solution: High-capacity 2×24V/105Ah battery provides long-lasting power for multiple shifts.

2.0 Ton Forward-moving Electric Forklift
