Product Overview

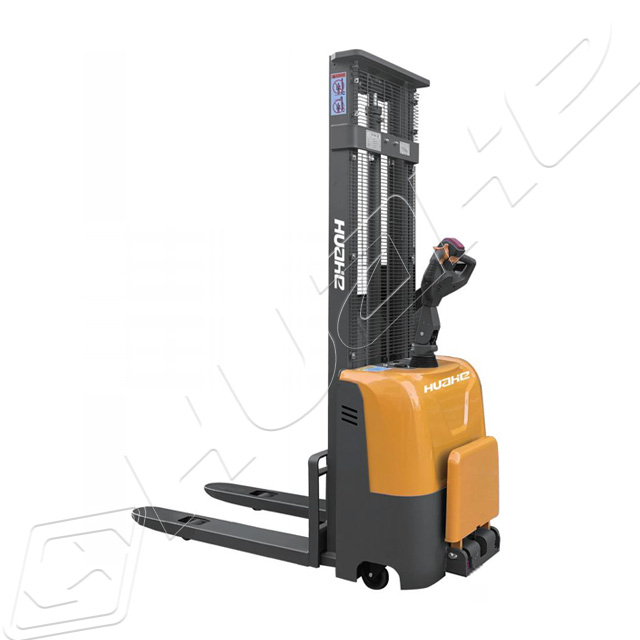

The CDD15K-E/N is a 1.5-ton electric stand-on pallet stacker designed for efficient and ergonomic material handling in narrow aisles and compact spaces. With a lifting height of up to 3000 mm and a compact turning radius of 1440 mm, this stacker ensures high productivity and ease of operation in warehouses, factories, and logistics centers.

FAQ
Q1: What is the maximum lifting height?
A1: Up to 3000 mm.
Q2: Can it be used in narrow aisles?
A2: Yes, the minimum required aisle width for an 800×1200 mm pallet is 2248 mm.
Q3: What type of battery does it use?
A3: It uses two 24V/105Ah batteries.
Q4: Is training required to operate this stacker?
A4: Yes, basic operational training is recommended for safety and efficiency.

Product Specification

	Model	Unit	CDD15K-E/N
Parameter	Driving Mode	-	Electric
	Operation Form	-	Standing
	Rated Capacity	kg	1500
	Load Centre	mm	600
Weight	Total Weight(with Battery)	kg	560
Wheel	Steering/Bearing Tyres Material	-	PU
Dimensions	Mast Lowered Height	mm	2090/1840/2090/2240/2340
	Lifting Height	mm	1600/2500/3000
	Mast Extended Height	mm	2090/3060/3560/3860/4050
	Mast Down Height	mm	90
	Fork Length	mm	650
	Fork Size	mm	60/142/1150(1070)
	Fork Width	mm	300-695
	Turning Radius	mm	1440
	Overall Length with Forks	mm	1748(1150 forks)/1668(1070 forks)
	Overall Width	mm	800
	Aisle Width for Pallet 1000×1200	mm	2298
	Aisle Width for Pallet 800×1200	mm	2248
Performance	Travel Speed(laden/unladen)	km/h	4.3/4.5
	Gradeability Speed(laden/unladen)	%	6/15
Motor and Battery	Drive Motor Output	kW	0.65
	Lifting Motor Output	kW	2.2
	Battery Voltage/Capacity	V/Ah	2×24/105

Product Features
· Rated load capacity: 1500 kg
· Load center: 600 mm
· Stand-on operation for better visibility and comfort
· Lifting height options: 1600/2500/3000 mm
· Compact design with a turning radius of only 1440 mm
· PU wheels for smooth and quiet operation
· Travel speed: 4.3 km/h (loaded), 4.5 km/h (unloaded)
· Battery: 2×24V/105Ah

Highlights
· Low mast lowered height (from 1840 mm) for easy entry into containers and low-clearance areas
· Excellent maneuverability in tight spaces
· Energy-efficient dual motor system (0.65 kW drive, 2.2 kW lift)
· Multiple mast height options for versatile use

Competitive Advantages
· Smaller turning radius and narrower aisle requirements compared to similar models
· Stand-on design improves operator efficiency over pedestrian-style stackers
· Dual battery system provides longer operation time
· Lower overall height when mast is retracted for enhanced versatility

Pain Points & Solutions
Pain Point1: Limited space in narrow aisles.
Solution1: With a turning radius of 1440 mm and aisle width as low as 2248 mm, this stacker operates efficiently in tight spaces.
Pain Point2: Low clearance in storage areas or containers.
Solution2: Mast lowered height starts from 1840 mm, allowing access to low-ceiling environments.
Pain Point3: Short battery life.
Solution3: Equipped with 2×24V/105Ah batteries for extended use without frequent charging.
